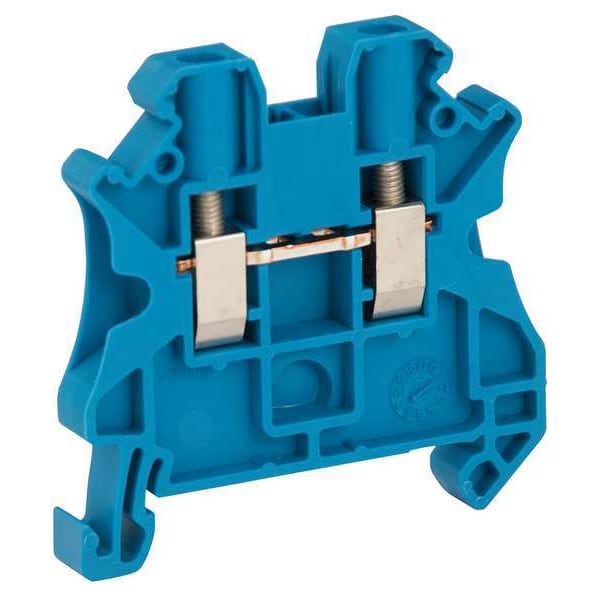

Terminal Block, Pass-Through, 1 Pole, 30 A, 1,000 V AC, 10 AWG, Screw Termination, Blue

  • Mfr # NSYTRV42BL

  • Zoro # G5240277

CAD Available
product price:
$
1.79
/ea

Key Features

CAD Drawing
Terminal Block Type
Pass-Through
Mounting Type
DIN
Connection Type
Screw Clamp
Number of Poles
1
Number of Tiers
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
NSYTRV42BL
Zoro #
G5240277
UPC #
785901943587
Country of Origin
China

Dimensions

For Minimum Wire Size
26 AWG
For Maximum Wire Size
10 AWG
Channel Size
35mm
Overall Width
0.24 in
Overall Length
1.88 in
Strip Length
11/32 in
Overall Depth
1.88 in
Termination Screw Size
M3
For Channel Rail Size
35 mm
Wire Stripping Length
9 mm
Wire Rope Length
1.88 in
Length
1.88 in

Details

Item
Terminal Block
Terminal Block Type
Pass-Through
Mounting Type
DIN
Connection Type
Screw Clamp
Number of Poles
1
Number of Tiers
2
Current
30 A
Maximum Voltage
1,000 V AC
Circuit Protection Type
None
Termination Style
Screw
For Conductor Material
Copper
For Conductor Type
Solid, Stranded
Housing Color
Blue
Standards
ATEX, CSA, CURus, DNV, GL, IECEx, LR, UL, VDE
Pieces per Foot
50
Number of Connections
2
End Barrier
Mfr. No. NSYTRAP22BL
Block Material
Polyamide 6/6
Temp. Range
-76 Degrees to 266 Degrees F
Material
polyamide 6/6 insulating case || copper alloy connector and screw || copper alloy commoning link || chromium-nickel steel spring
Terminal Material
Copper
Torque
7 lb-in
Housing Material
Polyamide 6/6
UL 94 Flammability Rating
V-0
RoHS Compliant
Yes
Minimum Operating Temperature
-40 Degrees F
2-Pole Jumper Compatibility
23NY20
Maximum Operating Temperature
266 Degrees F
Tool Type
connection screwdriver || disconnection screwdriver
Flame Retardance
V0 0.8 mm UL 94
Dielectric Constant
3.7 at 1 MHz
Product Compatibility
Spacial enclosures
Terminal Block Level
1
Range Compatibility
Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
Device Short Name
TRV
Surface Resistance
1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
Cable Cross Section
0.14-6 mm², solid with cable end || 0.2-4 mm², flexible with cable end || 0.2-6 mm², solid without cable end || 0.2-6 mm², flexible without cable end
Nominal Cross Section
4 mm²
[Ue] Rated Operational Voltage
1000 V EN/IEC 60947-7-1 || 600 V CSA || 690 V ATEX Exe II Ex II 2 GD || 600 V cURus
Dielectric Loss
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
Number Of Terminals
2
Resistivity
10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
Product Name
Linergy TR
Connection Position
sideways
Number Of Measurement Input
2
Ambient Air Temperature For Operation
-40-130°C IEC 60216-1 || -40-130°C VDE 0304-T21
Creep Resistance
500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
Range
Linergy
Tightening Torque
0.6-0.8 N.m
Dielectric Strength
1000 V IEC 60243-1
CAD Available
Yes
6-Pole Jumper Compatibility
NSYTRAL45

Description

Terminal Block, Circuit Protection Type None, Connection Type Screw Clamp, Current 30 A, For Minimum Wire Size 26 AWG, For Maximum Wire Size 10 AWG, Housing Color Blue, Maximum Voltage 1,000 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 2, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 1.88 in, Overall Length 1.88 in, Overall Width 0.24 in, Standards ATEX, CSA, CURus, DNV, GL, IECEx, LR, UL, VDE, Terminal Block Type Pass-Through
