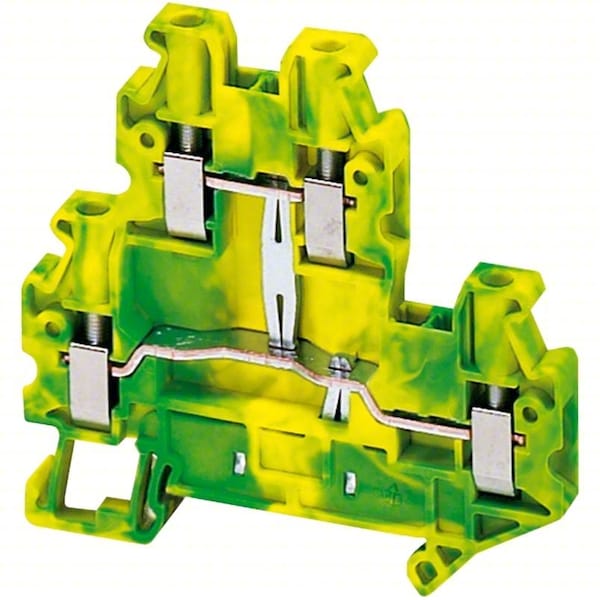

Terminal Block, Screw-On, Green; Yellow
Mfr # NSYTRV44DPE
Zoro # G221681283
product price:Â
$
31.89
/ea
Sold in multiples of 50 for $1,594.50
Key Features
Terminal Block Type
Protective Earth
Mounting Type
Clip-On
Connection Type
Screw-On
Housing Color
Green, Yellow
Standards
CSA, DNV, EU RoHS Directive Compliant, GL, LR, REACH Regulation, UL
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- NSYTRV44DPE
- Zoro #
- G221681283
- UPC #
- 3606480532054
- Country of Origin
- United States
- Item
- Terminal Block
- Terminal Block Type
- Protective Earth
- Mounting Type
- Clip-On
- Connection Type
- Screw-On
- Housing Color
- Green, Yellow
- Standards
- CSA, DNV, EU RoHS Directive Compliant, GL, LR, REACH Regulation, UL
- Material
- Polyamide 6/6: Insulating Case
- Temp. Range
- -40 to 130 °C
- Number of Connections
- 2
- Number of Tiers
- 1
- For Conductor Material
- Copper
- Number of Poles
- 2
- Series
- Linergy
- For Conductor Type
- Solid, Stranded
- Torque
- 7 lb-in
- Housing Material
- Polyamide 6/6
- UL 94 Flammability Rating
- V-0
- Compatible with Product Type
- Spacial Enclosures
- Circuit Protection Type
- None
- Minimum Operating Temperature
- -40 Degrees F
Description
Terminal Block, Circuit Protection Type None, Connection Type Screw-On, Current Not Applicable, For Minimum Wire Size 26 AWG, For Maximum Wire Size 10 AWG, Housing Color Green, Yellow, Maximum Voltage Not Applicable, Mounting Type DIN Rail, Number of Poles 2, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 2.6 in, Overall Length 2.8 in, Overall Width 0.2 in, Standards CSA, DNV, EU RoHS Directive Compliant, GL, LR, REACH Regulation, UL
