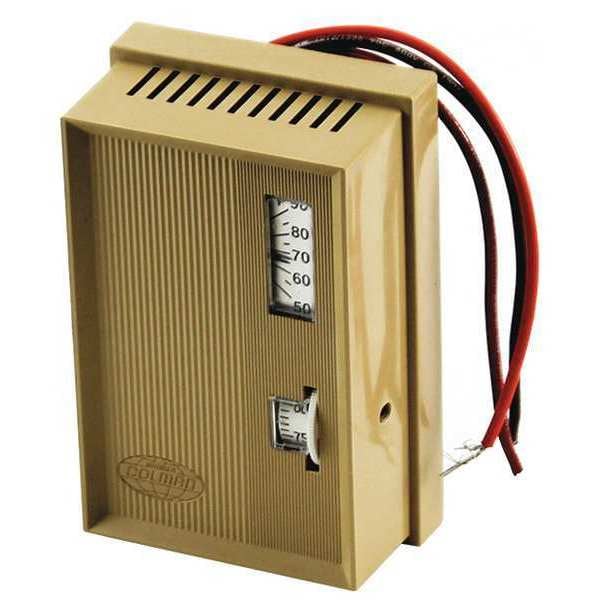

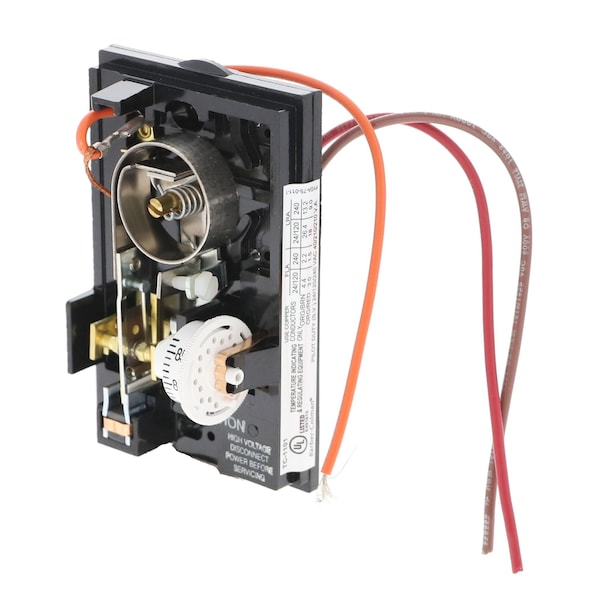

Schneider Electric Thermostat, 55-85 Degrees F, Speed T TC-1101 - main

Thermostat, 55-85 Degrees F, Speed T

  • Mfr # TC-1101

  • Zoro # G2492835

product price: $255.99
/ea
Free Shipping & Returns

Key Features

For Use With
Heating/Cooling Systems
Voltage
24V AC
Includes
(2) Dial Stop Pins to Limit Setpoint Range, (2) Mounting Screws, 5/64 in Allen Head Screw for Securing Cover to Thermostat Base, 5/64 in Allen Wrench, Blank Cover Insert, Cover Insert with Setpoint Dial Output
Phase
1 and 3
Standards
CSA, UL
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TC-1101
Zoro #
G2492835
UPC #
094727636833
Country of Origin
United States

Dimensions

Overall Depth
4 3/8 in
Overall Height
4 3/8 in
Lead Length
6 in
Overall Width
2 7/8 in

Details

Item
Thermostat, 55-85 Degrees F, Speed T
For Use With
Heating/Cooling Systems
Voltage
24V AC
Includes
(2) Dial Stop Pins to Limit Setpoint Range, (2) Mounting Screws, 5/64 in Allen Head Screw for Securing Cover to Thermostat Base, 5/64 in Allen Wrench, Blank Cover Insert, Cover Insert with Setpoint Dial Output
Phase
1 and 3
Standards
CSA, UL
Switch Type
SPDT
Application
Heat and Cool
Control Type
Selector Dial
Includes Batteries
Yes
Contact Rating
24/120V AC; 240V AC
Electrical Connection Type
Hardwired
Compatible System Type
Fan Coils Low/Line Voltage On-Off Control, Fans Motor Starters, Two-Position Electric Actuators
System Settings
On-Off
Contact Type
Snap Action
System/Fan Settings
On-Off, Low-On-Off
Maximum Control Temperature
85 Degrees F
Temperature Control Range
55 Degrees to 85 Degrees F
Temperature Limiting
Yes
Minimum Control Temperature
55 Degrees F
Operating Temperature Range
55 to 85 Degrees F
Temperature Differential
2 Degrees F
Pilot Duty Rating
210 VA @ 120/240V AC, 40 VA @ 24V AC
Fan Settings
Low-On-Off
Housing Color
Beige
Temperature Scale
Fahrenheit
Full Load Amps @ 240V AC
2.2 A
Thermostat Type
Line Voltage, Low Voltage
Number of Switches
1
Number of Poles
1
Shape
Rectangle
Temperature Readout
Yes
Locked Rotor Amps @ 240V
13.2 A
Housing Material
Plastic
Locked Rotor Amps @ 120V
4.4 A
Full Load Amps @ 120V AC
4.4 A

Description

Fan Coil Thermostat, Number of Switches 1, Voltage 24V AC, 4.4 A, 13.2 A, Includes (2) Dial Stop Pins to Limit Setpoint Range, (2) Mounting Screws, 5/64 in Allen Head Screw for Securing Cover to Thermostat Base, 5/64 in Allen Wrench, Blank Cover Insert, Cover Insert with Setpoint Dial Output
