Shop SCHNEIDER ELECTRIC

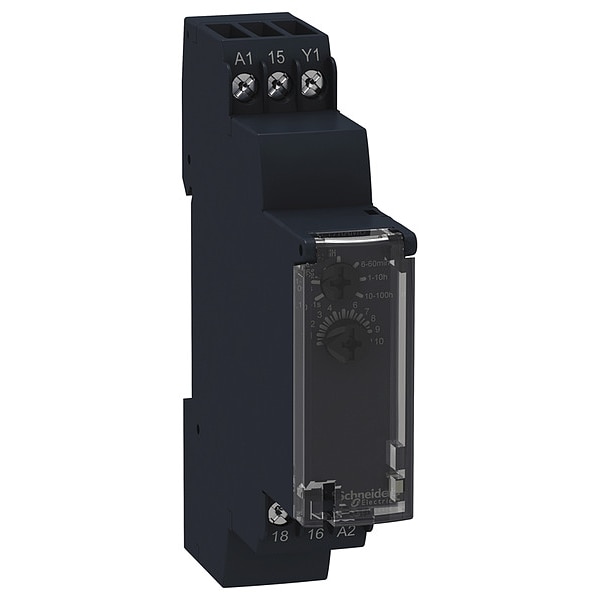

Time Delay Relay, Square, Interval, 1 Functions 240V AC

  • Mfr # RE17LHBM

  • Zoro # G3462944

product price:  $50.89
/ea

Key Features

Delay Function
Interval
Number of Delay Functions
1
Minimum Time Setting
1 sec
Maximum Time Setting
100 hr
Base Shape
Square
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RE17LHBM
Zoro #
G3462944
UPC #
785901002901
Country of Origin
Indonesia

Dimensions

Overall Height - Relay
3.54 in
Body Width
0.69 in
Body Height
3.54 in
Overall Depth
3.54 in
Body Depth
2.84 in

Details

Item
Time Delay Relay
Delay Function
Interval
Number of Delay Functions
1
Minimum Time Setting
1 sec
Maximum Time Setting
100 hr
Base Shape
Square
Number of Pins
6
Coil Voltage
240V AC
Current Rating
0.7 A
Contact Rating (AC)
0.7 A @ 250V
Adjustment Method
Rotary Dip Switch
Input Voltage
24 to 240V AC
Input or Control Voltage Range
0.85...1.1 Us
Type of Output
Solid State
Electrical Connection
Screw Terminal
Status Indicator
LED
Standards
2004/108/EC, 2006/95/EC, CSA Certified, CULus Listed, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, GL, IEC 61812-1
IP Rating
IP20; IP40; IP50
Power Consumption
3 VA
Operating Time Accuracy
+/-0.5%
Sealing
Sealed
Weight
2.4 oz
Mounting Style
DIN Rail
Reset Method
Time-Limit Reset
Maximum Switching Voltage
250V AC
Frequency
50/60 Hz
Minimum Operating Temperature
-4 Degrees F
Electrical Operating Durability
100,000,000
Maximum Operating Temperature
140 Degrees F
Contact Form
Solid State

Description

Time Delay Relay, Adjustment Method Rotary Dip Switch, Base Shape Square, Coil Voltage 240V AC, Contact Form Solid State, Contact Rating (AC) 0.7 A @ 250V, Contact Rating (DC) Not Applicable, Current Rating 0.7 A, Number of Delay Functions 1, Delay Function Interval, Electrical Connection Screw Terminal, IP Rating IP20; IP40; IP50, Input Voltage 24 to 240V AC, Minimum Time Setting 1 sec, Maximum Time Setting 100 hr, Number of Pins 6, Sealing Sealed, Mounting Style DIN Rail, Body Depth 2.84 in
