  13. Time Delay Relay, Square, Interval, 1 Functions 240V AC, SPDT

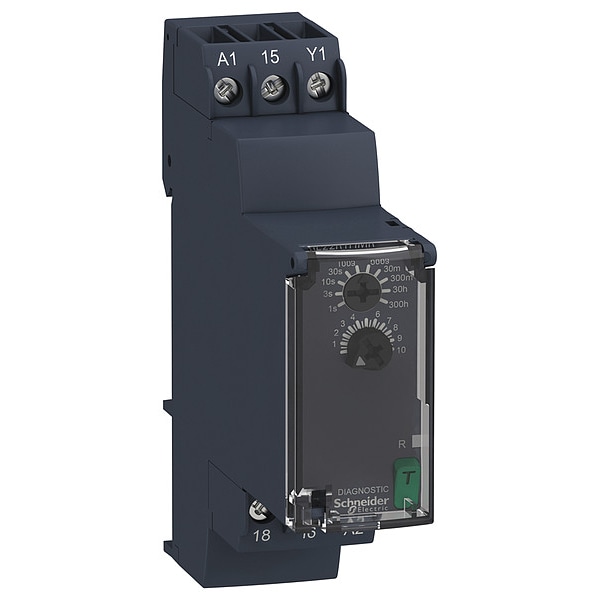

Schneider Electric Time Delay Relay, Square, Interval, 1 Functions 240V AC, SPDT RE22R1HMR - main

Time Delay Relay, Square, Interval, 1 Functions 240V AC, SPDT

  • Mfr # RE22R1HMR

  • Zoro # G3463233

product price: $66.73
/ea

Key Features

Delay Function
Interval
Number of Delay Functions
1
Minimum Time Setting
0.05 sec
Maximum Time Setting
300 hr
Base Shape
Square
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RE22R1HMR
Zoro #
G3463233
UPC #
785901465676
Country of Origin
Indonesia

Dimensions

Overall Height - Relay
3.54 in
Body Height
3.54 in
Body Width
0.89 in
Body Depth
2.87 in
Overall Depth
3.54 in

Details

Item
Time Delay Relay
Delay Function
Interval
Number of Delay Functions
1
Minimum Time Setting
0.05 sec
Maximum Time Setting
300 hr
Base Shape
Square
Number of Pins
6
Coil Voltage
240V AC
Current Rating
8 A
Contact Form
SPDT
Contact Rating (AC)
8 A @ 250V
Contact Rating (DC)
8 A @ 24V
Min. On/Off Pulse
100 ms with load in parallel || 30 ms
Input or Control Voltage Range
0.85...1.1 Us
Standards
IEC 61812-1, UL 508
Type of Output
relay
Contact Material
Cadmium Free
Status Indicator
LED
Electrical Connection
Screw Terminal
Adjustment Method
Diagnostic Button, Rotary Dip Switch
Input Voltage
24 to 240V AC/DC
Operating Time Accuracy
+/-0.5%
Mechanical Operating Durability
10,000,000
Electrical Operating Durability
100,000
Minimum Operating Temperature
-4 Degrees F
Maximum Operating Temperature
140 Degrees F
Mounting Style
DIN Rail
Frequency
50/60 Hz
Weight
3.52 oz
IP Rating
IP20; IP40; IP50
Power Consumption
3 VA
Sealing
Sealed
Maximum Switching Voltage
250V AC

Description

Time Delay Relay, Adjustment Method Diagnostic Button, Rotary Dip Switch, Base Shape Square, Coil Voltage 240V AC, Contact Form SPDT, Contact Rating (AC) 8 A @ 250V, Contact Rating (DC) 8 A @ 24V, Current Rating 8 A, Number of Delay Functions 1, Delay Function Interval, Electrical Connection Screw Terminal, IP Rating IP20; IP40; IP50, Input Voltage 24 to 240V AC/DC, Minimum Time Setting 0.05 sec, Maximum Time Setting 300 hr, Number of Pins 6, Sealing Sealed, Mounting Style DIN Rail
