Shop SCHNEIDER ELECTRIC

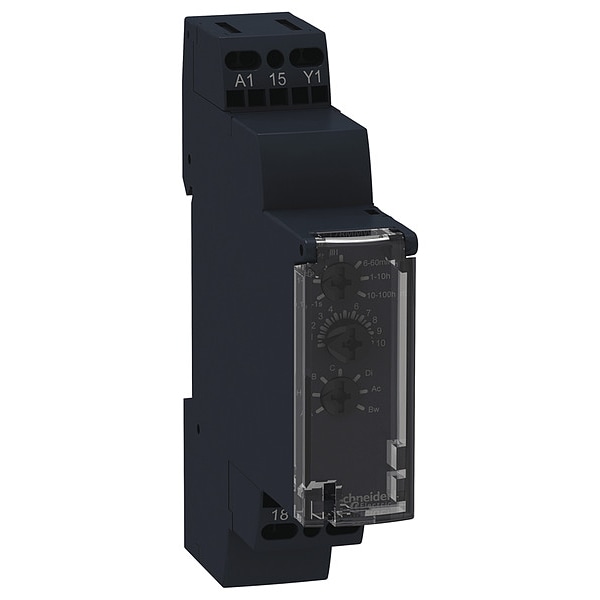

Time Delay Relay, Square, Interval, Off Delay, On/Off Delay, Power On Delay, Symmetrical Flashing

  • Mfr # RE17RMJU

  • Zoro # G3462628

product price:  $88.99
/ea

Key Features

Delay Function
Interval, Off Delay, On/Off Delay, Power On Delay, Symmetrical Flashing
Number of Delay Functions
5
Minimum Time Setting
1 sec
Maximum Time Setting
100 hr
Base Shape
Square
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RE17RMJU
Zoro #
G3462628
UPC #
785901284291
Country of Origin
Indonesia

Dimensions

Overall Height - Relay
3.54 in
Depth
72 mm
Body Depth
2.83 in
Overall Depth
3.54 in
Body Height
3.54 in
Body Width
0.69 in

Details

Item
Time Delay Relay
Delay Function
Interval, Off Delay, On/Off Delay, Power On Delay, Symmetrical Flashing
Number of Delay Functions
5
Minimum Time Setting
1 sec
Maximum Time Setting
100 hr
Base Shape
Square
Number of Pins
6
Coil Voltage
12V AC/DC
Current Rating
8 A
Contact Form
SPDT
Contact Rating (AC)
8 A @ 250V
Contact Rating (DC)
8 A @ 12V
Type of Output
relay
Status Indicator
LED
Input or Control Voltage Range
0.9...1.2 Us
Standards
2004/108/EC, 2006/95/EC, CSA Certified, CULus Listed, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, GL, IEC 61812-1
Adjustment Method
Rotary Dip Switch
Contact Material
Cadmium Free
Input Voltage
12V AC/DC
Electrical Connection
Screw Terminal
Maximum Operating Temperature
140 Degrees F
Operating Time Accuracy
+/-0.5%
Electrical Operating Durability
100,000
Sealing
Sealed
Reset Method
Time-Limit Reset
Frequency
50/60 Hz
Power Consumption
0.7 VA
Mounting Style
DIN Rail
Minimum Operating Temperature
-4 Degrees F
Weight
2.4 oz
Maximum Switching Voltage
250V AC
Mechanical Operating Durability
10,000,000
IP Rating
IP20; IP40; IP50

Description

Time Delay Relay, Adjustment Method Rotary Dip Switch, Base Shape Square, Coil Voltage 12V AC/DC, Contact Form SPDT, Contact Rating (AC) 8 A @ 250V, Contact Rating (DC) 8 A @ 12V, Current Rating 8 A, Number of Delay Functions 5, Delay Function Interval, Off Delay, On/Off Delay, Power On Delay, Symmetrical Flashing, Electrical Connection Screw Terminal, IP Rating IP20; IP40; IP50, Input Voltage 12V AC/DC, Minimum Time Setting 1 sec, Maximum Time Setting 100 hr, Number of Pins 6, Sealing Sealed
