Shop SCHNEIDER ELECTRIC

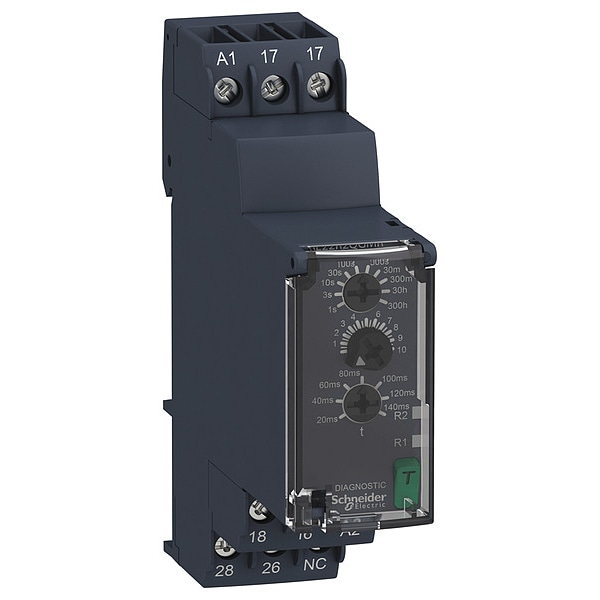

Time Delay Relay, Square, Star-Delta, 2 Functions 24 to 240V AC/DC, DPDT

  • Mfr # RE22R2QGMR
  • Zoro # G3460957
product price:
$
104.99
/ea
Free Shipping & Returns

Key Features

Delay Function
Star-Delta
Number of Delay Functions
2
Minimum Time Setting
0.05 sec
Maximum Time Setting
300 hr
Base Shape
Square
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
RE22R2QGMR
Zoro #
G3460957
UPC #
785901493778
Country of Origin
Indonesia
Item
Time Delay Relay
Delay Function
Star-Delta
Number of Delay Functions
2
Minimum Time Setting
0.05 sec
Maximum Time Setting
300 hr
Base Shape
Square
Number of Pins
6
Coil Voltage
24 to 240V AC/DC
Current Rating
8 A
Contact Form
DPDT
Contact Rating (AC)
8 A @ 250V
Contact Rating (DC)
8 A @ 24V
Standards
IEC 61812-1, UL 508
Contact Material
Cadmium Free
Type of Output
relay
Input or Control Voltage Range
0.85...1.1 Us
Status Indicator
LED
Electrical Connection
Screw Terminal
Input Voltage
12 to 240V AC/DC
Adjustment Method
Diagnostic Button, Rotary Dip Switch
Power Consumption
3 VA
Sealing
Sealed
Minimum Operating Temperature
-4 Degrees F
Frequency
50/60 Hz
Operating Time Accuracy
+/-0.5%
Mounting Style
DIN Rail
Electrical Operating Durability
100,000
Mechanical Operating Durability
10,000,000
Maximum Switching Voltage
250V AC
Maximum Operating Temperature
140 Degrees F
Weight
3.68 oz
IP Rating
IP20; IP40; IP50

Dimensions

Overall Height - Relay
3.54 in
Overall Depth
3.54 in
Body Depth
2.87 in
Body Width
0.89 in
Body Height
3.54 in

Description

Time Delay Relay, Adjustment Method Diagnostic Button, Rotary Dip Switch, Base Shape Square, Coil Voltage 24 to 240V AC/DC, Contact Form DPDT, Contact Rating (AC) 8 A @ 250V, Contact Rating (DC) 8 A @ 24V, Current Rating 8 A, Number of Delay Functions 2, Delay Function Star-Delta, Electrical Connection Screw Terminal, IP Rating IP20; IP40; IP50, Input Voltage 12 to 240V AC/DC, Minimum Time Setting 0.05 sec, Maximum Time Setting 300 hr, Number of Pins 6, Sealing Sealed, Mounting Style DIN Rail
