Display Type
TFT Color LCD
Port Type
USB 2.0, USB-Mini B
Special Features
Display of Text Messages, Graphic Objects and Synoptic Views, Control and Con¿guration of Data
For Use With
Allen-Bradley, Omron and Other Automation, PLC and Drives, Schneider Electric Modicon, Siemens
Product Or Component Type

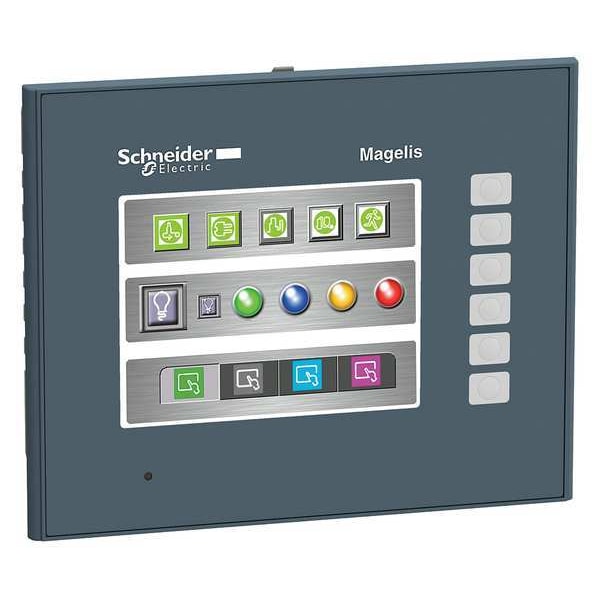

advanced touchscreen panel
Supply Voltage Limits
19.2-28.8 V
Maximum Power Consumption In W
5.2 W when power is not supplied to external devices || 4.2 W when backlight is OFF || 4.3 W when backlight is dimmed || 9.6 W
Software Designation
Vijeo Designer configuration software >= V6.1
Integrated Connection Type
COM1 serial link RJ45 RS232C/RS485 2400...115200 bps || COM1 serial link RJ45 RS232C/RS485 187.5 kbps Siemens MPI || Ethernet RJ45 10BASE-T/100BASE-TX || Ethernet RJ45 IEEE 802.3 || USB 2.0 type A || USB 2.0 type mini B
Vibration Resistance
3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2 || 1 gn 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2
Downloadable Protocols
Schneider Electric Modicon Modbus || Schneider Electric Modicon Uni-TE || Schneider Electric Modicon Modbus Plus || Schneider Electric Modicon FIPWAY || Mitsubishi Melsec third party protocols || Omron Sysmac third party protocols || Rockwell Automation Allen-Bradley third party protocols || Siemens Simatic third party protocols || Schneider Electric Modicon Modbus TCP
Ambient Air Temperature For Storage
-20-60°C
Memory Description
flash EPROM, 96 MB
Touch Panel
resistive film, 1000000 cycles
Resistance To Electrostatic Discharge
6 kV contact discharge IEC 61000-4-2 level 3
Data Backed Up
512 kB internal RAM SRAM)
Display Colour
65536 colours
Nema Degree Of Protection
NEMA 4X front panel (indoor use)
Brightness
16 levels by touch panel || 16 levels by software
[Us] Rated Supply Voltage
24 V DC
Backlight Lifespan
50000 hours white 25°C
Character Font
Chinese (simplified Chinese) || Korean || Taiwanese (traditional Chinese) || Japanese (ANK, Kanji) || ASCII (European characters)
Terminal Type
touchscreen display
Fixing Mode
by 4 screw clamps
Data Storage Equipment
SD card, <= 32 GB || SDHC card, <= 32 GB
Product Certifications
KCC || cULus || C-tick || CE || UKCA || UKEX
Battery Type
lithium internal RAM 100 days 5 day(s) 10 year(s)
Relative Humidity
10-90 % without condensation
Touch Sensitive Zone
1024 x 1024
Shock Resistance
147 m/s² 3 chocks in each direction X, Y and Z EN/IEC 61131-2
Product Mounting
flush mounting
Ip Degree Of Protection
IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel)
Type Of Cooling
natural convection
Local Signalling
status LED green, steady offline || status LED green, steady operating || status LED orange, flashing software starting up || status LED red, steady power supply (ON) || status LED clear, faded power supply (OFF)
Standards
IEC 61000-6-2 || UL 508 || EN 61131-2
Control Button Type
6 operation defined using Vijeo Designer push-button key F1...F6
Display Resolution
320 x 240 pixels QVGA
Ambient Air Temperature For Operation
0-50°C
Operating Altitude
< 6561.68 ft (2000 m)
Touchscreen Technology
Resistive
Pixel Resolution
320 x 240 Pixels
Communication Protocol
Modbus TCP
Compatible with Series
Magelis GTO
Compatible Product Type
Programable Logic Computer Drives, Programable Logic Computers
Features
Multicolor Status LED
Compatible with Brand
Allen-Bradley, Mitsubishi, Omron, Rockwell Automation, Schneider, Siemens
