  11. Touch Panel Screen 5IN7 Color

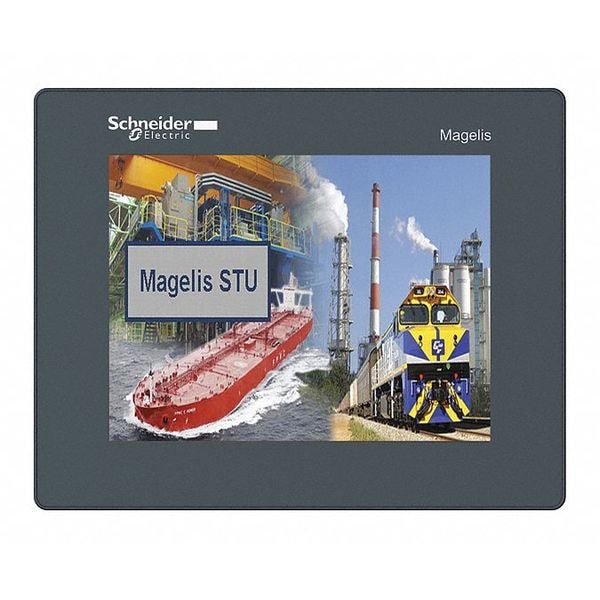

Schneider Electric Touch Panel Screen 5IN7 Color HMISTU855 - main

Touch Panel Screen 5IN7 Color

  • Mfr # HMISTU855

  • Zoro # G0563711

product price: $1,122.99
/ea
Free Shipping & Returns

Key Features

Features
22 mm Diameter Panel Cut-Out, Monochrome Screen
Width
163 mm
Height
129.15 mm
Depth
56.5 mm
Standards
UL 1604 || FCC Class A || IEC 61000-6-2 || EN 61131-2 || UL 508
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HMISTU855
Zoro #
G0563711
UPC #
785901691082
Country of Origin
China

Dimensions

Width
163 mm
Height
129.15 mm
Depth
56.5 mm
Display Size
5.7 inch

Details

Item
Touch Panel Screen
Features
22 mm Diameter Panel Cut-Out, Monochrome Screen
Standards
UL 1604 || FCC Class A || IEC 61000-6-2 || EN 61131-2 || UL 508
Upgradeability
Upgradeable through digital modules and upgraded components
Brightness
16 levels
Inrush Current
30 A
Vibration Resistance
+/- 3.5 mm 5-9 Hz) IEC 60068-2-6 || 1 gn 9-150 Hz) IEC 60068-2-6
Memory Description
application memory 16 MB || back up of data 64 kB
Shock Resistance
15 gn 11 msIEC 60068-2-27
Integrated Connection Type
1 USB 2.0 type mini B || 1 USB 2.0 type A || COM1 serial link - female RJ45 - RS232C/RS485 <= 115.2 kbits/s) || power supply - removable screw terminal block || 1 Ethernet - RJ45
Product Certifications
UL class 1 Div2 T4A ou T5 || C-tick || cULus || Marine || UKCA
Software Designation
Vijeo Designer
Power Consumption In W
6.8 W
Nema Degree Of Protection
NEMA 4X front panel indoor use)
Marking
with Schneider logo || CE
Number Of Pages
limited by internal memory capacity
Downloadable Protocols
Uni-TE || Modbus TCP/IP || third party protocols || Modbus
Display type
QVGA TFT colour touchscreen
Operating Altitude
<= 6561.68 ft (2000 m)
Backlight Lifespan
50000 hours
Enclosure Material
PC/PBT and PAA
Ambient Air Temperature For Operation
0-50°C
Relative Humidity
0-85 % without condensation
Realtime Clock
access to the PLC real-time clock
Operating System
Harmony
Supply
external source
Supply Voltage Limits
20.4-28.8 V
Display Resolution
320 x 240 pixels QVGA
Ip Degree Of Protection
IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel)
Processor Name
CPU ARM9
Touch Panel
analogue
Product Or Component Type
touch panel screen
[Us] Rated Supply Voltage
24 V DC
Processor Frequency
333 MHz
Display Colour
65536 colours
Fixing Mode
Ø 22 mm hole
Immunity To Microbreaks
7 ms
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Ambient Air Temperature For Storage
-20-60°C
Character Font
Taiwanese (traditional Chinese); Japanese (ANK, Kanji); Chinese (simplified Chinese); ASCII; Korean
Product Type
Touch Panel

Description

Touch Panel Screen
