  11. Tower Light Assembly, 24V, Red, 60 mm Dia., 120 13/16 mm Height, LED

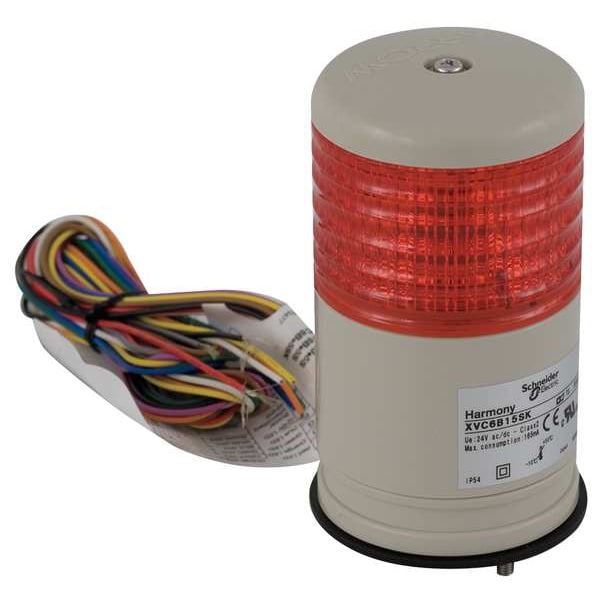

Schneider Electric Tower Light Assembly, 24V, Red, 60 mm Dia., 120 13/16 mm Height, LED XVC6B15SK - main

Tower Light Assembly, 24V, Red, 60 mm Dia., 120 13/16 mm Height, LED

  • Mfr # XVC6B15SK

  • Zoro # G0313381

product price: $221.99
/ea
Free Shipping & Returns

Key Features

Standards
RoHS, UL Listed
Voltage
24V
Overall Diameter
60 mm
Housing Material
ABS, PBT
Lighting Technology
LED
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XVC6B15SK
Zoro #
G0313381
UPC #
785901706915
Country of Origin
Indonesia

Dimensions

Overall Diameter
60 mm
Overall Height
120 13/16 mm
Diameter
60 mm
Height
3-1/4"
Cord Length
2 3/4 ft
Lead Length
850 mm

Details

Item
Tower Light Assembly
Standards
RoHS, UL Listed
Voltage
24V
Housing Material
ABS, PBT
Lighting Technology
LED
Current Drawn
0.03A
Flashes per Minute
60
Color
Red
Lens Material
Polycarbonate
Number of Lights
1
Sound Modes
Intermittent, Steady
Sound Level
70 to 85dB
NEMA Rating
NEMA 3R
Light Modes
Flashing, Steady
Rating
IP54
Operating Temp.
14 Degrees to 122 Degrees F
Sounder Included
Yes
Tower Light Mounting Style
Base
Watts
0.6 W
Lens Design
Cylinder
Tower Light Color
Red
Mode
Steady, Flashing with Buzzer
Mounting
Base
Lamp Life
100,000 hr
Wattage
0.6 W
Lamp Watts
0.6 W
Operating Voltage
24V
Sound Style
Buzzer
Lens Shape
Cylinder
Light Source
LED
Operating Temperature - Minimum
-10 Degrees C
Sound Volume - Maximum
85 dB
Sound Volume - Minimum
70 dB
Number of Light Tiers
1
Lifespan
100,000 hr
Light Tier Color
Red
Light Operating Mode
Flashing, Steady
Operating Temperature - Maximum
50 Degrees C
Includes Sounder Tier
Sounder Tier Included
Operating Current
0.065 A
Control Protocol
Direct Wire
Sound Operating Mode
Intermittent
Connection Type
Wire Leads
IP Rating
IP54
Includes
1 red illuminated signaling unit and a base for mounting on horizontal surface

Description

Tower Light Mounting Style Base, Number of Lights 1, Tower Light Color Red, Light Modes Flashing, Steady, Sound Modes Intermittent, Steady, Lighting Technology LED, Sounder Included Yes, Diameter 60 mm, Overall Height 120 13/16 mm, Voltage 24V AC/DC, NEMA Rating NEMA 3R, 60 Flashes per Minute, Lamp Life 100,000 hr, Housing Material ABS, PBT, Lens Design Cylinder, Lens Material Polycarbonate, Sound Level 70 to 85dB, Cord Length 2 3/4 ft, Operating Temp. 14 Degrees to 122 Degrees F
