  15. Undervoltage Release, Multi 9 Circuit Breakers Use With, 220 to 240V AC/24V DC, 0 Poles

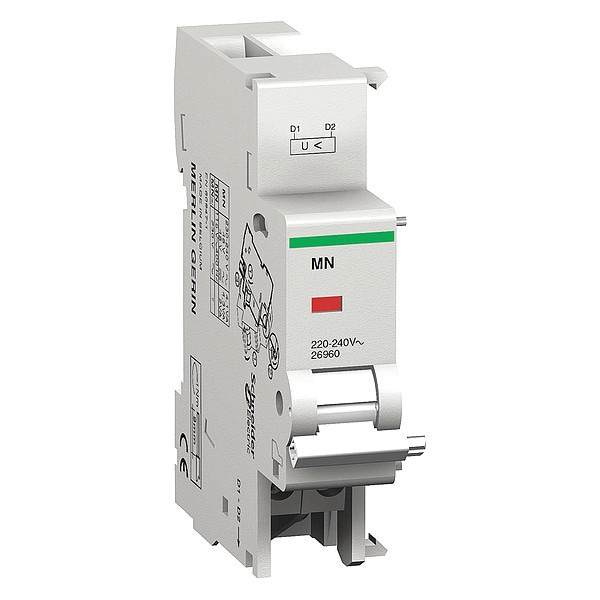

Schneider Electric Undervoltage Release, Multi 9 Circuit Breakers Use With, 220 to 240V AC/24V DC, 0 Poles M9A26960 - main

Undervoltage Release, Multi 9 Circuit Breakers Use With, 220 to 240V AC/24V DC, 0 Poles

  • Mfr # M9A26960

  • Zoro # G6564859

product price: $162.99
/ea
Free Shipping & Returns

Key Features

Voltage
220 to 240V AC/24V DC
Number of Poles
0
For Use With
Multi 9 Circuit Breakers
Standards
CSA Certified, EN 60947-2, EN/IEC 60947-1, PCT, UL Listed, UR
Width
18 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M9A26960
Zoro #
G6564859
UPC #
785901761228
Country of Origin
Belgium

Dimensions

Width
18 mm
Height
82.5 mm
Depth
68 mm
Wire Stripping Length
9 mm bottom

Details

Item
Undervoltage Release
Voltage
220 to 240V AC/24V DC
Number of Poles
0
For Use With
Multi 9 Circuit Breakers
Standards
CSA Certified, EN 60947-2, EN/IEC 60947-1, PCT, UL Listed, UR
Comb Busbar And Distribution Block Compatibility
top YES
Connections - Terminals
clamp terminal bottom) - 1 2.5-2.5 mm2² AWG 14) - rigid || clamp terminal bottom) - 2 1.5-1.5 mm2² AWG 16) - rigid
Tightening Torque
1-1 N.m bottom
[Uc] Control Circuit Voltage
220...240 V AC 50/60 Hz
Product Certifications
UR || PCT || CSA || UL
Mounting Mode
fixed
Range
Multi9
Local Signalling
action indicator
Ambient Air Temperature For Operation
-25-50 2°C
Ambient Air Temperature For Storage
-40-85 2°C
Control Type
standard
Product Or Component Type
undervoltage release
Pollution Degree
3
Range Compatibility
Multi9 (Multi9 C60) C60BP || Multi9 (Multi9 C60) C60BPR || Multi9 (Multi9 C60) C60SP || Multi9 (Multi9 GFP) GFP || Multi9 (Multi9 C60H-DC) C60H-DC
Device Short Name
MN
Mounting Support
DIN rail
9 Mm Pitches
2

Description

Undervoltage Release, For Use With Multi 9 Circuit Breakers, Voltage 220 to 240V AC/24V DC, Number of Poles None, Standards CSA Certified, EN 60947-2, EN/IEC 60947-1, PCT, UL Listed, UR
