  13. Universal plug-in relay - Zelio RUM - 3, 120V AC Coil Volts, 3 C/O

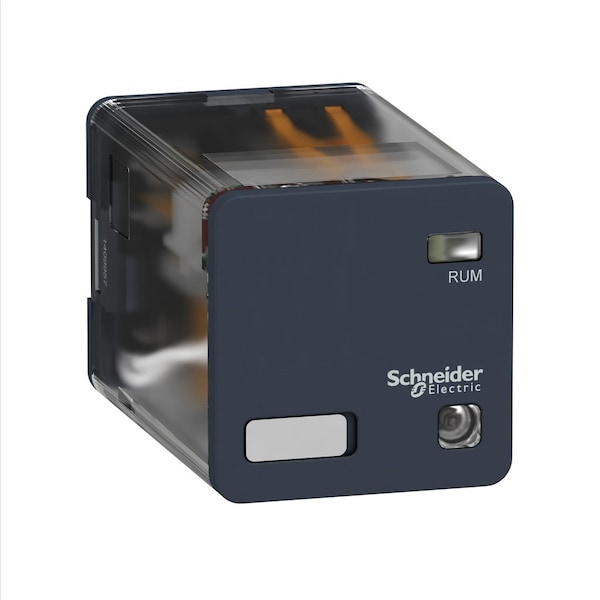

Schneider Electric Universal plug-in relay - Zelio RUM - 3, 120V AC Coil Volts, 3 C/O RUMF33F7 - main

Universal plug-in relay - Zelio RUM - 3, 120V AC Coil Volts, 3 C/O

  • Mfr # RUMF33F7

  • Zoro # G400948428

product price: $18.69
/ea
Sold in multiples of 10 for $186.90

Key Features

Coil Voltage
120V AC
Current Rating
10 A
Contact Rating (AC)
10A @ 250V AC
Contact Rating (DC)
10A @ 28V DC
Standards
UL 508; CSA C22.2 No 14; EN/IEC 61810-1; EAC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RUMF33F7
Zoro #
G400948428
UPC #
-
Country of Origin
China

Details

Item
Plug-In Relay
Coil Voltage
120V AC
Current Rating
10 A
Contact Rating (AC)
10A @ 250V AC
Contact Rating (DC)
10A @ 28V DC
Standards
UL 508; CSA C22.2 No 14; EN/IEC 61810-1; EAC
Features
Status LED
Contact Material
AgNi
Power Consumption - Relay
3 VA
Pin Shape
flat
Switching Power
Max 2500 VA/280 W; Min 170 mW 10 mA, 17 V
Operating Temp. Range
-40-55°C
Protection Category
RT I
Dielectric Strength
1500 V AC between contacts with micro disconnection; 2500 V AC between coil and contact with reinforced; 2000 V AC between poles with basic
Switching Voltage
250 V IEC
Operating Time
20 ms at nominal voltage
Coil Resistance
1700 Ohm
Series
RUM; Universal
Control Type
without lockable test button
Minimum Switching Capacity
170 mW 10 mA, 17 V
Vibration Resistance
3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Mechanical Durability
5000000 cycles
Operating Rate
<= 18000 cycles/hour no-load, <= 1200 cycles/hour under load
Utilisation Coefficient
0.2
Load Current
10 A 250 V AC, 10 A 28 V DC
[Ithe] Conventional Enclosed Thermal Current
10 A -40-55°C
Ip Degree of Protection
IP40
Pollution Degree
3
Ambient Air Temperature For Operation
-40-55°C
Electrical Durability
100000 cycles resistive
Test Levels
level A group mounting
Drop-Out Voltage Threshold
>= 0.15 Uc AC
Device Short Name
RUM
Device Presentation
complete product
Maximum Switching Capacity
2500 VA/280 W
Series Name
Universal
Rated Operational Voltage Limits
96...132 V AC
[Ui] Rated Insulation Voltage
250 V IEC, 300 V CSA, 300 V UL
Operating Position
any position
Average Resistance
1700 Ohm 20°C +/- 15 %
Average Coil Consumption In VA
3-3 60 Hz
[Uimp] Rated Impulse Withstand Voltage
4 kV 1.2/50µs)
Ambient Air Temperature For Storage
-40-85°C
Shock Resistance
10 gn 11 ms) in operation IEC 60068-2-27, 10 gn 11 ms) not operating IEC 60068-2-27
Status Indicator
LED Indicator

Description

Universal plug-in relay - Zelio RUM - 3
