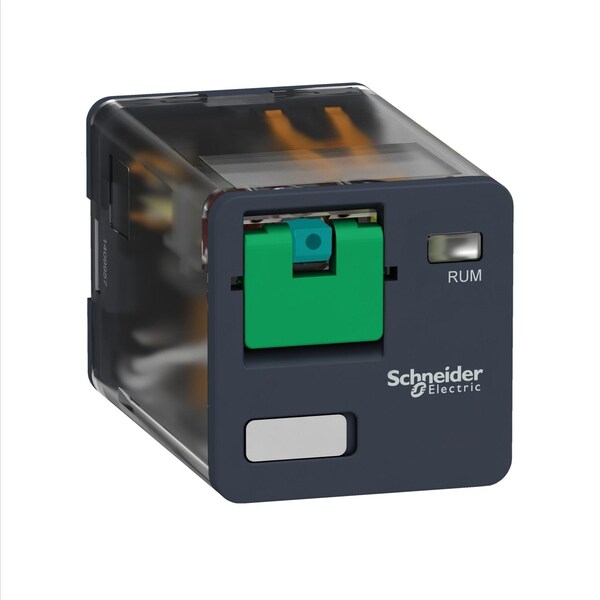

Schneider Electric Universal plug-in relay - Zelio RUM - 3, 12V DC Coil Volts, 3 C/O RUMC31JD - main

Universal plug-in relay - Zelio RUM - 3, 12V DC Coil Volts, 3 C/O

  • Mfr # RUMC31JD

  • Zoro # G500906205

product price:  $18.45
/ea
Sold in multiples of 10 for $184.50

Key Features

Coil Voltage
12V DC
Current Rating
10A
Contact Rating (AC)
10 A @ 250V AC (NO), 10 A @ 277 V AC, 5 A @ 250 V AC (NC)
Contact Rating (DC)
10 A @ 28V DC (NO), 5 A @ 28 V DC (NC), 10 A @ 30 V DC
Contact Material
AgNi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RUMC31JD
Zoro #
G500906205
UPC #
-
Country of Origin
China

Details

Item
Plug-In Relay
Coil Voltage
12V DC
Current Rating
10A
Contact Rating (AC)
10 A @ 250V AC (NO), 10 A @ 277 V AC, 5 A @ 250 V AC (NC)
Contact Rating (DC)
10 A @ 28V DC (NO), 5 A @ 28 V DC (NC), 10 A @ 30 V DC
Contact Material
AgNi
Features
Lockable Test Button
Power Consumption - Relay
1.4 W
Standards
UL 508 C22.2 No 14; EN/IEC 61810-1; EAC
Switching Power
Max 2500 VA/280 W; Min 170 mW 10 mA, 17 V
Operating Temp. Range
-40-55°C
Series
RUM; Universal
Protection Category
RT I
Coil Resistance
120 Ohm
Dielectric Strength
1500 V AC between contacts with micro disconnection; 2500 V AC between coil and contact with reinforced; 2000 V AC between poles with basic
Operating Time
20 ms at nominal voltage
Pin Shape
cylindrical
Switching Voltage
250 V IEC
Operating Rate
<= 18000 cycles/hour no-load, <= 1200 cycles/hour under load
Mechanical Durability
5000000 cycles
[Ui] Rated Insulation Voltage
250 V IEC, 300 V CSA, 300 V UL
Ambient Air Temperature For Storage
-40-85°C
Operating Position
any position
Electrical Durability
100000 cycles resistive
[Ithe] Conventional Enclosed Thermal Current
10 A -40-55°C
Load Current
10 A 250 V AC, 10 A 28 V DC
Pollution Degree
2
Average Resistance
120 Ohm 20°C +/- 15 %
Test Levels
level A group mounting
Device Presentation
complete product
Maximum Switching Capacity
2500 VA/280 W
Device Short Name
RUM
Ambient Air Temperature For Operation
-40-55°C
Series Name
Universal
Drop-Out Voltage Threshold
>= 0.1 Uc DC
[Uimp] Rated Impulse Withstand Voltage
4 kV 1.2/50µs)
Shock Resistance
10 gn 11 ms) in operation IEC 60068-2-27, 10 gn 11 ms) not operating IEC 60068-2-27
Rated Operational Voltage Limits
9.6...13.2 V DC
Utilisation Coefficient
0.2
Vibration Resistance
3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Ip Degree of Protection
IP40
Minimum Switching Capacity
170 mW 10 mA, 17 V
Status Indicator
No Indicator
Contact Form
3PDT
Electrical Connection
Plug In
Number of Pins
11
Base Shape
Octal

Description

Universal plug-in relay - Zelio RUM - 3
