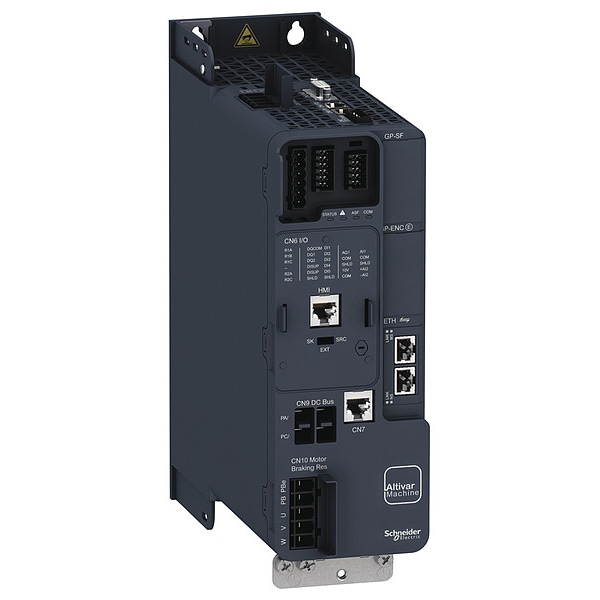

Schneider Electric Variable Frequency Drive, 1 1/2hp, 480V ATV340U07N4E - main

Variable Frequency Drive, 1 1/2hp, 480V

  • Mfr # ATV340U07N4E

  • Zoro # G0196834

product price: $1,084.99
/ea
Free Shipping & Returns

Key Features

Input Phase AC
Three
Output Voltage
480V AC
Display Type
None
Max. HP
1 hp, 1.5 hp
With Line Contactor / No Line Contactor
With Line Contactor
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV340U07N4E
Zoro #
G0196834
UPC #
785901714989
Country of Origin
Indonesia

Dimensions

Depth
9.15 in
Width
3.35 in
Height
10.63 in
Overall Width
3 3/8 in
Overall Height
10 5/8 in
Overall Depth
9 1/8 in

Details

Input Phase AC
Three
Output Voltage
480V AC
Display Type
None
Item
Variable Speed Drive
Max. HP
1 hp, 1.5 hp
With Line Contactor / No Line Contactor
With Line Contactor
Max. Output Amps
3.1 A, 3.3 A, 3.8 A, 4 A
Input Frequency
50/60 Hz
Dynamic Braking
No
Protection
Break on the control circuit, DC Bus overvoltage, Exceeding limit speed, Input supply loss, Line supply overvoltage, Line supply undervoltage, Motor phase loss, Output overcurrent between motor phase and earth, Output overcurrent between motor phases, Overcurrent, Overheating, Safe torque off, Short-circuit between motor phase and earth, Short-circuit between motor phases, Thermal protection
Standards
EN/IEC 61800-3, Environment 1 Category C2 EN/IEC 61800-3, Environment 2 Category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 618000-5-1
For Use With
Three-phase supply voltage: 380...480 V 50/60 Hz
Input Voltage
480V AC
Digital Readout
No
Control Method
Constant Torque Standard, Optimized Torque Mode, Variable Torque Standard
Enclosure
Open
Enclosure Rating
NEMA 1
With Bypass / No Bypass
No Bypass
Adjustable Acceleration Time
0.01 to 9,999 sec
Torque Application
Constant Torque, Variable Torque
Output Phase AC
Three
Application
Industrial Process and Utilities
Output Frequency Range
0.1 to 599 Hz
Number of Inputs
(2) Analog; (1) Discrete; (3) Relay
Output Type
Analog, Discrete
Number of Outputs
(3) Analog; (8) Discrete
Start/Stop Control
Programmable
Series
Altivar Machine ATV340
Maximum Output Power
1 1/2 hp
Ethernet Port Included
Yes
Adjustable Deceleration Time
0.01 to 9,999 sec
Input Type
Analog, Discrete
Brake Chopper Included
Yes
Style
Ethernet
Input Voltage Range
380 to 480V AC
Output Voltage Range
323V AC to 528V AC
Displays
None
Color
Black
Key Pad Lockout
None
Maximum Output Current
2.8 A

Description

Variable Speed Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 1 1/2 hp, Maximum Output Current 2.8 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0.1 to 599 Hz, Enclosure Rating NEMA 1
