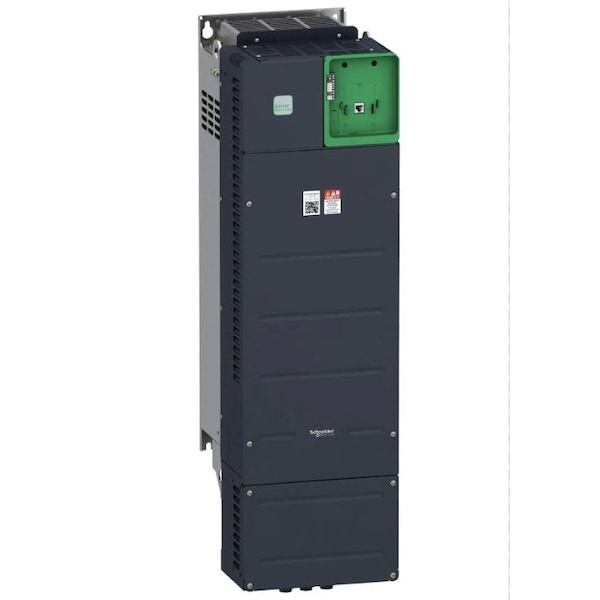

Schneider Electric Variable Frequency Drive, 100 hp, 480V AC ATV340D55N4E - main

Variable Frequency Drive, 100 hp, 480V AC

  • Mfr # ATV340D55N4E

  • Zoro # G3612358

product price: $9,190.99
/ea
Free Shipping & Returns

Key Features

With Line Contactor / No Line Contactor
With Line Contactor
Input Phase AC
Three
Width
10.67 in
Dynamic Braking
No
For Use With
Three-phase supply voltage: 380...480 V 50/60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV340D55N4E
Zoro #
G3612358
UPC #
785901757863
Country of Origin
China

Dimensions

Width
10.67 in
Depth
12.17 in
Height
35.75 in
Overall Height
35 3/4 in
Overall Depth
12 1/8 in
Overall Width
10 5/8 in

Details

With Line Contactor / No Line Contactor
With Line Contactor
Input Phase AC
Three
Dynamic Braking
No
For Use With
Three-phase supply voltage: 380...480 V 50/60 Hz
Output Voltage
480V AC
Display Type
None
Control Method
Variable Torque Standard, Optimized Torque Mode, Constant Torque Standard
Max. HP
75 hp, 100 hp
Max. Output Amps
159 A, 174 A
Protection
Break on the control circuit, DC Bus overvoltage, Exceeding limit speed, Input supply loss, Line supply overvoltage, Line supply undervoltage, Motor phase loss, Output overcurrent between motor phase and earth, Output overcurrent between motor phases, Overcurrent, Overheating, Safe torque off, Short-circuit between motor phase and earth, Short-circuit between motor phases, Thermal protection
Input Frequency
50/60 Hz
Input Voltage
480V AC
Item
Variable Speed Drive
Digital Readout
No
Standards
EN/IEC 61800-3, Environment 1 Category C2 EN/IEC 61800-3, Environment 2 Category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 618000-5-1
With Bypass / No Bypass
No Bypass
Number of Outputs
(3) Analog; (8) Discrete
Application
Industrial Process and Utilities
Enclosure Rating
NEMA 1
Output Type
Analog, Discrete
Torque Application
Constant Torque, Variable Torque
Color
Black
Brake Chopper Included
Yes
Displays
None
Style
Ethernet
Input Voltage Range
380 to 480V AC
Output Voltage Range
323V AC to 528V AC
Maximum Output Current
145 A
Enclosure
Open
Ethernet Port Included
Yes
Input Type
Analog, Discrete
Adjustable Deceleration Time
0.01 to 9,999 sec
Series
Altivar Machine ATV340
Number of Inputs
(2) Analog; (1) Discrete; (3) Relay
Start/Stop Control
Programmable
Output Phase AC
Three
Adjustable Acceleration Time
0.01 to 9,999 sec
Key Pad Lockout
None
Output Frequency Range
0.1 to 599 Hz
Maximum Output Power
100 hp

Description

Variable Speed Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 100 hp, Maximum Output Current 145 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0.1 to 599 Hz, Enclosure Rating NEMA 1
