  11. Variable Frequency Drive, 1/2 HP, 1.5A

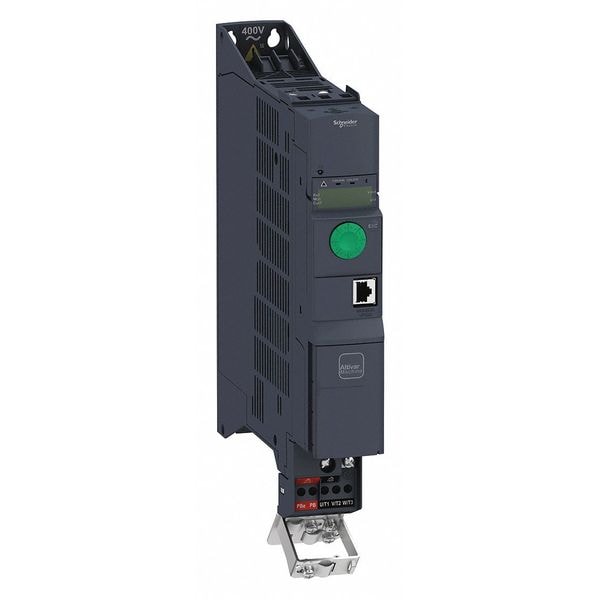

Schneider Electric Variable Frequency Drive, 1/2 HP, 1.5A ATV320U04N4B - main

Variable Frequency Drive, 1/2 HP, 1.5A

  • Mfr # ATV320U04N4B

  • Zoro # G5925217

product price: $553.99
/ea
Free Shipping & Returns

Key Features

Control Type
Keypad, Remote, Terminal, Network
Adjustable Deceleration Time
0 to 6,000 sec
Depth
9.65 in
Displays
LED
Control Method
Keypad, Remote, Terminal, Network
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV320U04N4B
Zoro #
G5925217
UPC #
785901723752
Country of Origin
Indonesia

Dimensions

Depth
9.65 in
Width
1.77 in
Height
12.8 in
Overall Depth
9 3/4 in
Overall Height
12 7/8 in
Overall Width
1 7/8 in

Details

Control Type
Keypad, Remote, Terminal, Network
Adjustable Deceleration Time
0 to 6,000 sec
Displays
LED
Control Method
Keypad, Remote, Terminal, Network
Display Type
LED
With Bypass / No Bypass
No Bypass
Max. Output Amps
1.5 A
Max. HP
0.5 hp
Start/Stop Control
Programmable
Output Frequency Range
0.1 to 599 Hz
Key Pad Lockout
Yes
Starting Torque
1.5
For Use With
three-phase Asynchronous, Synchronous Motors
Protection
Input Phase Breaks Drive, Overcurrent Between Output Phases And Earth Drive, Overheating Protection Drive, Short-Circuit Between Motor Phases Drive, Thermal Protection Drive
Output Voltage
500V AC
Digital Readout
Output Frequency, Output Current, Output Voltage
With Line Contactor / No Line Contactor
No Line Contactor
Enclosure
Open
Dynamic Braking
No
Input Phase AC
Three
Standards
EN/IEC 61800-3, Environment 1 Category C2 EN/IEC 61800-3, Environment 2 Category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 508C, UL 61800-5-1, CSA C22.2 No 274
Torque @ 1 Hz
1.5
Input Frequency
50/60 Hz
Output Phase AC
Three
Accepts Input Control Signal
0 to 10V DC, 0 to 20mA Adjustable, Bipolar -10 to 10V DC
Input Voltage
500V AC
Adjustable Acceleration Time
0 to 6,000 sec
Item
Variable Speed Drive
Maximum Output Power
1/2 hp
Number of Outputs
(1) Analog; (3) Discrete
Color
Black
Ethernet Port Included
No
Series
Altivar 320
Style
Book
Number of Inputs
(3) Analog; (7) Discrete
Output Voltage Range
380V AC to 500V AC
Enclosure Rating
NEMA 1
Torque Application
Constant Torque, Variable Torque
Input Voltage Range
323 to 550V AC
Input Type
Analog, Discrete
Output Type
Analog, Discrete
Maximum Output Current
1.5 A
Brake Chopper Included
Yes
Application
Complex Machines

Description

Variable Speed Drive, Input Voltage 500V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 1/2 hp, Maximum Output Current 1.5 A, Output Voltage 500V AC, Output Phase AC Three, Output Frequency Range 0.1 to 599 Hz, Enclosure Rating NEMA 1
