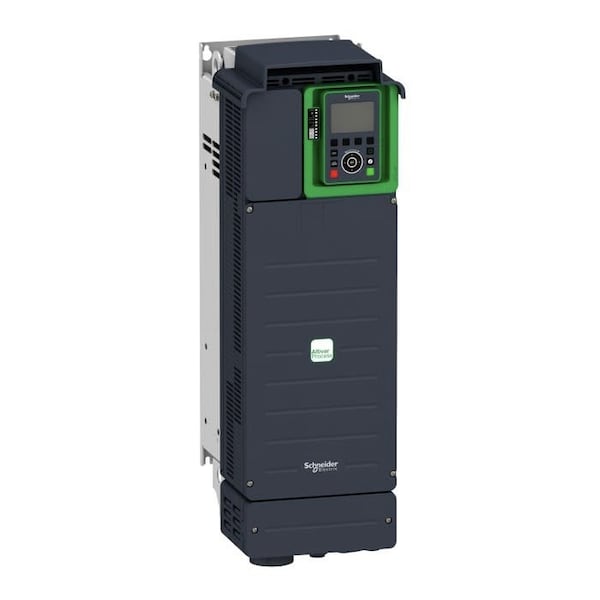

Schneider Electric Variable Frequency Drive, 20 HP, 35.3A ATV630D15N4 - main

Variable Frequency Drive, 20 HP, 35.3A

  • Mfr # ATV630D15N4

  • Zoro # G0211561

product price: $4,087.99
/ea
Free Shipping & Returns

Key Features

Output Frequency Range
0.1 to 500 Hz
For Use With
Synchronous, Asynchronous Motors and Special Motors From 800kW to 1.5MW
Adjustable Acceleration Time
0.01 to 9,999 sec
Height
21.5 in
Dynamic Braking
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV630D15N4
Zoro #
G0211561
UPC #
785901490944
Country of Origin
India

Dimensions

Height
21.5 in
Width
8.31 in
Depth
9.13 in
Overall Depth
9 1/8 in
Overall Height
21 1/2 in
Overall Width
8 3/8 in

Details

Output Frequency Range
0.1 to 500 Hz
For Use With
Synchronous, Asynchronous Motors and Special Motors From 800kW to 1.5MW
Adjustable Acceleration Time
0.01 to 9,999 sec
Dynamic Braking
No
Displays
LCD Keypad
With Line Contactor / No Line Contactor
With Line Contactor
Key Pad Lockout
None
Enclosure
Totally Enclosed
Output Phase AC
Three
Output Voltage
480V AC
Item
Variable Speed Drive
Control Method
Keypad, Remote Keypad, Terminal, Digital Communication Network
Digital Readout
Yes
Adjustable Deceleration Time
0.01 to 9,999 sec
Start/Stop Control
Programmable
Display Type
LCD
Standards
UL 508C, EN/IEC 61800-3, Environment 1 category C2 EN/IEC 61800-3, Environment 2 category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, IEC 13849-1
Control Type
Keypad, Remote Keypad, Terminal, Digital Communication Network
With Bypass / No Bypass
No Bypass
Accepts Input Control Signal
Yes
Max. Output Amps
35.3 A
Input Frequency
50/60 Hz
Max. HP
20 hp
Input Phase AC
Three
Input Voltage
480V AC
Protection
Motor Phase Break, Overcurrent, Overheating, Overspeed, Overvoltage's, Safe Torque Off, Short-circuit Protection, Thermal Protection, Undervoltage
Number of Inputs
(3) Analog; (8) Discrete
Output Type
Analog, Discrete
Number of Outputs
(2) Analog; (3) Relay
Maximum Output Current
31.7 A
Output Voltage Range
380V AC to 480V AC
Application
Industrial Process and Utilities
Input Voltage Range
380 to 480V AC
Color
Black
Ethernet Port Included
Yes
Input Type
Analog, Discrete
Style
Compact
Enclosure Rating
NEMA 1
Torque Application
Constant Torque, Variable Torque
Brake Chopper Included
No
Maximum Output Power
20 hp
Series
Altivar Process ATV600 Variable Speed Drives

Description

Variable Speed Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 20 hp, Maximum Output Current 31.7 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0.1 to 500 Hz, Enclosure Rating NEMA 1
