  11. Variable Frequency Drive, 20 HP, 70.2A

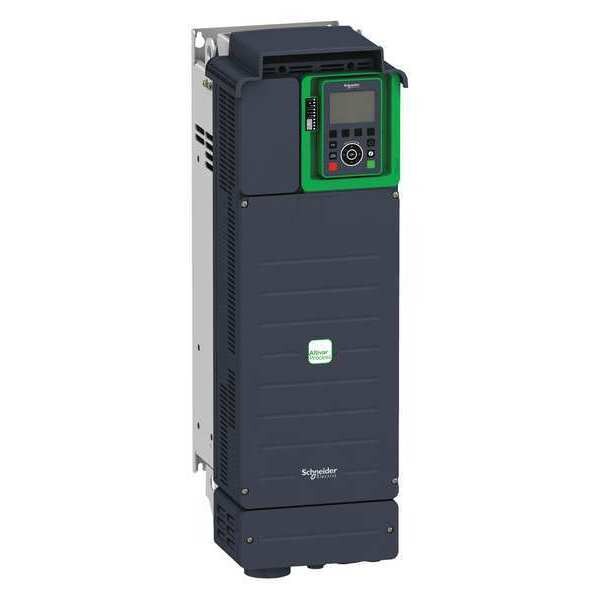

Schneider Electric Variable Frequency Drive, 20 HP, 70.2A ATV630D15M3 - main

Variable Frequency Drive, 20 HP, 70.2A

  • Mfr # ATV630D15M3

  • Zoro # G0211482

product price: $4,319.99
/ea
Free Shipping & Returns

Key Features

Output Frequency Range
0.1 to 500 Hz
Input Frequency
50/60 Hz
Input Phase AC
Three
Input Voltage
240V AC
Accepts Input Control Signal
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV630D15M3
Zoro #
G0211482
UPC #
785901397663
Country of Origin
India

Dimensions

Width
8.9 in
Height
26.5 in
Depth
10.67 in
Overall Width
8 7/8 in
Overall Height
26 1/2 in
Overall Depth
10 3/4 in

Details

Output Frequency Range
0.1 to 500 Hz
Input Frequency
50/60 Hz
Input Phase AC
Three
Input Voltage
240V AC
Accepts Input Control Signal
Yes
For Use With
Synchronous, Asynchronous Motors and Special Motors From 800kW to 1.5MW
Displays
LCD Keypad
Output Phase AC
Three
Item
Variable Speed Drive
Adjustable Acceleration Time
0.01 to 9,999 sec
Display Type
LCD
With Bypass / No Bypass
No Bypass
Control Type
Keypad, Remote Keypad, Terminal, Digital Communication Network
Adjustable Deceleration Time
0.01 to 9,999 sec
Digital Readout
Yes
Max. HP
20 hp
Max. Output Amps
70.2 A
Enclosure
Totally Enclosed
Key Pad Lockout
None
Dynamic Braking
No
Control Method
Keypad, Remote Keypad, Terminal, Digital Communication Network
With Line Contactor / No Line Contactor
With Line Contactor
Start/Stop Control
Programmable
Standards
UL 508C, EN/IEC 61800-3, Environment 1 category C2 EN/IEC 61800-3, Environment 2 category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, IEC 13849-1
Protection
Motor Phase Break, Overcurrent, Overheating, Overspeed, Overvoltage's, Safe Torque Off, Short-circuit Protection, Thermal Protection, Undervoltage
Output Voltage
240V AC
Enclosure Rating
NEMA 1
Number of Outputs
(2) Analog; (3) Relay
Color
Black
Output Type
Analog, Discrete
Series
Altivar Process ATV600 Variable Speed Drives
Torque Application
Constant Torque, Variable Torque
Input Type
Analog, Discrete
Application
Industrial Process and Utilities
Input Voltage Range
200 to 240V AC
Ethernet Port Included
Yes
Number of Inputs
(3) Analog; (8) Discrete
Style
Compact
Maximum Output Current
63.4 A
Output Voltage Range
200V AC to 240V AC
Brake Chopper Included
No
Maximum Output Power
20 hp

Description

Variable Speed Drive, Input Voltage 240V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 20 hp, Maximum Output Current 63.4 A, Output Voltage 240V AC, Output Phase AC Three, Output Frequency Range 0.1 to 500 Hz, Enclosure Rating NEMA 1
