Variable Frequency Drive, 25 HP, 208-240V

This item is Discontinued.

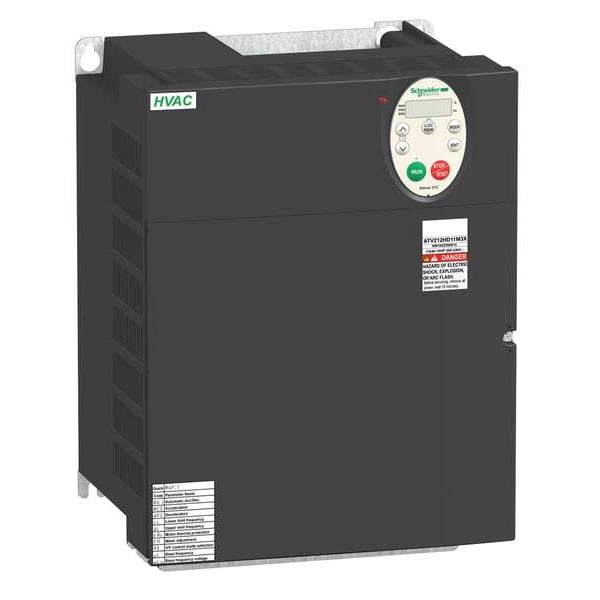

Schneider Electric Variable Frequency Drive, 25 HP, 208-240V ATV212HD18M3X

Variable Frequency Drive, 25 HP, 208-240V (Discontinued)

Mfr # ATV212HD18M3X
Zoro # G1079601

Get a 10% off coupon

Free 30-day returns

Get 30 days to pay with Net 30

Real support from real people

Specifications

Product Information

MFR #

ATV212HD18M3X

Zoro #

G1079601

UPC #

785901829867

Country of Origin

Indonesia

Dimensions

Width

9.65 in

Depth

7.48 in

Height

12.99 in

Overall Height

12 7/8 in

Overall Depth

7 1/2 in

Overall Width

9 5/8 in

Details

Item

Variable Speed Drive

Max. HP

25 hp

Input Voltage

200 to 240V AC

Output Voltage

170 to 264V AC

Input Phase AC

Three

Enclosure

Open

Max. Output Amps

74.8 A

Output Phase AC

Three

With Bypass / No Bypass

No Bypass

With Line Contactor / No Line Contactor

No Line Contactor

Adjustable Deceleration Time

0.01 to 3,200 sec

Accepts Input Control Signal

Yes

Digital Readout

Hertz, Motor Current, KW, Motor Voltage, Bus Energized

Protection

Against Exceeding Limit Speed: Drive, Against Input Phase Loss: Drive, Break on the Control Circuit: Drive, Input Phase Breaks: Drive, Line Supply Overvoltage and Undervoltage: Drive, Line Supply Undervoltage: Drive, Motor Phase Break: Motor, Overcurrent Between Output Phases and Earth: Drive, Overheating Protection: Drive, Overvoltage's on the DC Bus: Drive, Short-Circuit Between Motor Phases: Drive, Thermal Power Stage: Drive, Thermal Protection: Motor, With PTC Probes: Motor

For Use With

3-Phase Inverter Duty Motor

Starting Torque

120%

Key Pad Lockout

Yes

Standards

UL, NOM 117, C-Tick, CSA

Control Method

Keypad or Logic Input

Control Type

Keypad, Logic Input

Start/Stop Control

Programmable

Input Frequency

50/60 Hz

Dynamic Braking

Adjustable Acceleration Time

0.01 to 3,200 sec

Torque @ 1 Hz

110%

Display Type

LED

Displays

LED

Output Frequency Range

0.5 to 200 Hz

Ethernet Port Included

Number of Outputs

(1) Analog; (2) Discrete

Enclosure Rating

NEMA 1

Torque Application

Constant Torque, Variable Torque

Application

Building - HV AC Compressor for Scroll, Building - HV AC Fan, Building - HV AC Pump

Maximum Output Power

25 hp

Output Type

Analog, Discrete

Number of Inputs

Maximum Output Current

74.8 A

Input Type

Analog, Discrete

Input Voltage Range

200 to 240V AC

Color

Black/Blue/Gray

Output Voltage Range

200V AC to 240V AC

Brake Chopper Included

Series

ATV212

Style

Heat Sink

Description

Variable Speed Drive, Input Voltage 200 to 240V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 25 hp, Maximum Output Current 74.8 A, Output Voltage 170 to 264V AC, Output Phase AC Three, Output Frequency Range 0.5 to 200 Hz, Enclosure Rating NEMA 1
