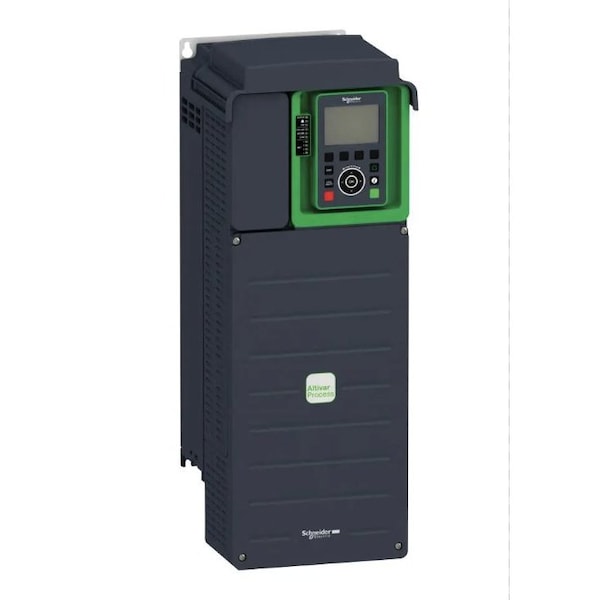

Schneider Electric Variable Frequency Drive, 25 HP, 47.6A ATV630D18N4 - main

Variable Frequency Drive, 25 HP, 47.6A

  • Mfr # ATV630D18N4

  • Zoro # G0211473

product price: $4,736.99
/ea
Free Shipping & Returns

Key Features

Max. HP
25 hp
Input Frequency
50/60 Hz
With Bypass / No Bypass
No Bypass
Protection
Motor Phase Break, Overcurrent, Overheating, Overspeed, Overvoltage's, Safe Torque Off, Short-circuit Protection, Thermal Protection, Undervoltage
Adjustable Deceleration Time
0.01 to 9,999 sec
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV630D18N4
Zoro #
G0211473
UPC #
785901462217
Country of Origin
India

Dimensions

Height
21.5 in
Width
8.31 in
Depth
9.13 in
Overall Width
8 3/8 in
Overall Depth
9 1/8 in
Overall Height
21 1/2 in

Details

Max. HP
25 hp
Input Frequency
50/60 Hz
With Bypass / No Bypass
No Bypass
Protection
Motor Phase Break, Overcurrent, Overheating, Overspeed, Overvoltage's, Safe Torque Off, Short-circuit Protection, Thermal Protection, Undervoltage
Adjustable Deceleration Time
0.01 to 9,999 sec
Output Frequency Range
0.1 to 500 Hz
Output Voltage
480V AC
Key Pad Lockout
None
Adjustable Acceleration Time
0.01 to 9,999 sec
Input Voltage
480V AC
Control Type
Keypad, Remote Keypad, Terminal, Digital Communication Network
For Use With
Synchronous, Asynchronous Motors and Special Motors From 800kW to 1.5MW
Control Method
Keypad, Remote Keypad, Terminal, Digital Communication Network
Output Phase AC
Three
Max. Output Amps
47.6 A
Input Phase AC
Three
With Line Contactor / No Line Contactor
With Line Contactor
Digital Readout
Yes
Item
Variable Speed Drive
Display Type
LCD
Dynamic Braking
No
Start/Stop Control
Programmable
Standards
UL 508C, EN/IEC 61800-3, Environment 1 category C2 EN/IEC 61800-3, Environment 2 category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, IEC 13849-1
Accepts Input Control Signal
Yes
Displays
LCD Keypad
Enclosure
Totally Enclosed
Number of Inputs
(3) Analog; (8) Discrete
Style
Compact
Output Voltage Range
380V AC to 480V AC
Color
Black
Ethernet Port Included
Yes
Input Type
Analog, Discrete
Output Type
Analog, Discrete
Brake Chopper Included
No
Application
Industrial Process and Utilities
Maximum Output Current
39.2 A
Input Voltage Range
380 to 480V AC
Number of Outputs
(2) Analog; (3) Relay
Enclosure Rating
NEMA 1
Torque Application
Constant Torque, Variable Torque
Maximum Output Power
25 hp
Series
Altivar Process ATV600 Variable Speed Drives

Description

Variable Speed Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 25 hp, Maximum Output Current 39.2 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0.1 to 500 Hz, Enclosure Rating NEMA 1
