  11. Variable Frequency Drive, 3 hp, 480V AC

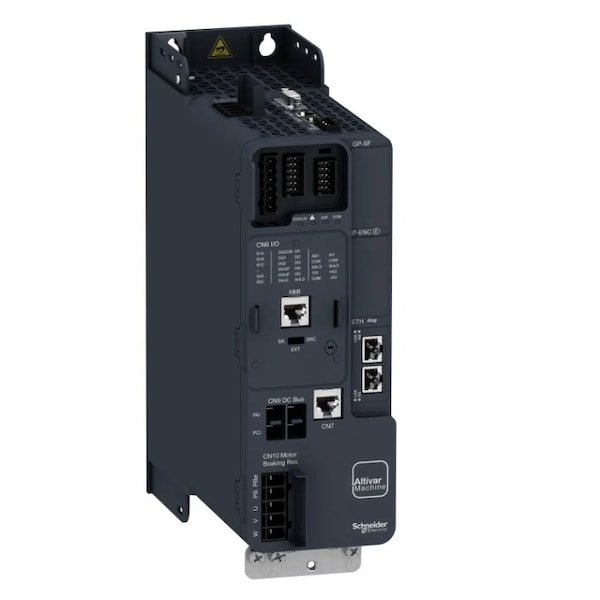

Schneider Electric Variable Frequency Drive, 3 hp, 480V AC ATV340U15N4E - main

Variable Frequency Drive, 3 hp, 480V AC

  • Mfr # ATV340U15N4E

  • Zoro # G0199695

product price: $1,255.99
/ea
Free Shipping & Returns

Key Features

Depth
9.15 in
Input Voltage
480V AC
Digital Readout
No
Height
10.63 in
Output Voltage
480V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV340U15N4E
Zoro #
G0199695
UPC #
785901715238
Country of Origin
Indonesia

Dimensions

Depth
9.15 in
Height
10.63 in
Width
3.35 in
Overall Height
10 5/8 in
Overall Width
3 3/8 in
Overall Depth
9 1/8 in

Details

Input Voltage
480V AC
Digital Readout
No
Output Voltage
480V AC
Display Type
None
Max. Output Amps
6 A, 6.2 A, 7.2 A, 7.6 A
Input Frequency
50/60 Hz
Standards
EN/IEC 61800-3, Environment 1 Category C2 EN/IEC 61800-3, Environment 2 Category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 618000-5-1
Max. HP
2 hp, 3 hp
Item
Variable Speed Drive
Input Phase AC
Three
Control Method
Constant Torque Standard, Optimized Torque Mode, Variable Torque Standard
Protection
Break on the control circuit, DC Bus overvoltage, Exceeding limit speed, Input supply loss, Line supply overvoltage, Line supply undervoltage, Motor phase loss, Output overcurrent between motor phase and earth, Output overcurrent between motor phases, Overcurrent, Overheating, Safe torque off, Short-circuit between motor phase and earth, Short-circuit between motor phases, Thermal protection
Dynamic Braking
No
For Use With
Three-phase supply voltage: 380...480 V 50/60 Hz
With Line Contactor / No Line Contactor
With Line Contactor
Input Type
Analog, Discrete
Start/Stop Control
Programmable
Input Voltage Range
380 to 480V AC
Torque Application
Constant Torque, Variable Torque
Output Phase AC
Three
Adjustable Acceleration Time
0.01 to 9,999 sec
Brake Chopper Included
Yes
Maximum Output Power
3 hp
Enclosure
Open
Displays
None
Key Pad Lockout
None
Style
Ethernet
Enclosure Rating
NEMA 1
Maximum Output Current
5.6 A
Adjustable Deceleration Time
0.01 to 9,999 sec
Number of Outputs
(3) Analog; (8) Discrete
Series
Altivar Machine ATV340
Output Voltage Range
323V AC to 528V AC
With Bypass / No Bypass
No Bypass
Ethernet Port Included
Yes
Application
Industrial Process and Utilities
Output Type
Analog, Discrete
Output Frequency Range
0.1 to 599 Hz
Color
Black
Number of Inputs
(2) Analog; (1) Discrete; (3) Relay

Description

Variable Speed Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 3 hp, Maximum Output Current 5.6 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0.1 to 599 Hz, Enclosure Rating NEMA 1
