Variable Frequency Drive, 30 HP, 208-240V

This item is Discontinued.

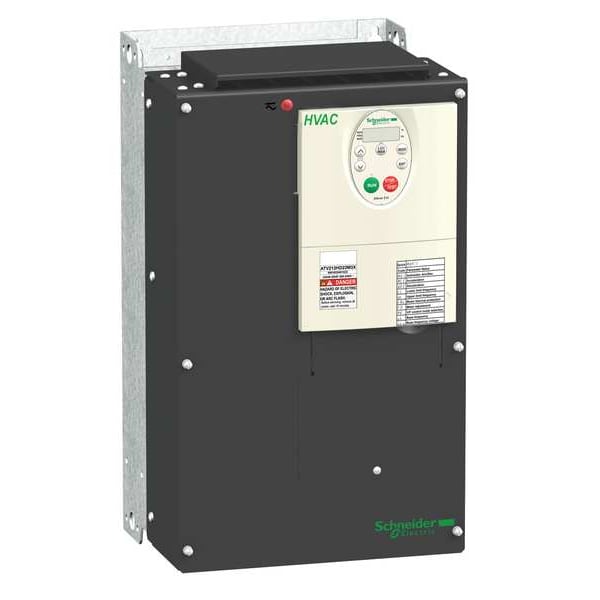

Schneider Electric Variable Frequency Drive, 30 HP, 208-240V ATV212HD22M3X

Variable Frequency Drive, 30 HP, 208-240V (Discontinued)

Mfr # ATV212HD22M3X
Zoro # G0553883

Get a 10% off coupon

Free 30-day returns

Get 30 days to pay with Net 30

Real support from real people

Specifications

Product Information

MFR #

ATV212HD22M3X

Zoro #

G0553883

UPC #

785901921714

Country of Origin

France

Dimensions

Width

9.45 in

Depth

8.43 in

Height

16.54 in

Overall Width

9 1/2 in

Overall Height

16 1/2 in

Overall Depth

8 1/2 in

Details

Item

Variable Speed Drive

Max. HP

30 hp

Input Voltage

200 to 240V AC

Output Voltage

170 to 264V AC

Input Phase AC

Three

Enclosure

Open

Max. Output Amps

88 A

Output Phase AC

Three

With Bypass / No Bypass

No Bypass

With Line Contactor / No Line Contactor

No Line Contactor

Displays

LED

Adjustable Deceleration Time

0.01 to 3,200 sec

Protection

Against Exceeding Limit Speed: Drive, Against Input Phase Loss: Drive, Break on the Control Circuit: Drive, Input Phase Breaks: Drive, Line Supply Overvoltage and Undervoltage: Drive, Line Supply Undervoltage: Drive, Motor Phase Break: Motor, Overcurrent Between Output Phases and Earth: Drive, Overheating Protection: Drive, Overvoltage's on the DC Bus: Drive, Short-Circuit Between Motor Phases: Drive, Thermal Power Stage: Drive, Thermal Protection: Motor, With PTC Probes: Motor

Accepts Input Control Signal

Yes

Output Frequency Range

0.5 to 200 Hz

Control Type

Keypad, Logic Input

Standards

UL, NOM 117, C-Tick, CSA

Key Pad Lockout

Yes

For Use With

3-Phase Inverter Duty Motor

Start/Stop Control

Programmable

Control Method

Keypad or Logic Input

Starting Torque

120%

Dynamic Braking

Adjustable Acceleration Time

0.01 to 3,200 sec

Display Type

LED

Torque @ 1 Hz

110%

Input Frequency

50/60 Hz

Digital Readout

Hertz, Motor Current, KW, Motor Voltage, Bus Energized

Output Voltage Range

200V AC to 240V AC

Torque Application

Constant Torque, Variable Torque

Ethernet Port Included

Color

Black/Blue/Gray

Output Type

Analog, Discrete

Input Voltage Range

200 to 240V AC

Application

Building - HV AC Compressor for Scroll, Building - HV AC Fan, Building - HV AC Pump

Series

ATV212

Maximum Output Current

88 A

Input Type

Analog, Discrete

Number of Outputs

(1) Analog; (2) Discrete

Enclosure Rating

NEMA 1

Style

Heat Sink

Brake Chopper Included

Number of Inputs

Maximum Output Power

30 hp

Description

Variable Speed Drive, Input Voltage 200 to 240V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 30 hp, Maximum Output Current 88 A, Output Voltage 170 to 264V AC, Output Phase AC Three, Output Frequency Range 0.5 to 200 Hz, Enclosure Rating NEMA 1
