  11. Variable Frequency Drive, 30 HP, 58.8A

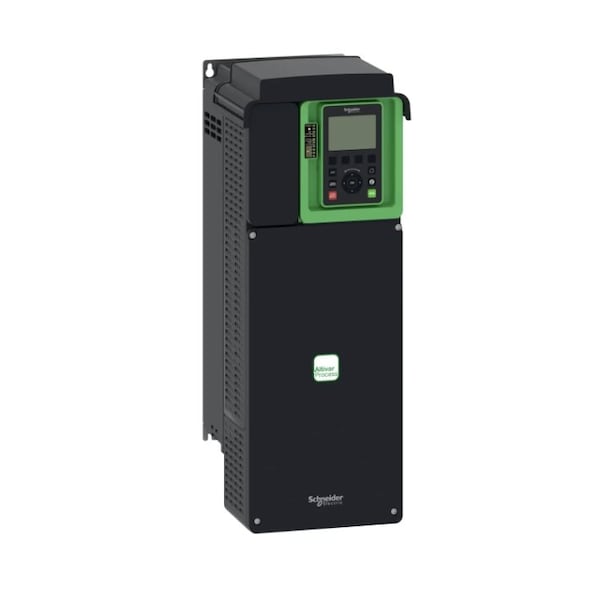

Schneider Electric Variable Frequency Drive, 30 HP, 58.8A ATV630D22N4 - main

Variable Frequency Drive, 30 HP, 58.8A

  • Mfr # ATV630D22N4

  • Zoro # G0211552

product price: $5,733.99
/ea
Free Shipping & Returns

Key Features

Key Pad Lockout
None
Depth
9.13 in
Output Phase AC
Three
With Bypass / No Bypass
No Bypass
Input Frequency
50/60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV630D22N4
Zoro #
G0211552
UPC #
785901376019
Country of Origin
India

Dimensions

Depth
9.13 in
Width
8.31 in
Height
21.5 in
Overall Depth
9 1/8 in
Overall Height
21 1/2 in
Overall Width
8 3/8 in

Details

Key Pad Lockout
None
Item
Variable Speed Drive
Output Phase AC
Three
With Bypass / No Bypass
No Bypass
Input Frequency
50/60 Hz
Adjustable Acceleration Time
0.01 to 9,999 sec
Control Type
Keypad, Remote Keypad, Terminal, Digital Communication Network
Display Type
LCD
Accepts Input Control Signal
Yes
With Line Contactor / No Line Contactor
With Line Contactor
Control Method
Keypad, Remote Keypad, Terminal, Digital Communication Network
Input Voltage
480V AC
Max. HP
30 hp
Adjustable Deceleration Time
0.01 to 9,999 sec
Start/Stop Control
Programmable
Max. Output Amps
58.8 A
Digital Readout
Yes
Output Frequency Range
0.1 to 500 Hz
Dynamic Braking
No
Output Voltage
480V AC
Protection
Motor Phase Break, Overcurrent, Overheating, Overspeed, Overvoltage's, Safe Torque Off, Short-circuit Protection, Thermal Protection, Undervoltage
Standards
UL 508C, EN/IEC 61800-3, Environment 1 category C2 EN/IEC 61800-3, Environment 2 category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, IEC 13849-1
Input Phase AC
Three
Enclosure
Totally Enclosed
For Use With
Synchronous, Asynchronous Motors and Special Motors From 800kW to 1.5MW
Displays
LCD Keypad
Series
Altivar Process ATV600 Variable Speed Drives
Number of Inputs
(3) Analog; (8) Discrete
Output Type
Analog, Discrete
Number of Outputs
(2) Analog; (3) Relay
Torque Application
Constant Torque, Variable Torque
Maximum Output Power
30 hp
Color
Black
Style
Compact
Maximum Output Current
46.3 A
Brake Chopper Included
No
Output Voltage Range
380V AC to 480V AC
Input Voltage Range
380 to 480V AC
Enclosure Rating
NEMA 1
Ethernet Port Included
Yes
Input Type
Analog, Discrete
Application
Industrial Process and Utilities

Description

Variable Speed Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 30 hp, Maximum Output Current 46.3 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0.1 to 500 Hz, Enclosure Rating NEMA 1
