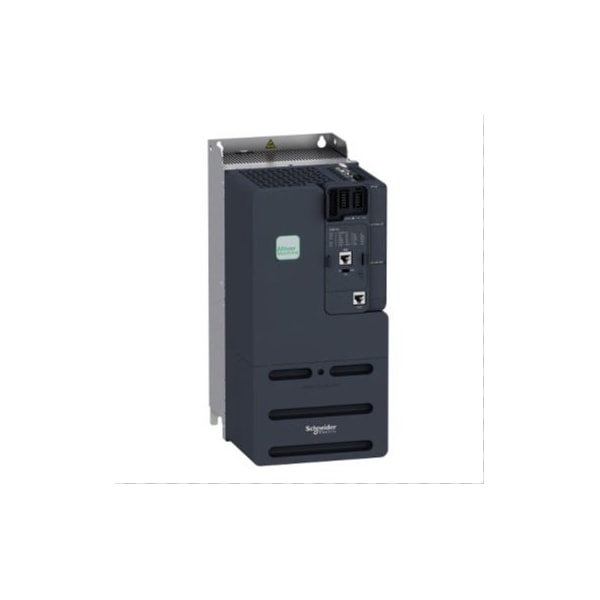

Schneider Electric Variable Frequency Drive, 40 hp, 480V AC ATV340D22N4 - main

Variable Frequency Drive, 40 hp, 480V AC

  • Mfr # ATV340D22N4

  • Zoro # G0196719

product price: $4,423.99
/ea
Free Shipping & Returns

Key Features

Max. Output Amps
68.5 A, 69 A, 83 A, 83.7 A
Input Phase AC
Three
Input Frequency
50/60 Hz
Digital Readout
No
Control Method
Variable Torque Standard, Optimized Torque Mode, Constant Torque Standard
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV340D22N4
Zoro #
G0196719
UPC #
785901711711
Country of Origin
Indonesia

Dimensions

Height
15.16 in
Width
7.09 in
Depth
9.8 in
Overall Height
5 1/8 in
Overall Depth
9 3/4 in
Overall Width
7 1/8 in

Details

Item
Variable Speed Drive
Max. Output Amps
68.5 A, 69 A, 83 A, 83.7 A
Input Phase AC
Three
Input Frequency
50/60 Hz
Digital Readout
No
Control Method
Variable Torque Standard, Optimized Torque Mode, Constant Torque Standard
Dynamic Braking
No
For Use With
Three-phase supply voltage: 380...480 V 50/60 Hz
Protection
Break on the control circuit, DC Bus overvoltage, Exceeding limit speed, Input supply loss, Line supply overvoltage, Line supply undervoltage, Motor phase loss, Output overcurrent between motor phase and earth, Output overcurrent between motor phases, Overcurrent, Overheating, Safe torque off, Short-circuit between motor phase and earth, Short-circuit between motor phases, Thermal protection
Output Voltage
480V AC
Input Voltage
480V AC
With Line Contactor / No Line Contactor
With Line Contactor
Display Type
None
Standards
EN/IEC 61800-3, Environment 1 Category C2 EN/IEC 61800-3, Environment 2 Category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 618000-5-1
Max. HP
30 hp, 40 hp
Maximum Output Power
40 hp
Brake Chopper Included
Yes
With Bypass / No Bypass
No Bypass
Maximum Output Current
62 A
Adjustable Deceleration Time
0.01 to 9,999 sec
Enclosure
Open
Torque Application
Constant Torque, Variable Torque
Series
Altivar Machine ATV340
Output Frequency Range
0.1 to 599 Hz
Application
Industrial Process and Utilities
Number of Inputs
(2) Analog; (1) Discrete; (3) Relay
Input Voltage Range
380 to 480V AC
Displays
None
Enclosure Rating
NEMA 1
Adjustable Acceleration Time
0.01 to 9,999 sec
Output Voltage Range
323V AC to 528V AC
Ethernet Port Included
No
Style
Modular
Color
Black
Output Phase AC
Three
Start/Stop Control
Programmable
Output Type
Analog, Discrete
Number of Outputs
(3) Analog; (8) Discrete
Key Pad Lockout
None
Input Type
Analog, Discrete

Description

Variable Speed Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 40 hp, Maximum Output Current 62 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0.1 to 599 Hz, Enclosure Rating NEMA 1
