Variable Frequency Drive, 50 HP, 575-690V

This item is Discontinued.

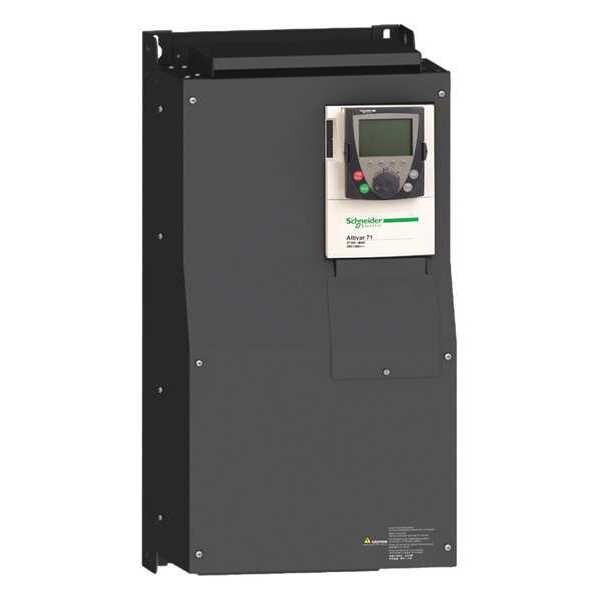

Schneider Electric Variable Frequency Drive, 50 HP, 575-690V ATV71HD37Y

Variable Frequency Drive, 50 HP, 575-690V (Discontinued)

Mfr # ATV71HD37Y
Zoro # G0105187

Get a 10% off coupon

Free 30-day returns

Get 30 days to pay with Net 30

Real support from real people

Specifications

Product Information

MFR #

ATV71HD37Y

Zoro #

G0105187

UPC #

785901749165

Country of Origin

France

Dimensions

Overall Height

24 7/8 in

Overall Width

12 5/8 in

Overall Depth

11 1/2 in

Details

Item

Variable Speed Drive

Max. HP

50 hp

Input Voltage

500 to 690V AC

Output Voltage

690V AC

Input Phase AC

Three

Enclosure

Open

Max. Output Amps

52 A

Output Phase AC

Three

With Bypass / No Bypass

No Bypass

With Line Contactor / No Line Contactor

No Line Contactor

Control Type

Keypad, Remote

Start/Stop Control

Programmable

Accepts Input Control Signal

Yes

Protection

Against Exceeding Limit Speed: Drive, Against Input Phase Loss: Drive, Break on the Control Circuit: Drive, Input Phase Breaks: Drive, Line Supply Overvoltage: Drive, Line Supply Undervoltage: Drive, Motor Phase Break: Motor, Overcurrent Between Output Phases and Earth: Drive overheating Protection: Drive, Overvoltage's on the Dc Bus: Drive, Power Removal: Motor, Short-Circuit Between Motor Phases: Drive, Thermal Protection: Drive, Thermal Protection: Motor

Input Frequency

50/60 Hz

Dynamic Braking

Yes

Displays

LCD

Key Pad Lockout

None

Digital Readout

Yes

Standards

UL Type 1, EN 61800-3 Environments 1 Category C3, EN/IEC 61800-3, EN/IEC 61800-5-1, EN 61800-3 Environments 2 Category C3, EN 55011 Class A Group 2, IEC 60721-3-3 Class 3C2

Output Frequency Range

0.1 to 500 Hz

Display Type

LCD

Control Method

Keypad, Remote

Adjustable Deceleration Time

0.01 to 9,999 sec

Adjustable Acceleration Time

0.01 to 9,999 sec

Maximum Output Current

41 A, 43 A, 47 A

Application

Complex, High-Power Machines

Maximum Output Power

40 hp

Description

Variable Speed Drive, Input Voltage 500 to 690V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 40 hp, Maximum Output Current 41 A, 43 A, 47 A, Output Voltage 690V AC, Output Phase AC Three, Output Frequency Range 0.1 to 500 Hz
