Shop SCHNEIDER ELECTRIC

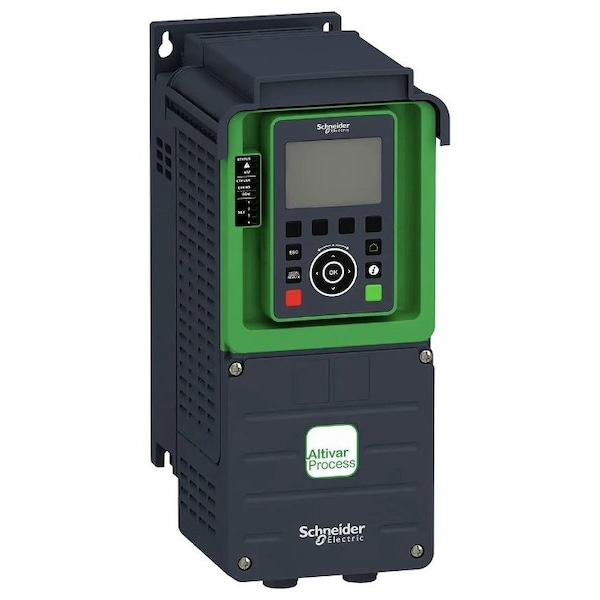

Variable Frequency Drive, 7-1/2 HP, 14A

  • Mfr # ATV630U55N4

  • Zoro # G0211780

product price:  $2,586.99
/ea
Free Shipping & Returns

Key Features

Key Pad Lockout
None
Output Voltage
480V AC
Output Frequency Range
0.1 to 500 Hz
Depth
7.99 in
Dynamic Braking
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ATV630U55N4
Zoro #
G0211780
UPC #
785901994190
Country of Origin
Indonesia

Dimensions

Depth
7.99 in
Height
13.78 in
Width
5.67 in
Overall Depth
8 in
Overall Height
13 3/4 in
Overall Width
5 5/8 in

Details

Key Pad Lockout
None
Output Voltage
480V AC
Output Frequency Range
0.1 to 500 Hz
Dynamic Braking
No
Display Type
LCD
Digital Readout
Customizable Units, Energy/Pump Monitoring, Trend and Drift Analysis, Dedicated Application Functions, Graphic HMI with Real Time Clock, Red Backlight Error Detection, QR Code Assistance
Adjustable Acceleration Time
0.01 to 9,999 sec
Start/Stop Control
Programmable
For Use With
Synchronous, Asynchronous Motors and Special Motors From 800kW to 1.5MW
Output Phase AC
Three
With Line Contactor / No Line Contactor
With Line Contactor
Max. HP
7.5 hp
Accepts Input Control Signal
Yes
Protection
Break on the control circuit: drive, Line supply overvoltage: drive, Line supply phase loss: drive, Line supply undervoltage: drive, Motor phase break: drive, Motor phase break: motor, Overcurrent between output phases and earth: drive, Overheating: drive, Overload of output voltage: drive, Overspeed: drive, Overvoltage's on the DC bus: drive, Safe torque off: drive, Safe torque off: motor, Short-circuit protection: drive, Thermal protection: drive, Thermal protection: motor
Enclosure
Totally Enclosed
Adjustable Deceleration Time
0.01 to 9,999 sec
Input Voltage
480V AC
Input Phase AC
Three
Displays
Customizable Units, Energy/Pump Monitoring, Trend and Drift Analysis, Dedicated Application Functions, Graphic HMI with Real Time Clock, Red Backlight Error Detection, QR Code Assistance
Standards
UL 508C, EN/IEC 61800-3, Environment 1 Category C2 EN/IEC 61800-3, Environment 2 category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, IEC 13849-1
Max. Output Amps
14 A
Control Type
Keypad, Remote Keypad, Terminal, Digital Communication Network
Item
Variable Frequency Drive
Input Frequency
60/50 Hz
With Bypass / No Bypass
No Bypass
Control Method
Keypad, Remote Keypad, Terminal, Digital Communication Network
Output Voltage Range
380V AC to 480V AC
Output Type
Analog
Input Type
Analog, Digital
Number of Inputs
(3) Analog; (8) Discrete
Series
Altivar Process ATV600 Variable Speed Drives
Brake Chopper Included
No
Input Voltage Range
380 to 480V AC
Enclosure Rating
NEMA 1
Maximum Output Current
12.7 A
Ethernet Port Included
Yes
Style
Compact
Maximum Output Power
7 1/2 hp
Application
Process and Utilities
Number of Outputs
(2) Analog; (3) Relay
Color
Black
Torque Application
Constant Torque, Variable Torque
Bypass Design
No Bypass
Output Frequency - Maximum
0.1 Hz
Product Type
Variable Frequency Drive
Output Phase
Three
IP Rating
IP21
Includes Brake Chopper
No
Number of Inputs - Analog
3
Includes Ethernet Port
Yes
NEMA Rating
NEMA 1
Line Contactor Design
With Line Contactor
Output Current - Maximum
12.7 A
Output Frequency - Minimum
500 Hz
Keypad Lockout
None
Output Horsepower
7 1/2 hp
Input Phase
Three
Number of Outputs - Relay
3
Number of Outputs - Analog
2

Description

Variable Frequency Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 60/50 Hz, Maximum Output Power 7 1/2 hp, Maximum Output Current 12.7 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0.1 to 500 Hz, Enclosure Rating NEMA 1
