  11. Variable Frequency Drive, 7 hp, 480V AC

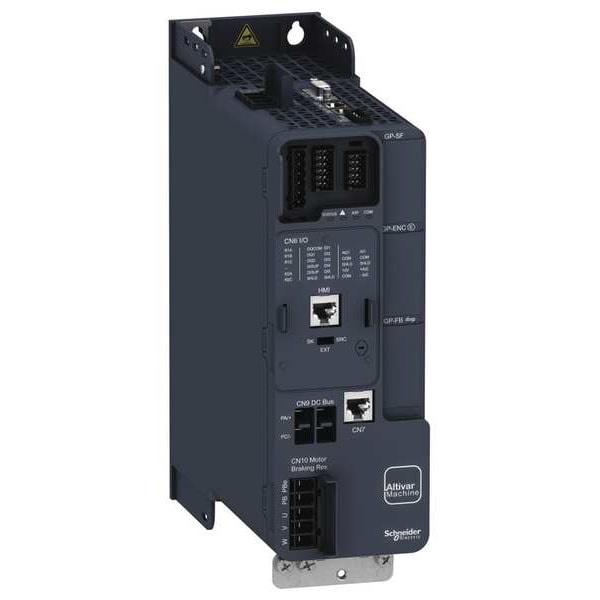

Schneider Electric Variable Frequency Drive, 7 hp, 480V AC ATV340U40N4 - main

Variable Frequency Drive, 7 hp, 480V AC

  • Mfr # ATV340U40N4

  • Zoro # G0200368

product price: $1,244.99
/ea
Free Shipping & Returns

Key Features

Width
3.35 in
Height
10.63 in
Display Type
None
Depth
9.15 in
Input Frequency
50/60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV340U40N4
Zoro #
G0200368
UPC #
785901660774
Country of Origin
Indonesia

Dimensions

Width
3.35 in
Height
10.63 in
Depth
9.15 in
Overall Height
10 5/8 in
Overall Width
3 3/8 in
Overall Depth
9 1/8 in

Details

Item
Variable Speed Drive
Display Type
None
Input Frequency
50/60 Hz
Standards
EN/IEC 61800-3, Environment 1 Category C2 EN/IEC 61800-3, Environment 2 Category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 618000-5-1
For Use With
Three-phase supply voltage: 380...480 V 50/60 Hz
Input Voltage
480V AC
Output Voltage
480V AC
Dynamic Braking
No
Input Phase AC
Three
Digital Readout
No
Max. Output Amps
14 A, 16.7 A, 17.1 A
Protection
Break on the control circuit, DC Bus overvoltage, Exceeding limit speed, Input supply loss, Line supply overvoltage, Line supply undervoltage, Motor phase loss, Output overcurrent between motor phase and earth, Output overcurrent between motor phases, Overcurrent, Overheating, Safe torque off, Short-circuit between motor phase and earth, Short-circuit between motor phases, Thermal protection
Control Method
Constant Torque Standard, Optimized Torque Mode, Variable Torque Standard
With Line Contactor / No Line Contactor
With Line Contactor
Max. HP
5 hp, 7 hp
Output Phase AC
Three
Brake Chopper Included
Yes
Style
Modular
Enclosure Rating
NEMA 1
Ethernet Port Included
No
Number of Outputs
(3) Analog; (8) Discrete
Maximum Output Current
12.7 A
Series
Altivar Machine ATV340
Input Type
Analog, Discrete
Enclosure
Open
Key Pad Lockout
None
Displays
None
Start/Stop Control
Programmable
Adjustable Acceleration Time
0.01 to 9,999 sec
Torque Application
Constant Torque, Variable Torque
Input Voltage Range
380 to 480V AC
Output Type
Analog, Discrete
With Bypass / No Bypass
No Bypass
Color
Black
Number of Inputs
(2) Analog; (1) Discrete; (3) Relay
Output Voltage Range
323V AC to 528V AC
Output Frequency Range
0.1 to 599 Hz
Application
Industrial Process and Utilities
Adjustable Deceleration Time
0.01 to 9,999 sec
Maximum Output Power
7 hp

Description

Variable Speed Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 7 hp, Maximum Output Current 12.7 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0.1 to 599 Hz, Enclosure Rating NEMA 1
