  11. Variable Frequency Drive, 7.5HP, 208-240V, Altivar 212 AC Drive
This item is Discontinued.

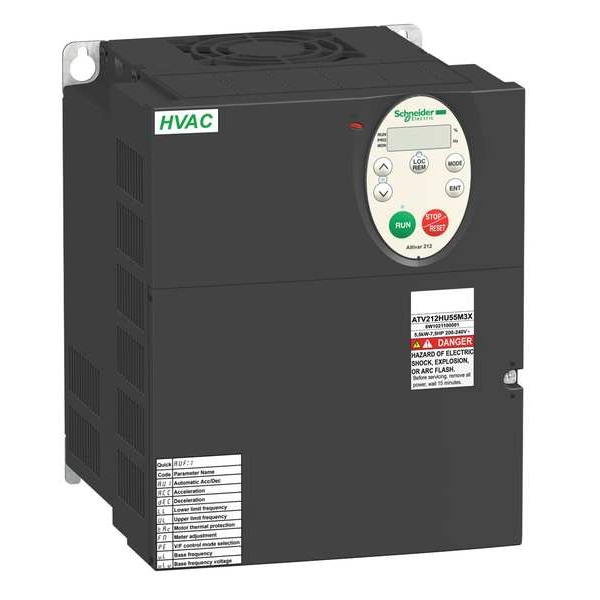

Schneider Electric Variable Frequency Drive, 7.5HP, 208-240V, Altivar 212 AC Drive ATV212HU55M3X

Variable Frequency Drive, 7.5HP, 208-240V, Altivar 212 AC Drive (Discontinued)

  • Mfr # ATV212HU55M3X
  • Zoro # G0306582
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV212HU55M3X
Zoro #
G0306582
UPC #
785901892038
Country of Origin
Indonesia

Dimensions

Width
7.09 in
Depth
6.69 in
Height
9.13 in
Overall Height
9 1/8 in
Overall Depth
6 3/4 in
Overall Width
7 1/8 in

Details

Item
Variable Speed Drive
Max. HP
7.5 hp
Input Voltage
200 to 240V AC
Output Voltage
170 to 264V AC
Input Phase AC
Three
Enclosure
Open
Max. Output Amps
24.2 A
Output Phase AC
Three
With Bypass / No Bypass
No Bypass
With Line Contactor / No Line Contactor
No Line Contactor
Start/Stop Control
Programmable
Input Frequency
50/60 Hz
Starting Torque
120%
Displays
LED
For Use With
3-Phase Inverter Duty Motor
Adjustable Acceleration Time
0.01 to 3,200 sec
Accepts Input Control Signal
Yes
Torque @ 1 Hz
110%
Display Type
LED
Control Type
Keypad, Logic Input
Standards
UL, NOM 117, C-Tick, CSA
Output Frequency Range
0.5 to 200 Hz
Dynamic Braking
No
Adjustable Deceleration Time
0.01 to 3,200 sec
Protection
Against Exceeding Limit Speed: Drive, Against Input Phase Loss: Drive, Break on the Control Circuit: Drive, Input Phase Breaks: Drive, Line Supply Overvoltage and Undervoltage: Drive, Line Supply Undervoltage: Drive, Motor Phase Break: Motor, Overcurrent Between Output Phases and Earth: drive, Overheating Protection: Drive, Overvoltage's on the DC Bus: Drive, Short-Circuit Between Motor Phases: Drive, Thermal Power Stage: Drive, Thermal Protection: Motor, With PTC Probes: Motor
Digital Readout
Hertz, Motor Current, KW, Motor Voltage, Bus Energized
Control Method
Keypad or Logic Input
Key Pad Lockout
Yes
Maximum Output Power
7 1/2 hp
Number of Inputs
2
Number of Outputs
(1) Analog; (2) Discrete
Application
Compressor for scroll Building - HV AC, Fan Building - HV AC, Pump Building - HV AC
Ethernet Port Included
No
Style
Heat Sink
Input Voltage Range
200 to 240V AC
Series
ATV212
Maximum Output Current
24.2 A
Torque Application
Constant Torque, Variable Torque
Brake Chopper Included
No
Output Voltage Range
200V AC to 240V AC
Color
Black/Blue/Gray
Input Type
Analog, Discrete
Enclosure Rating
NEMA 1
Output Type
Analog, Discrete

Description

Variable Speed Drive, Input Voltage 200 to 240V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 7 1/2 hp, Maximum Output Current 24.2 A, Output Voltage 170 to 264V AC, Output Phase AC Three, Output Frequency Range 0.5 to 200 Hz, Enclosure Rating NEMA 1
