  11. Variable FrequencyDrive, 240V, Black/Green

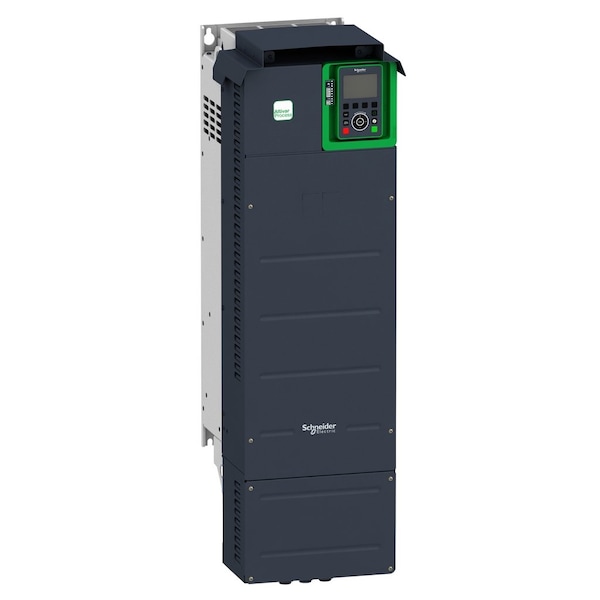

Schneider Electric Variable FrequencyDrive, 240V, Black/Green ATV930D45M3C - main

Variable FrequencyDrive, 240V, Black/Green

  • Mfr # ATV930D45M3C

  • Zoro # G513321903

product price: $10,818.99
/ea
Item requires special delivery charges. A $110.00 per item surcharge will be applied.

Key Features

Number of Inputs
(10) Digital, (3) Analog
Number of Outputs
(2) Analog, (2) Digital
Input Voltage
240V
Output Type
Analog, Digital
Standards
CE Certified, CSA Certified, IEC 13849-1, IEC 60721-3, IEC 61000-3-12, IEC 61508, IEC 61800-3, IEC 61800-5-1, REACH Regulation, RoHS Compliant, UL 508C, UL Listed, UV, WEEE
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV930D45M3C
Zoro #
G513321903
UPC #
3606480883705
Country of Origin
India

Dimensions

Overall Width
11 3/8 in
Overall Depth
12 7/8 in
Overall Height
36 1/4 in

Details

Item
Variable Frequency Drive
Number of Inputs
(10) Digital, (3) Analog
Number of Outputs
(2) Analog, (2) Digital
Input Voltage
240V
Output Type
Analog, Digital
Standards
CE Certified, CSA Certified, IEC 13849-1, IEC 60721-3, IEC 61000-3-12, IEC 61508, IEC 61800-3, IEC 61800-5-1, REACH Regulation, RoHS Compliant, UL 508C, UL Listed, UV, WEEE
Adjustable Acceleration Time
0.01 to 9,999 sec
Color
Black/Green
Start/Stop Control
Programmable
Torque Application
Constant Torque, Variable Torque
Adjustable Deceleration Time
0.01 to 9,999 sec
Style
Compact
Output Voltage
240V AC
Control Method
Local and Remote
Enclosure
Open
Ethernet Port Included
Yes
Input Frequency
50/60 Hz
Output Phase AC
Three
Dynamic Braking
No
Output Voltage Range
200V AC to 240V AC
Control Type
Local and Remote
Brake Chopper Included
No
Application
Industrial
With Bypass / No Bypass
No Bypass
Input Type
Analog, Digital
Series
ATV930
Maximum Output Current
175 A
Input Phase AC
Three
Input Voltage Range
200V AC to 240V AC
With Line Contactor / No Line Contactor
With Line Contactor
Digital Readout
Output Current; Output Frequency; Output Voltage
Output Frequency Range
599 Hz
Protection
Break on the Control Circuit Drive, Line Supply Overvoltage Drive, Line Supply Phase Loss Drive, Line Supply Undervoltage Drive, Motor Phase Break Drive, Motor Phase Break Motor, Overcurrent Between Output Phases and Earth Drive, Overheating Drive, Overload of Output Voltage Drive, Overspeed Drive, Overvoltage's on the DC Bus Drive, Safe Torque Off Drive, Safe Torque Off Motor, Short-Circuit Protection Drive, Thermal Protection Drive, Thermal Protection Motor
Enclosure Rating
IP21
Maximum Output Power
60 hp

Description

Variable Frequency Drive, Input Voltage 240V, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 60 hp, Maximum Output Current 175 A, Output Voltage 240V AC, Output Phase AC Three, Output Frequency Range 599 Hz, Enclosure Rating IP21
