  11. Variable FrequencyDrive, 480V, Black/Green

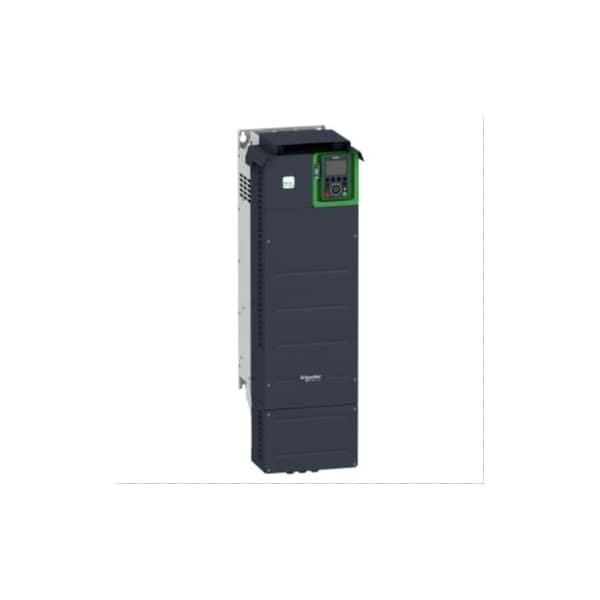

Schneider Electric Variable FrequencyDrive, 480V, Black/Green ATV930D75N4 - main

Variable FrequencyDrive, 480V, Black/Green

  • Mfr # ATV930D75N4

  • Zoro # G113302357

product price: $11,907.99
/ea
Item requires special delivery charges. A $110.00 per item surcharge will be applied.

Key Features

Protection
Break on the Control Circuit Drive, Line Supply Overvoltage Drive, Line Supply Phase Loss Drive, Line Supply Undervoltage Drive, Motor Phase Break Drive, Motor Phase Break Motor, Overcurrent Between Output Phases and Earth Drive, Overheating Drive, Overload of Output Voltage Drive, Overspeed Drive, Overvoltage's on the DC Bus Drive, Safe Torque Off Drive, Safe Torque Off Motor, Short-Circuit Protection Drive, Thermal Protection Drive, Thermal Protection Motor
Adjustable Acceleration Time
0.01 to 9,999 sec
Output Voltage
480V AC
Enclosure
Open
Digital Readout
Output Current; Output Frequency; Output Voltage
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ATV930D75N4
Zoro #
G113302357
UPC #
3606480883408
Country of Origin
United States

Dimensions

Overall Height
36 1/4 in
Overall Width
11 3/8 in
Overall Depth
12 7/8 in

Details

Protection
Break on the Control Circuit Drive, Line Supply Overvoltage Drive, Line Supply Phase Loss Drive, Line Supply Undervoltage Drive, Motor Phase Break Drive, Motor Phase Break Motor, Overcurrent Between Output Phases and Earth Drive, Overheating Drive, Overload of Output Voltage Drive, Overspeed Drive, Overvoltage's on the DC Bus Drive, Safe Torque Off Drive, Safe Torque Off Motor, Short-Circuit Protection Drive, Thermal Protection Drive, Thermal Protection Motor
Adjustable Acceleration Time
0.01 to 9,999 sec
Output Voltage
480V AC
Enclosure
Open
Digital Readout
Output Current; Output Frequency; Output Voltage
Start/Stop Control
Programmable
With Line Contactor / No Line Contactor
With Line Contactor
Input Phase AC
Three
Output Frequency Range
599 Hz
With Bypass / No Bypass
No Bypass
Input Voltage
480V
Item
Variable Frequency Drive
Control Method
Local and Remote
Input Frequency
50/60 Hz
Control Type
Local and Remote
Adjustable Deceleration Time
0.01 to 9,999 sec
Output Phase AC
Three
Dynamic Braking
Yes
Standards
CE Certified, CSA Certified, IEC 13849-1, IEC 60721-3, IEC 61000-3-12, IEC 61508, IEC 61800-3, IEC 61800-5-1, REACH Regulation, RoHS Compliant, UL 508C, UL Listed, UV, WEEE
Ethernet Port Included
Yes
Number of Inputs
(10) Digital, (3) Analog
Application
Industrial
Brake Chopper Included
Yes
Input Voltage Range
380V AC to 480V AC
Output Type
Analog, Digital
Input Type
Analog, Digital
Number of Outputs
(2) Analog, (2) Digital
Torque Application
Constant Torque, Variable Torque
Output Voltage Range
380V AC to 480V AC
Series
ATV930
Color
Black/Green
Maximum Output Current
145 A
Style
Compact
Maximum Output Power
100 hp
Enclosure Rating
IP21

Description

Variable Frequency Drive, Input Voltage 480V, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 100 hp, Maximum Output Current 145 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 599 Hz, Enclosure Rating IP21
