  11. Variable FrequencyDrive, 500V, Black/Green

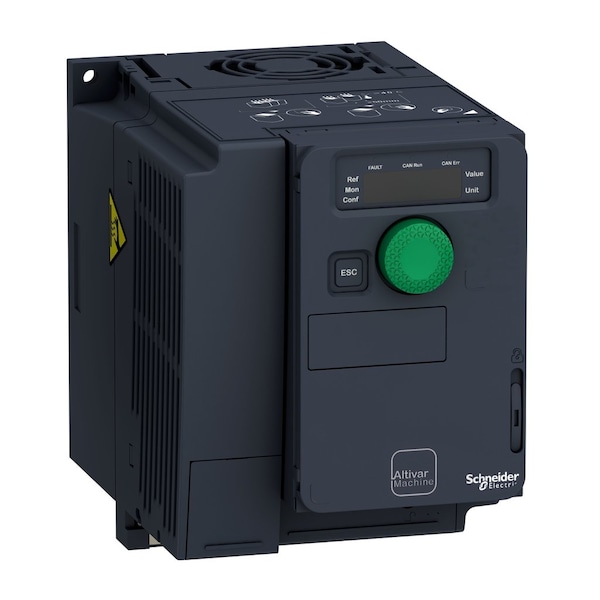

Schneider Electric Variable FrequencyDrive, 500V, Black/Green ATV320U07N4C - main

Variable FrequencyDrive, 500V, Black/Green

  • Mfr # ATV320U07N4C

  • Zoro # G015223019

product price: $542.99
/ea
Free Shipping & Returns

Key Features

Start/Stop Control
Programmable
Output Frequency Range
0.599 kHz
Input Phase AC
Three
Output Voltage
500V AC
Protection
Input Phase Breaks Drive, Overcurrent Between Output Phases and Earth Drive, Overheating Protection Drive, Short-Circuit Between Motor Phases Drive, Thermal Protection Drive
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV320U07N4C
Zoro #
G015223019
UPC #
3606480966736
Country of Origin
France

Dimensions

Overall Width
4 1/8 in
Overall Height
5 5/8 in
Overall Depth
6 1/4 in

Details

Start/Stop Control
Programmable
Output Frequency Range
0.599 kHz
Input Phase AC
Three
Output Voltage
500V AC
Protection
Input Phase Breaks Drive, Overcurrent Between Output Phases and Earth Drive, Overheating Protection Drive, Short-Circuit Between Motor Phases Drive, Thermal Protection Drive
Enclosure Rating
IP20
Input Voltage
500V
Output Type
Analog, Digital
Input Voltage Range
380V AC to 500V AC
Color
Black/Green
Item
Variable Frequency Drive
Control Method
Remote
Number of Outputs
(1) Analog, (3) Digital
Maximum Output Power
1 hp
Application
Complex Machines
Torque Application
Constant Torque, Variable Torque
Dynamic Braking
Yes
Displays
LED
Digital Readout
Output Current; Output Frequency; Output Voltage
Standards
ATEX, CE Certified, CSA Certified, EAC, GOST, IEC 61800-5-1, KC, NOM, RCM, REACH Regulation, RoHS Compliant, UL Listed
Maximum Output Current
2.3 A
Input Type
Analog, Digital
Number of Inputs
(3) Analog, (7) Digital
Output Phase AC
Three
Enclosure
Open
Style
Compact
Display Type
LED
Output Voltage Range
380V AC to 500V AC
Brake Chopper Included
Yes
Control Type
Remote
Input Frequency
50/60 Hz
With Bypass / No Bypass
No Bypass
Series
ATV320
Ethernet Port Included
Yes
With Line Contactor / No Line Contactor
With Line Contactor

Description

Variable Frequency Drive, Input Voltage 500V, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 1 hp, Maximum Output Current 2.3 A, Output Voltage 500V AC, Output Phase AC Three, Output Frequency Range 0.599 kHz, Enclosure Rating IP20
