  11. Variable FrequencyDrive, 690V, Black/Green

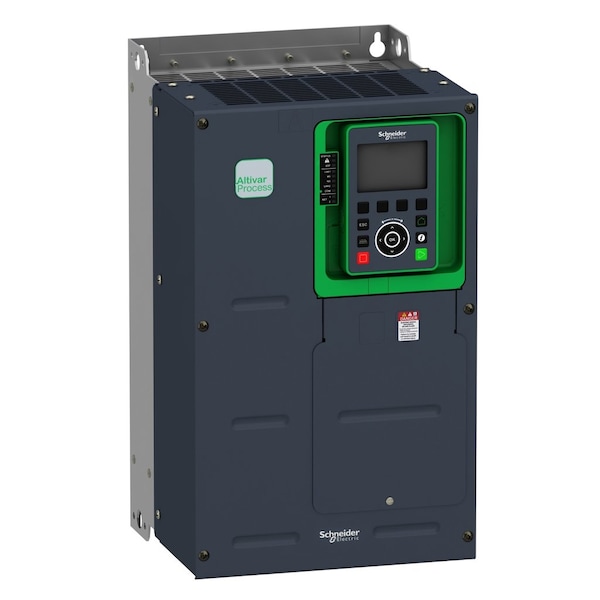

Schneider Electric Variable FrequencyDrive, 690V, Black/Green ATV930U75Y6 - main

Variable FrequencyDrive, 690V, Black/Green

  • Mfr # ATV930U75Y6

  • Zoro # G613302284

product price: $3,217.99
/ea
Free Shipping & Returns

Key Features

Protection
Break on the Control Circuit Drive, Line Supply Overvoltage Drive, Line Supply Phase Loss Drive, Line Supply Undervoltage Drive, Motor Phase Break Drive, Motor Phase Break Motor, Overcurrent Between Output Phases and Earth Drive, Overheating Drive, Overload of Output Voltage Drive, Overspeed Drive, Overvoltage's on the DC Bus Drive, Safe Torque Off Drive, Safe Torque Off Motor, Short-Circuit Protection Drive, Thermal Protection Drive, Thermal Protection Motor
Input Frequency
50/60 Hz
Output Phase AC
Three
Input Phase AC
Three
Digital Readout
Output Current; Output Frequency; Output Voltage
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ATV930U75Y6
Zoro #
G613302284
UPC #
3606481325280
Country of Origin
India

Dimensions

Overall Width
9 5/8 in
Overall Height
16 1/2 in
Overall Depth
9 1/2 in

Details

Protection
Break on the Control Circuit Drive, Line Supply Overvoltage Drive, Line Supply Phase Loss Drive, Line Supply Undervoltage Drive, Motor Phase Break Drive, Motor Phase Break Motor, Overcurrent Between Output Phases and Earth Drive, Overheating Drive, Overload of Output Voltage Drive, Overspeed Drive, Overvoltage's on the DC Bus Drive, Safe Torque Off Drive, Safe Torque Off Motor, Short-Circuit Protection Drive, Thermal Protection Drive, Thermal Protection Motor
Input Frequency
50/60 Hz
Output Phase AC
Three
Input Phase AC
Three
Digital Readout
Output Current; Output Frequency; Output Voltage
Control Method
Local and Remote
Input Voltage
690V
Adjustable Deceleration Time
0.01 to 9,999 sec
Item
Variable Frequency Drive
Standards
CE Certified, CSA Certified, IEC 13849-1, IEC 60721-3, IEC 61000-3-12, IEC 61508, IEC 61800-3, IEC 61800-5-1, REACH Regulation, RoHS Compliant, UL 508C, UL Listed, UV, WEEE
Output Frequency Range
599 Hz
With Line Contactor / No Line Contactor
With Line Contactor
With Bypass / No Bypass
No Bypass
Output Voltage
690V AC
Adjustable Acceleration Time
0.01 to 9,999 sec
Enclosure
Open
Dynamic Braking
Yes
Control Type
Local and Remote
Start/Stop Control
Programmable
Number of Outputs
(2) Analog, (2) Digital
Number of Inputs
(10) Digital, (3) Analog
Series
ATV930
Torque Application
Constant Torque, Variable Torque
Output Type
Analog, Digital
Ethernet Port Included
Yes
Output Voltage Range
500V AC to 690V AC
Brake Chopper Included
Yes
Application
Industrial
Input Type
Analog, Digital
Input Voltage Range
500V AC to 690V AC
Maximum Output Power
10 hp
Maximum Output Current
9.5 A
Color
Black/Green
Style
Compact
Enclosure Rating
IP21

Description

Variable Frequency Drive, Input Voltage 690V, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 10 hp, Maximum Output Current 9.5 A, Output Voltage 690V AC, Output Phase AC Three, Output Frequency Range 599 Hz, Enclosure Rating IP21
