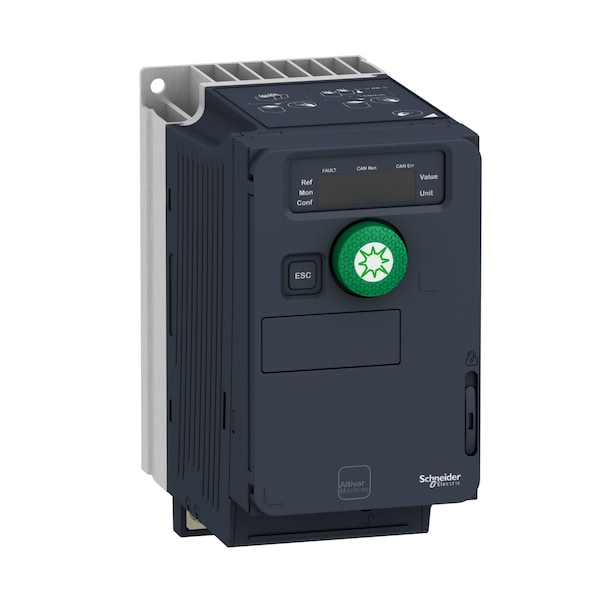

Schneider Electric Variable Speed Drive, 5.625" H, 200/240V ATV320U06M2C412 - main

Variable Speed Drive, 5.625" H, 200/240V

  • Mfr # ATV320U06M2C412

  • Zoro # G716312951

product price: $459.99
/ea
Free Shipping & Returns

Key Features

With Line Contactor / No Line Contactor
No Line Contactor
Accepts Input Control Signal
Remote Contact
Input Phase AC
Single
Output Phase AC
Three
Standards
IEC 61800-5-1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATV320U06M2C412
Zoro #
G716312951
UPC #
3606486835746
Country of Origin
Indonesia

Dimensions

Overall Width
2 3/4 in
Overall Height
5 5/8 in
Overall Depth
5 3/8 in

Details

With Line Contactor / No Line Contactor
No Line Contactor
Accepts Input Control Signal
Remote Contact
Input Phase AC
Single
Item
Variable Speed Drive
Output Phase AC
Three
Standards
IEC 61800-5-1
Input Voltage
200 to 240V
Protection
Input Phase Breaks Drive, Overcurrent Between Output Phases and Earth Drive, Overheating Protection Drive, Short-Circuit Between Motor Phases Drive, Thermal Protection
Digital Readout
Output Current
Output Voltage
240V
Control Method
Remote
Start/Stop Control
Manual
With Bypass / No Bypass
No Bypass
Enclosure
Totally Enclosed
Display Type
LED
Input Frequency
50 to 60 Hz
Adjustable Acceleration Time
0.01 to 6,000 sec
Displays
LED
Adjustable Deceleration Time
0.01 to 6,000 sec
Application
Pumping
Output Frequency Range
0 to 0.599 kHz
Control Type
Remote
Enclosure Rating
IP20
Input Type
Analog, Digital
Brake Chopper Included
Yes
Output Type
Analog, Digital
Style
Compact
Torque Application
Variable Torque
Maximum Output Power
3/4 hp
Series
Altivar Solar
Maximum Output Current
3.7 A
Number of Inputs
(3) Analog; (6) Discrete
Number of Outputs
(2) Relay; (3) Discrete; Analog

Description

Variable Speed Drive, Input Voltage 200 to 240V, Input Phase AC Single, Input Frequency 50 to 60 Hz, Maximum Output Power 3/4 hp, Maximum Output Current 3.7 A, Output Voltage 240V, Output Phase AC Three, Output Frequency Range 0 to 0.599 kHz, Enclosure Rating IP20

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
