  13. Voltage control relay, Harmony Control Relays, 8A, 2CO, overvoltage or undervoltage detection, 15.500V AC DC, 24.240V AC DC

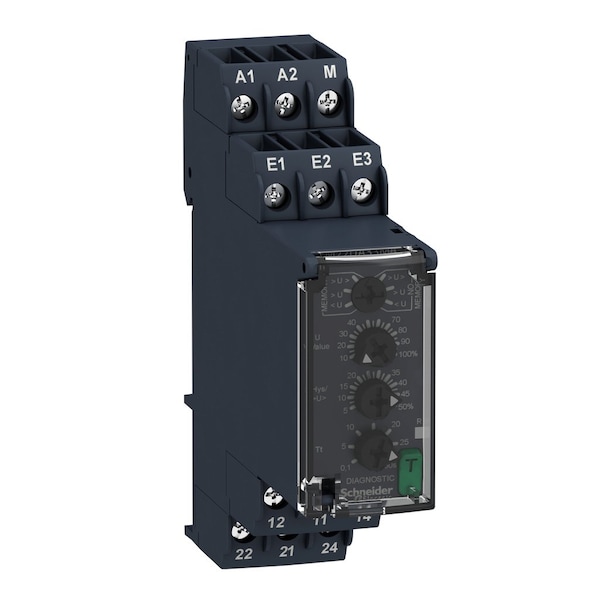

Schneider Electric Voltage control relay, Harmony Control Relays, 8A, 2CO, overvoltage or undervoltage detection, 15.500V AC DC, 24.240V AC DC RM22UA33MR - main

Voltage control relay, Harmony Control Relays, 8A, 2CO, overvoltage or undervoltage detection, 15.500V AC DC, 24.240V AC DC

  • Mfr # RM22UA33MR

  • Zoro # G5957139

product price: $156.58
/ea
Free Shipping & Returns

Key Features

Phase
1 phase
Standards
EN/IEC 60255-1
Width
22.5 mm
Supply Circuit Type
DC
Relay Type
voltage control relay
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RM22UA33MR
Zoro #
G5957139
UPC #
-
Country of Origin
Indonesia

Dimensions

Width
22.5 mm

Details

Phase
1 phase
Item
Volt Mon Relay,24-240VAC In,15-500VAC/V
Standards
EN/IEC 60255-1
Supply Circuit Type
DC
Relay Type
voltage control relay
Nominal Output Current
8A
Electrical Durability
100000 cycles
Mechanical Durability
10000000 cycles
Product Certifications
RCM || UL || EAC || CSA || CE || GL || CCC
Contacts Material
cadmium free
Mounting Support
35 mm DIN rail conforming to EN/IEC 60715
Ambient Air Temperature For Storage
-40-70°C
Relay Monitored Parameters
undervoltage and overvoltage in window mode || overvoltage or undervoltage detection
Pollution Degree
3 IEC 60664-1
Minimum Switching Current
10 mA 5 V DC
Power Consumption In Va
3.5-3.5 VA AC
Measurement Range
15...500 V voltage AC/DC 50/60 Hz
Relative Humidity
93-97 % 25-55°C IEC 60068-2-30
Insulation
between supply and measurement
Tightening Torque
0.6-1 N.m IEC 60947-1
Response Time
<= 500 ms
Connections - Terminals
screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end || screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end
Maximum Power Consumption In W
1.5 W DC
Maximum Switching Voltage
250 V AC
Run-Up Delay At Power-Up
600 ms
Immunity To Microbreaks
10 ms
Maximum Measuring Cycle
100 ms measurement cycle as true rms value
Contacts Type And Composition
2 C/O
Measurement Error
< 1 % over the whole range with voltage variation || 0.05 %/°C with temperature variation
Housing Material
self-extinguishing plastic
Dielectric Test Voltage
2.5 kV AC 50 Hz, 1 min IEC 60255-27
Repeat Accuracy
+/- 0.5 % input and measurement circuit || +/- 2 % time delay
Functionality
undervoltage and overvoltage in window mode
Resistance Across Terminals
150 kOhm E2-M terminals || 300 kOhm E1-M terminals || 500 kOhm E3-M terminals
Switching Capacity In Va
2000 VA
Shock Resistance
15 gn 11 ms) not in operation IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
Maximum Switching Current
8 A AC
Compatibility Code
RM22
Output Contacts
2 C/O
Hysteresis
3-3 % fixed full scale for window mode || 5-50 % adjustable threshold setting
Relay Name
RM22UA
Electromagnetic Compatibility
immunity for residential, commercial and light-industrial environments EN/IEC 61000-6-1 || immunity for industrial environments EN/IEC 61000-6-2 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || emission standard for industrial environments EN/IEC 61000-6-4 || electrostatic discharge 6 kV contact discharge)level 3 IEC 61000-4-2 || electrostatic discharge 8 kV air discharge)level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test 10 V/mlevel 3 IEC 61000-4-3 || electrical fast transient/burst immunity test 4 kV direct)level 4 IEC 61000-4-4 || electrical fast transient/burst immunity test 2 kV capacitive coupling)level 4 IEC 61000-4-4 || surge immunity test 4 kV common mode)level 4 IEC 61000-4-5 || surge immunity test 2 kV differential mode)level 4 IEC 61000-4-5 || conducted and radiated emissionsclass B group 1 CISPR 11 || conducted and radiated emissionsclass B CISPR 22
Product Or Component Type
voltage control relay
Ip Degree Of Protection
IP20 IEC 60529 terminals) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)
Overvoltage Category
III IEC 60664-1
Ambient Air Temperature For Operation
-20-50°C 60 Hz || -20-60°C 50 Hz
[Us] Rated Supply Voltage
24...240 V AC/DC 50/60 Hz
Time Delay Type
adjustable 0.1...30 s, +/- 10 % of the full scale value on crossing the threshold Tt
Vibration Resistance
0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 || 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 || 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 || 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6
Utilisation Category
AC-15 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || AC-1 IEC 60947-4-1 || DC-1 IEC 60947-4-1
Insulation Resistance
> 100 MOhm 500 V DC
Supply Voltage Limits
20.4-264 V AC/DC
Reset Time
1500 ms at maximum voltage
Control Type
with test button
Range of Product
Harmony Control Relays

Description

Volt Mon Relay,24-240VAC In,15-500VAC/V
