- MFR #
- RM17UBE16
- Zoro #
- G3456398
- UPC #
- 785901341277
- Country of Origin
- Indonesia

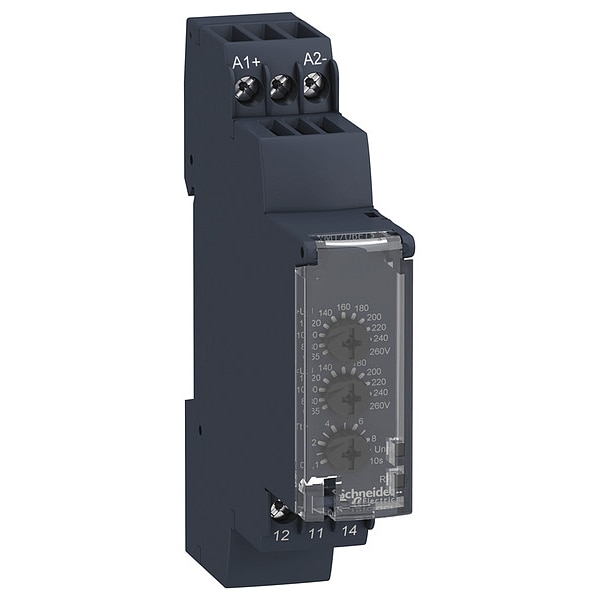

- Item - Relay
- Voltage Sensing Relay
- AC Contact Rating - Relay
- 5A @ 24/48V
- DC Contact Rating - Relay
- 5A @ 24 to 48V
- Number of Pins - Relay
- 6
- Mounting - Relay
- DIN Rail
- Pick Up Range
- 15 to 100V AC/DC
- Drop-Out Range
- +/- 10%
- Item
- Voltage Sensing Relay
- Trip Delay
- 0.10 to 10 sec
- Input Voltage
- 24 to 48V AC/DC
- Maximum Switching Capacity
- 1,250 VA
- Current Rating
- 5 A
- Weight
- 0.08 kg
- Frequency
- 50/60 Hz
- Minimum Switching Current
- 10 mA
- Base Shape
- Square
- Mechanical Operating Durability
- 30,000,000
- Maximum Operating Temperature
- 158 Degrees F
- Power Consumption
- 3.9 VA
- Electrical Operating Durability
- 100,000
- Maximum Switching Current
- 5 A
- Number of Pins
- 6
- Mounting Style
- DIN Rail
- Housing Material
- Self-Extinguishing Plastic
- Minimum Operating Temperature
- -40 Degrees F
- Contact Rating (AC)
- 5 A @ 24/48V
- IP Rating
- IP20; IP30
- Maximum Switching Voltage
- 250V AC/DC
- Contact Rating (DC)
- 5 A @ 24 to 48V
- Standards
- CCC, CE Certified, CSA Certified, EAC, EN/IEC 60255-1, GL, RCM, UL Listed
- Monitored Parameters
- Overcurrent, Undercurrent
- Quality Labels
- CE
- Connections - Terminals
screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...2 x 2.5 mm² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
- Non-Dissipating Shock Wave
- 4 kV IEC 60255-5 || 4 kV IEC 60664-1 || 4 kV IEC 61000-4-5
- Compatibility Code
- RM17
- Pollution Degree
- 3 IEC 60664-1
- Relative Humidity
- 95-95 % 55-55°C IEC 60068-2-30
- Ambient Air Temperature For Operation
- -20-50°C
- Reset Time
- 1500 ms time delay
- Relay Name
- RM17UBE
- Hysteresis
- 3-3 % fixed threshold setting
- Supply Voltage Limits
- 15-100 V AC/DC
- Electrical Durability
- 100000 cycles
- Output Contacts
- 1 C/O
- Relay Monitored Parameters
- self-powered || overvoltage and undervoltage detection
- [Ui] Rated Insulation Voltage
- 250 V IEC 60664-1 || 400 V IEC 60664-1
- Local Signalling
- for power ON LED (green) || for relay ON LED (yellow)
- Utilisation Category
- AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || DC-14 IEC 60947-5-1
- [Us] Rated Supply Voltage
- 24...48 V AC/DC 50/60 Hz +/- 10 %
- Run-Up Delay At Power-Up
- 1000 ms DC || 500 ms AC
- Electromagnetic Compatibility
- emission standard for industrial environments EN/IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || immunity for industrial environments NF EN/IEC 61000-6-2
- Mounting Support
- 35 mm symmetrical DIN rail conforming to EN/IEC 60715
- Measurement Range
- 20...80 V voltage AC 50/60 Hz || 20...80 V voltage DC
- Functionality
- overvoltage and undervoltage detection
- Measurement Accuracy
- +/- 10 % of the full scale value
- Product Specific Application
- for single-phase and DC supply
- Power Consumption In Va
- 0-3.9 VA AC
- Maximum Power Consumption In W
- 1.6 W DC
- Vibration Resistance
- 0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1
- Switching Capacity In Va
- 1250 VA
- Operating Position
- any position without derating
- Relay Type
- voltage control relay
- Mechanical Durability
- 30000000 cycles
- Ip Degree Of Protection
- IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
- Immunity To Microbreaks
- 20 ms
- Shock Resistance
- 5 gn IEC 60068-2-27
- Dielectric Test Voltage
- 2 kV AC 50 Hz, 1 min IEC 60255-5 || 2 kV AC 50 Hz, 1 min IEC 60664-1
- Measurement Error
- < 1 % over the whole range with voltage variation || 0.2 %/°C with temperature variation
- Product Certifications
- C-tick || GOST || GL || CSA || UL
- Ambient Air Temperature For Storage
- -40-70°C
- Control Circuit Frequency
- 50...60 Hz +/- 10 %
- Repeat Accuracy
- +/- 0.5 % input and measurement circuit || +/- 1 % time delay
- Overvoltage Category
- III IEC 60664-1
- Maximum Measuring Cycle
- 150 ms measurement cycle as true rms value
- Time Delay Type
- adjustable 0.1...10 s, 0 + 10 % on crossing the threshold
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- Nominal Output Current
- 5A
- Product Or Component Type
- voltage control relay
- Operating Rate
- <= 360 operations/hour full load
- Insulation Resistance
- > 500 MOhm 500 V DC IEC 60255-5 || > 500 MOhm 500 V DC IEC 60664-1
- Polarity
- non reversible polarity on DC supply
- Contacts Type And Composition
- 1 C/O
