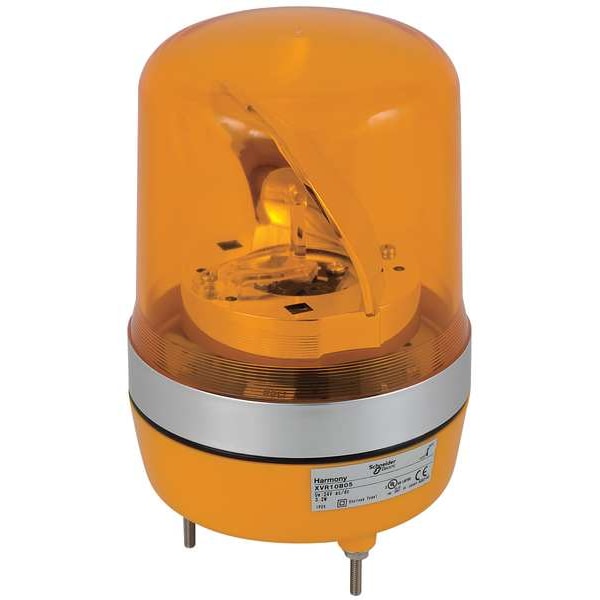

Warning Light, Orange, Rotating Mirror LED, 24V AC/DC, 20 FPM, 4 5/32 in Dia., Surface

  • Mfr # XVR10B05

  • Zoro # G1352662


product price: $222.99
/ea
Free Shipping & Returns

Key Features

Lamp Type
Rotating Mirror LED
Power Source
Wire
Lamp Life
100,000 hr
Lens Material
PMMA
Flashes per Minute
20
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XVR10B05
Zoro #
G1352662
UPC #
785901964643
Country of Origin
Indonesia

Dimensions

Height
7 1/2 in
Overall Diameter
4 5/32 in
Diameter
106 mm
Depth
6 1/8 in
Width
5 3/8 in
Overall Depth
4 5/32 in
Lead Length
400 mm

Details

Item
Warning Light
Color
Orange
Lamp Type
Rotating Mirror LED
Power Source
Wire
Lamp Life
100,000 hr
Lens Material
PMMA
Flashes per Minute
20
Housing Material
ABS
Standards
CE, EN 61000-6-2, EN 61000-6-4, RoHS, UL Listed
Voltage
24V AC/DC
Rating
IP23
Current Drawn
125mA AC/DC
Mounting
Surface
Lens Design
Dome
Includes
Prewired Cable
Operating Temp.
14 Degrees to 122 Degrees F
Light Output
4.3W
Product Type
Warning Light
IP Rating
IP23, IP55
Light Source
LED
Includes Mounting Hardware
No Mounting Hardware
Lens Color
Orange
Lifespan
100,000 hr
Lens Shape
Dome
Mounting Mechanism
Screw
Operating Temperature - Minimum
-10 Degrees F
Operating Temperature - Maximum
50 Degrees F
Mounting Style
Surface Mount
Operating Current
0.125 A
Lamp Color
Orange
Light Operating Mode
Rotating
Wattage
4.3 W
Control Protocol
Direct Wire
Operating Voltage
24V AC/DC

Description

Warning Light, Color Orange, Lamp Type Rotating Mirror LED, Flashes per Minute 20, Light Output 4.3W, Lamp Life 100,000 hr, Lens Design Dome, Lens Material PMMA, Housing Material ABS, Mounting Surface, Operating Temp. 14 Degrees to 122 Degrees F, Rating IP23, Power Source Wire, Current Drawn 125mA AC/DC, Width 5 3/8 in, Depth 6 1/8 in, Height 7 1/2 in
