- Item

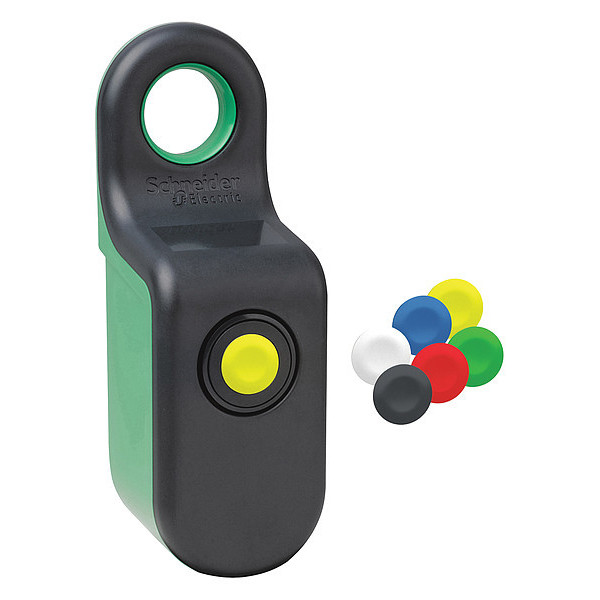

- Wireless Handy Box
- Material
- Plastic
- Color
- Green
- Standards
- CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, IP65, UL 508
- Features
- 1 Push-Button Head, 1 Transmitter with Maintained Action, Plastic Handy Box, Set of 6-Colored Push-Button Caps
- Power Rating
- 3 mW
- For Use With
- ZBRT2 Wireless Transmitter, Mobile and Static Applications
- Compatible with Manufacturer Model Number
- ZBRT2
- Compatible Product Type
- Mobile and Static Applications, Wireless Transmitters
- Compatible with Series
- XB5R
- Operating Force
- 25 N C/O changing electrical state
- Ik Degree Of Protection
- IK03 IEC 50102
- Operator Profile
- flush
- Type Of Operator
- spring return push-button with transmitter
- Shape Of Signaling Unit Head
- round
- Operator Additional Information
- set of caps
- Shock Resistance
- 25 gn 6 ms) 6000 shocks IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Fixing Collar Material
- plastic
- Product Or Component Type
- wireless and batteryless transmitter
- Mechanical Robustness
- free fall resistance 1000 mm EN/IEC 60068-2-32
- Communication Port Protocol
- Zigbee green power 2.4 GHz
- Product Certifications
- C-tick || EAC || CSA || CCC || BT 2006/95/EC || UL
- Electromagnetic Compatibility
electrostatic discharge immunity test 8 kV in free air (in insulating parts)) IEC 61000-4-2 || electrostatic discharge immunity test 4 kV on contact (on metal parts)) IEC 61000-4-2 || susceptibility to electromagnetic fields 20 V/m 80...3000 MHz) IEC 61000-4-3 || susceptibility to electromagnetic fields 6 V/m 3000...6000 MHz, distance = 20 m) IEC 61000-4-3
- Vibration Resistance
- 5 gn 11-500 Hz)IEC 60068-2-6 || +/- 10 mm 2-11 Hz)IEC 60068-2-6
- Operating Travel
- 4.3 mm total travel)
- Relative Humidity
- 95-95 % 70-70 °C without condensation
- Contact Operation
- 1 double action UP/DOWN push-buttons
- Ip Degree Of Protection
- IP65 IEC 60529 front face) || IP65 UL Type 12 front face)
- Emission Power
- 3 mW
- Ambient Air Temperature For Operation
- -25-55 °C
- Bezel Material
- plastic
- Kit Composition
- 1 handy box || 1 set of caps || 1 transmitter || 1 push-button head 22 mm || 1 fixing collars
- Acquisition Time
- 2 ms
- Maximum Sensing Distance
- 100 m in free field || 25 m transmitter in the handy box and receiver in a metal enclosure || 300 m transmitter in the handy box, receiver in metal enclosure and use relay-antenna
- Response Time
- < 2 ms
- Mechanical Durability
- 400000 cycles
- Ambient Air Temperature For Storage
- -40-70 °C
- Compatible Manufacturer Part Number
- ZBRT2
- Compatible Manufacturer Model Number
- ZBRT2
- Compatible with Manufacturer Model No.
- ZBRT2
- Compatible with Mfr. Model No.
- ZBRT2
- For Use with Mfr Model Number
- ZBRT2
- For Use With Mfr. Model Number
- ZBRT2
- Compatible Pump Manufacturer Part Number
- ZBRT2
- Compatible Mfr. Model Number
- ZBRT2
- For Manufacturer Part Number
- ZBRT2
- Compatible with Mfr. Model Number
- ZBRT2
