  11. Mortise Bolt Lock, Mortise Bolt, 1-1/4in.L

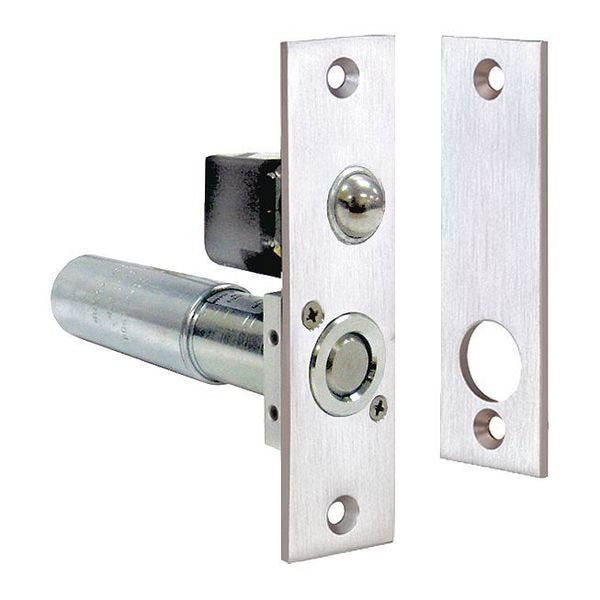

Sdc Mortise Bolt Lock, Mortise Bolt, 1-1/4in.L 160IV - main

Mortise Bolt Lock, Mortise Bolt, 1-1/4in.L

  • Mfr # 160IV

  • Zoro # G1877541

product price: $233.99
/ea
Free Shipping & Returns

Key Features

Finish
Satin Aluminum
Type
Mortise bolt
Input Voltage
12/24V DC
For Use With
Access Control
Includes
Mounting Hardware
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
160IV
Zoro #
G1877541
UPC #
-
Country of Origin
United States

Dimensions

Lock Body Length (In.)
1 1/4 in
Lock Body Width (In.)
1/4 in
Lock Body Depth (In.)
2 3/4 in
Strike Plate Width
1 1/2 in
Case Height
1 1/4 in
Case Width
1/4 in
Strike Plate Thickness
1/8 in
Case Depth
2 3/4 in

Details

Item
Deadbolt Lock
Finish
Satin Aluminum
Type
Mortise bolt
Input Voltage
12/24V DC
For Use With
Access Control
Includes
Mounting Hardware
Opening Action
Electromagnetic or Manual
Options Included
Dual Voltage
Features
Adjustable Auto Relock Switch and Bolt Assembly, Failsafe Auto Relock Switch Keeps Bolt Retracted when Door Open Door Locked when Closed
Release Delay
Instantaneous
Amp Draw @ 12V
900mA
Standards
UL Listed
Amp Draw @ 24V
450mA
Hand Orientation
Non-Handed
Includes Core
Core Not Included
Lockset Type
Electrical
Ligature-Resistant
Not Ligature-Resistant
ADA Compliant
No
Includes Hardware
Hardware Included
Voltage
12/24V DC
Product Type
Mortise Lockset
Key Type
Not Keyed
Locking/Unlocking Access - Inside
Coreless
Locking/Unlocking Access - Outside
Coreless
ANSI/BHMA Finish
Satin Aluminum, Clear Anodized

Description

Deadbolt Lock, 12/24V DC, Backset Not Applicable, Satin Aluminum Finish, For Use With Access Control, Standards UL Listed, ADA Compliant No
