  11. Mortise Bolt Lock, Mortise bolt, 10 in. D
Sdc Mortise Bolt Lock, Mortise bolt, 10 in. D 2090AU - main

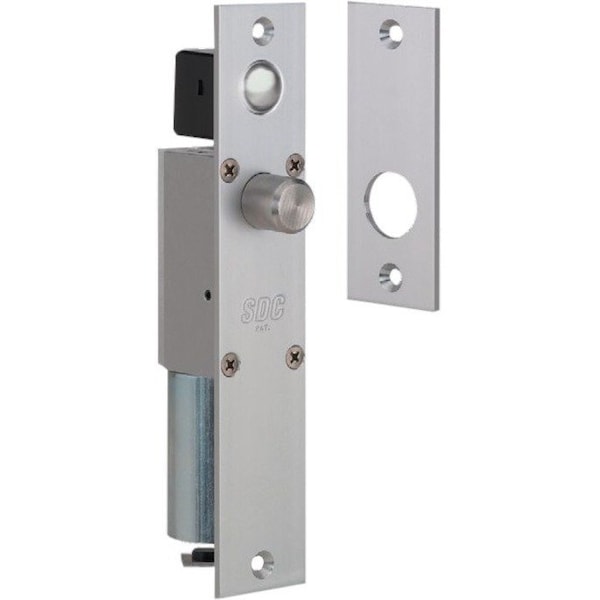

Mortise Bolt Lock, Mortise bolt, 10 in. D

  • Mfr # 2090AU

  • Zoro # G1877517

product price: $550.99
/ea
Free Shipping & Returns

Key Features

Finish
Satin Aluminum
Type
Mortise bolt
Input Voltage
12/24V DC
For Use With
Access Control
Includes
Mounting Hardware
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2090AU
Zoro #
G1877517
UPC #
-
Country of Origin
United States

Dimensions

Lock Body Width (In.)
1 1/2 in
Lock Body Depth (In.)
10 in
Lock Body Length (In.)
1 1/2 in
Case Width
1 1/2 in
Strike Plate Height
4 in
Strike Plate Width
1 1/2 in
Case Height
1 1/2 in
Case Depth
10 in
Strike Plate Thickness
1/8 in

Details

Item
Deadbolt Lock
Finish
Satin Aluminum
Type
Mortise bolt
Input Voltage
12/24V DC
For Use With
Access Control
Includes
Mounting Hardware
Opening Action
Electromagnetic or Manual
Features
Adjustable Auto Relock Switch, Failsecure, Heavy Duty Electric Bolt Lock, Narrow Mortise
Amp Draw @ 24V
500mA
Release Delay
Instantaneous
Standards
UL Listed
ADA Compliant
No
Locking/Unlocking Access - Inside
Coreless
ANSI/BHMA Finish
Satin Stainless Steel
Performance Grade
1
Product Type
Mortise Lockset
Includes Hardware
Hardware Included
Key Type
Not Keyed
Hand Orientation
Non-Handed
Ligature-Resistant
Not Ligature-Resistant
Lockset Type
Electrical
UL Fire Rating
UL10C
Includes Core
Core Not Included
Locking/Unlocking Access - Outside
Coreless
Voltage
12/24V DC

Description

Deadbolt Lock, 12/24V DC, Backset Not Applicable, Satin Aluminum Finish, For Use With Access Control, Standards UL Listed, ADA Compliant No
