Standard: 16"W x 22" L-Bar with 28"L x 18"W x 8"H Shrink Tunnel, 220V
Mfr # SS-1622MK-Combo
Zoro # G306581712
product price: $13,899.99
/ea
Item requires special delivery charges. A $500.00 per item surcharge will be applied.
Key Features
Sealing Capacity
10-15 Packages/Minute
Width
103
Voltage
220V/1Phase/15Amps
Length
32
Height
62
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
SS-1622MK-Combo
Zoro #
G306581712
UPC #
768563761119
Country of Origin
Taiwan, Province of China
Dimensions
Width
103
Length
32
Height
62
Details
Item
Shrink Wrapping Combo Units
Sealing Capacity
10-15 Packages/Minute
Voltage
220V/1Phase/15Amps
For Use With
Polyolefin
Application
Shrink wrapping
Description

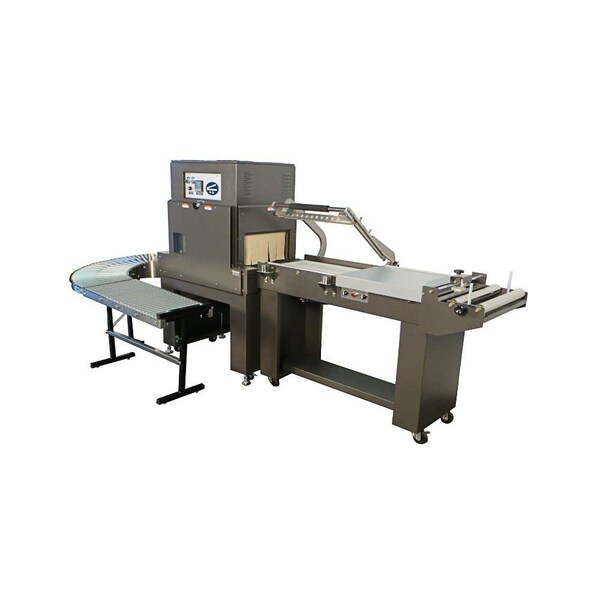

*Picture shows optional SS-180-24 gravity conveyor*
Our SS-1622MK-Combo L-bar sealer and shrink tunnel is the first fully adjustable combination L-bar sealer with attached shrink tunnel including the latest “Micro-Knife" technology. No more seal wires to replace! The L-bar sealer is mounted on linear bearings which can easily move forward or backward to center the product into the tunnel. The discharge conveyor also adjusts up or down. The shrink tunnel (18"W x 8"H x 28"L) features a fully re-circulating chamber with live roller rod conveyor. A convenience crank handle allows the operator to move the tunnel up or down to match sealer conveyor height. Unibody frame makes this unit easy to move around. Includes one 8ft. power cord. Capable of 10-15 packages/minutes.
FEATURES (L-BAR)
Micro-Knife band ribbon
Power belted discharge conveyor
Dual magnet clamping
Pin perforated hole punch
Variable dwell/seal time
Variable conveyor time
Stainless steel compensators
Seal size: 16"W x 22"L
Seal head return cylinder
Stainless steel film clamps
Locking casters
Linear bearings allow movement forward or backward
Easy load film cradle with brake
Recommended film: POF (PVC not recommended)
FEATURES (SHRINK TUNNEL)
Fully re-circulating air chamber
Live or dead roller rod conveyor
Digital temperature control
Adjustable air velocity control
State of the art AC variable speed drive
Chromed conveyor rollers and shafts (no rust)
Automatic tunnel cool down with shut off
Sealed bearings on drive and idler shafts
Chamber size: 18"W x 8"H x 28"L
Quietest tunnel on the market
Heats up to 300oF in less than 10 minutes
Thermal overload protection on all motors
Anti-jam safety feature on conveyor
Easily adjustable crank handle allows for tunnel height adjustment
Our SS-1622MK-Combo L-bar sealer and shrink tunnel is the first fully adjustable combination L-bar sealer with attached shrink tunnel including the latest “Micro-Knife" technology. No more seal wires to replace! The L-bar sealer is mounted on linear bearings which can easily move forward or backward to center the product into the tunnel. The discharge conveyor also adjusts up or down. The shrink tunnel (18"W x 8"H x 28"L) features a fully re-circulating chamber with live roller rod conveyor. A convenience crank handle allows the operator to move the tunnel up or down to match sealer conveyor height. Unibody frame makes this unit easy to move around. Includes one 8ft. power cord. Capable of 10-15 packages/minutes.
FEATURES (L-BAR)
Micro-Knife band ribbon
Power belted discharge conveyor
Dual magnet clamping
Pin perforated hole punch
Variable dwell/seal time
Variable conveyor time
Stainless steel compensators
Seal size: 16"W x 22"L
Seal head return cylinder
Stainless steel film clamps
Locking casters
Linear bearings allow movement forward or backward
Easy load film cradle with brake
Recommended film: POF (PVC not recommended)
FEATURES (SHRINK TUNNEL)
Fully re-circulating air chamber
Live or dead roller rod conveyor
Digital temperature control
Adjustable air velocity control
State of the art AC variable speed drive
Chromed conveyor rollers and shafts (no rust)
Automatic tunnel cool down with shut off
Sealed bearings on drive and idler shafts
Chamber size: 18"W x 8"H x 28"L
Quietest tunnel on the market
Heats up to 300oF in less than 10 minutes
Thermal overload protection on all motors
Anti-jam safety feature on conveyor
Easily adjustable crank handle allows for tunnel height adjustment
