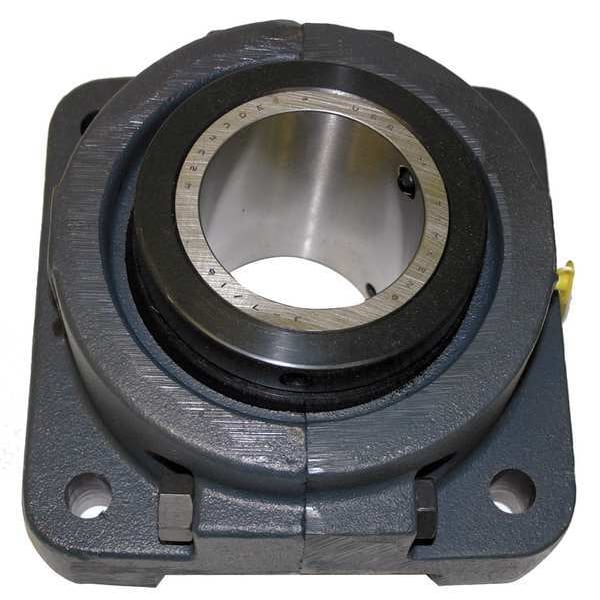

Flange Bearing, 4-Bolt, Tapered Roller, 2"
Mfr # RFB 200
Zoro # G8465161
product price: $797.99
/ea
Free Shipping & Returns
Key Features
Bearing Insert Type
Tapered Roller
Bore Dia.
2 in
Shaft Locking Type
Set Screws
Bearing Housing Material Type
Cast Iron
Bearing Insert Material
Alloy Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
RFB 200
Zoro #
G8465161
UPC #
-
Country of Origin
Multiple
Dimensions
Bore Dia.
2 in
Bolt Size
1/2 in
Overall Height
5 5/8 in
Dimension L
3 1/4 in
Overall Length
5 5/8 in
Dimension F
1/2 in
Dimension H
1 3/16 in
Dimension G
1 3/16 in
Dimension J
4 3/4 in
Dimension A
3 5/8 in
Dimension B
5 5/8 in
Dimension N
1 3/4 in
Dimension C
3 1/16 in
Dimension D
4 3/8 in
Dimension E
1/8 in
Dimension BC
6 3/16 in
Overall Width
3 5/8 in
Dimension M
4 3/4 in
Bolt Circle Diameter
6.187 in
Mounting Bolt Size
1/2 in
Flange Thickness
1 3/16 in
Mount Hole Center-to-Center Height
4 3/8 in
Inner Ring Width
3.25 in
Mount Hole Center-to-Center Length
4 3/8 in
Bore Diameter
2 in
Description
4 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Tapered Roller, Bore Diameter 2 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Square, Included Bearing RFB-200, Lubricant Material NLGI #2 Equivalent, Maximum Speed 2,500 RPM, Maximum Temperature 220 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Height 4 3/8 in, Number of Mount Holes 4, Overall Height 5 5/8 in
