  11. Ceiling Mount Sensor, Occupancy, 0-10V Dimming, Hard Wired, White, 2,463 sq ft, Fluorescent, Incandescent, LED

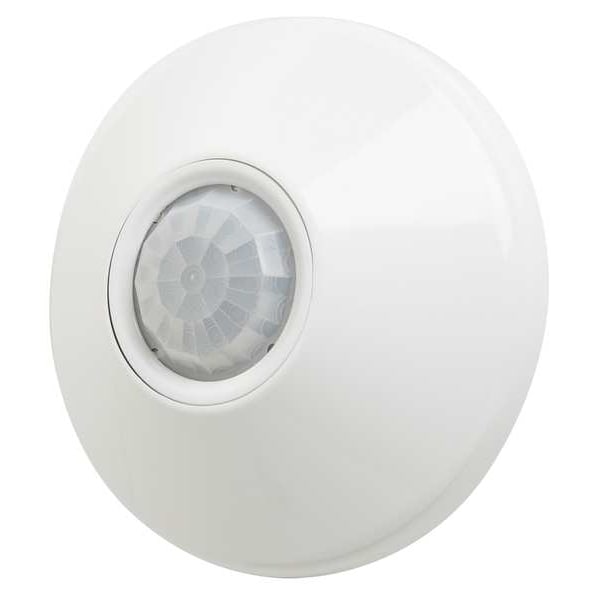

Sensorswitch Ceiling Mount Sensor, Occupancy, 0-10V Dimming, Hard Wired, White, 2,463 sq ft, Fluorescent, Incandescent, LED CM 10 - main

Ceiling Mount Sensor, Occupancy, 0-10V Dimming, Hard Wired, White, 2,463 sq ft, Fluorescent, Incandescent, LED

  • Mfr # CM 10

  • Zoro # G0882847

product price: $111.99
/ea
Free Shipping & Returns

Key Features

Sensing Technology
Passive Infrared (PIR)
Time Delay - Motion Sensor
30 sec to 20 min
Lighting Technology
Fluorescent, Incandescent, LED
Coverage Angle - Motion Sensor
360 Degrees
Sensor Type
Passive Infrared
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CM 10
Zoro #
G0882847
UPC #
745975808335
Country of Origin
Mexico

Dimensions

Maximum Mounting Height
15 ft
Minimum Mounting Height
7 ft
Overall Width
4.55 in
Overall Depth
1.55 in
Overall Diameter
4.5 in

Details

Sensing Technology
Passive Infrared (PIR)
Time Delay - Motion Sensor
30 sec to 20 min
Lighting Technology
Fluorescent, Incandescent, LED
Coverage Angle - Motion Sensor
360 Degrees
Sensor Type
Passive Infrared
Color
White
Max. Capacity @ 120VAC
Dependent on Control Unit Rating
Item
Occupancy Sensor
Standards
BAA, CA Title 24 Compliant, RoHS Compliant
Time Delay
Adaptive/Manual
For Use With
Fluorescent and Incandescent Lighting Loads
Viewing Angle
360 Degrees
Communication Method
Hard Wired
Includes
(2) Self Tapping Screw
Wall Plate
Not Included
Series
CM
Minimum Operating Temperature
14 Degrees F
Manufacturer Warranty
5 yr Limited
Time Delay Adjustment Method
Adaptive, Manual
Minimum Time Delay
30 sec
Maximum Time Delay
20 min
Load Rating @ 120V AC
Dependent on Control Unit Rating
Sensor Operation
Occupancy, 0-10V Dimming
Coverage Angle
360 Degrees
Maximum Coverage Area
2,463 sq ft
Coverage Type
Large Motion
Installation Location
Ceiling Mount
Maximum Operating Temperature
185 Degrees F
Environmental Listing
High Humidity
Finish
Gloss, Matte
Application Type
Automotive & Parking, Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Power & Gas, Residential, Retail, Roadways, Bridges & Tunnels, Sports and Recreation, Transportation, Warehouses
Voltage Rating
Low Voltage
Compliance Listing
BAA
Control Protocol
0-10V
Mounting Type
Surface
Operating Voltage
12 to 24V DC

Description

Occupancy Sensor, Sensing Technology Passive Infrared (PIR), Operating Voltage 12 to 24V DC, Maximum Coverage Area 2,463 sq ft, Maximum Mounting Height 15 ft, Load Rating @ 120V AC Dependent on Control Unit Rating, Communication Method Hard Wired, Color White, Includes (2) Self Tapping Screw, Sensor Operation Occupancy, Lighting Technology Fluorescent, Incandescent, LED, Installation Location Ceiling, Standards BAA, CA Title 24 Compliant, RoHS Compliant, Overall Diameter 4.5 in
