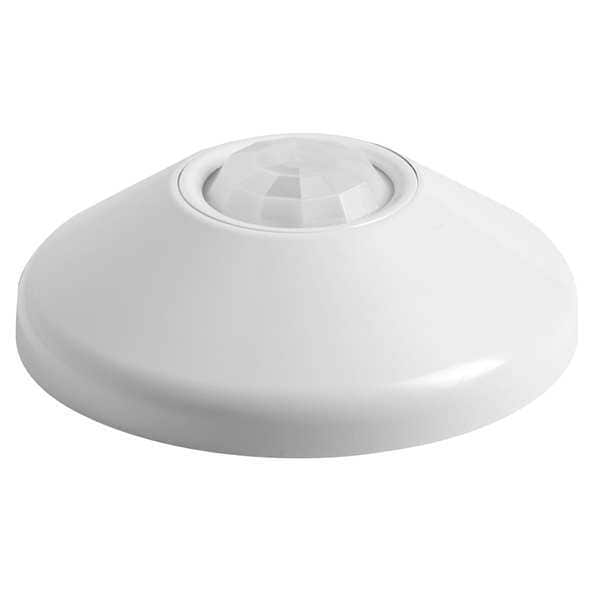

Sensorswitch Ceiling Mount Sensor, Occupancy, Photocell, Hard Wired, White, 500 sq ft, Fluorescent, Incandescent, LED CMR 9 P 347 - main

Ceiling Mount Sensor, Occupancy, Photocell, Hard Wired, White, 500 sq ft, Fluorescent, Incandescent, LED

  • Mfr # CMR 9 P 347

  • Zoro # G6009954

product price: $165.99
/ea
Free Shipping & Returns

Key Features

Sensing Technology
Passive Infrared (PIR)
Time Delay - Motion Sensor
30 sec to 20 min
Viewing Angle
360 Degrees
Watts @ 120V
800
Time Delay
Adaptive/Manual
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CMR 9 P 347
Zoro #
G6009954
UPC #
745975862405
Country of Origin
Mexico

Dimensions

Minimum Mounting Height
8 ft
Maximum Mounting Height
15 ft
Overall Depth
1.55 in
Overall Width
4.55 in

Details

Sensing Technology
Passive Infrared (PIR)
Time Delay - Motion Sensor
30 sec to 20 min
Viewing Angle
360 Degrees
Watts @ 120V
800
Time Delay
Adaptive/Manual
Standards
BAA, CA Title 24 Compliant, RoHS Compliant
Max. Capacity @ 120VAC
800W (Fluorescent, Incandescent)
Item
Occupancy Sensor
For Use With
Fluorescent and Incandescent Lighting Loads
Color
White
Watts @ 277V
1200
Lighting Technology
Fluorescent, Incandescent, LED
Max. Capacity @ 277VAC
1200W (Fluorescent, Incandescent)
Coverage Angle - Motion Sensor
360 Degrees
Sensor Type
Passive Infrared
Includes
(2) Self Tapping Screw
Communication Method
Hard Wired
Wall Plate
Not Included
Series
CMR
Maximum Coverage Area
500 sq ft
Maximum Time Delay
20 min
Load Rating @ 277V AC
1,200W
Maximum Operating Temperature
185 Degrees F
Minimum Time Delay
30 sec
Manufacturer Warranty
5 yr Limited
Coverage Type
Small Motion
Load Rating @ 120V AC
800W/6.67A, Incandescent
Sensor Operation
Occupancy, Photocell
Time Delay Adjustment Method
Adaptive, Manual
Coverage Angle
360 Degrees
Minimum Operating Temperature
14 Degrees F
Installation Location
Ceiling Mount
Load Rating @ 480V AC
80mA
Environmental Listing
High Humidity
Compliance Listing
BAA
Application Type
Automotive & Parking, Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Power & Gas, Residential, Retail, Roadways, Bridges & Tunnels, Sports and Recreation, Transportation, Warehouses
Finish
Matte
Voltage Rating
208, 347, 480
Control Protocol
0-10V
Mounting Type
Flush, Surface
Operating Voltage
347V AC

Description

Occupancy Sensor, Sensing Technology Passive Infrared (PIR), Operating Voltage 347V AC, Maximum Coverage Area 500 sq ft, Maximum Mounting Height 15 ft, Load Rating @ 120V AC 800W/6.67A (Incandescent), Communication Method Hard Wired, Color White, Includes (2) Self Tapping Screw, Sensor Operation Photocell, Occupancy, Lighting Technology Fluorescent, Incandescent, LED, Installation Location Ceiling, Standards BAA, CA Title 24 Compliant, RoHS Compliant, Overall Diameter Not Applicable
