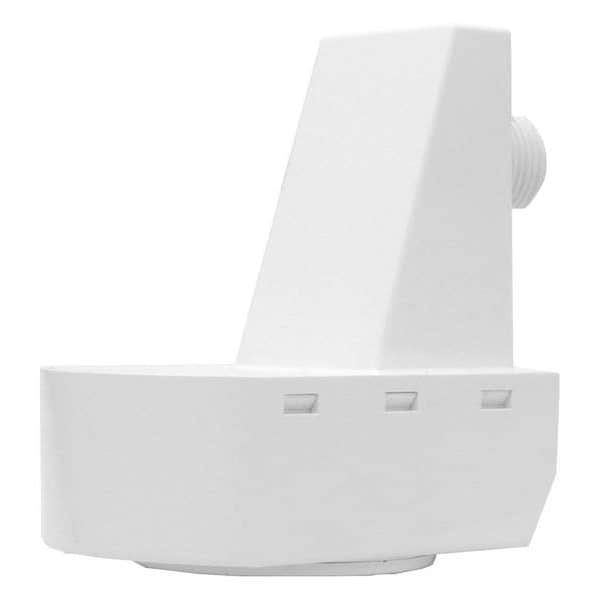

Sensorswitch Fixture Mount Sensor, Occupancy, Photocell, Hard Wired, White, 2,000 sq ft, Fluorescent, LED LSXR 610 - main

Fixture Mount Sensor, Occupancy, Photocell, Hard Wired, White, 2,000 sq ft, Fluorescent, LED

  • Mfr # LSXR 610

  • Zoro # G7567646

product price:  $52.15
/ea

Key Features

Installation Location
Fixture Mount
Lighting Technology
Fluorescent, LED
Sensing Technology
Passive Infrared (PIR)
Sensor Operation
Occupancy, Photocell
Load Rating @ 120V AC
800W, Fluorescent, LED
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LSXR 610
Zoro #
G7567646
UPC #
-
Country of Origin
Mexico

Dimensions

Minimum Mounting Height
7 ft
Maximum Mounting Height
45 ft
Fixture Length
4
Fixture Height
3.75
Fixture Width
2.5
Overall Width
2.5 in
Overall Depth
4 in
Overall Height
3.75 in

Details

Item
Occupancy Sensor
Installation Location
Fixture Mount
Lighting Technology
Fluorescent, LED
Sensing Technology
Passive Infrared (PIR)
Sensor Operation
Occupancy, Photocell
Load Rating @ 120V AC
800W, Fluorescent, LED
Communication Method
Hard Wired
Color
White
Operating Voltage
120 to 277V AC
Maximum Coverage Area
2,000 sq ft
Standards
CA Title 24 Compliant, RoHS Compliant, UL and cUL Listed
Coverage Angle - Motion Sensor
360 Degrees
Description/Special Features
Fixture Mount, Interchangeable Lens, Line Voltage, Passive Infrared
Includes
(2) Interchangeable Lenses
Compatible With
Fluorescent, LED, Induction Fixtures
For Use With
Fluorescent and LED
Max. Capacity @ 120VAC
800W (Fluorescent, Induction, LED)
Max. Capacity @ 277VAC
1200W (Fluorescent, Induction, LED)
Wall Plate
Not Included
Maximum Operating Temperature
140 Degrees F
Series
LSXR
Load Rating @ 277V AC
1,200W (Fluorescent, LED)
Manufacturer Warranty
5 yr Limited
Minimum Time Delay
30 sec
Minimum Operating Temperature
14 Degrees F
Coverage Type
Large Motion
Maximum Time Delay
30 min
Finish
Gloss
Environment
Indoor
Control
Daylight Sensor,Occupancy Sensor
Lens Material
Plastic
Compliance Listing
BAA
Batteries Included
No
Mounting Location
Fixture,Pole
Networkable Control
Daylight Sensor, Occupancy Sensor
Application Type
Automotive & Parking, Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Power & Gas, Residential, Retail, Roadways, Bridges & Tunnels, Sports and Recreation, Transportation, Warehouses
Hardware Included
Yes
Daylight Sensing
No
Environmental Listing
High Humidity
Control Protocol
0-10V
Contains Lithium Battery
No
Time Delay Adjustment Method
Adjustable
Time Delay
30 sec to 30 min

Description

Occupancy Sensor, Sensing Technology Passive Infrared (PIR), Operating Voltage 120 to 277V AC, Maximum Coverage Area 2,000 sq ft, Maximum Mounting Height 45 ft, Load Rating @ 120V AC 800W (Fluorescent, LED), Communication Method Hard Wired, Color White, Includes (2) Interchangeable Lenses, Sensor Operation Occupancy, Lighting Technology Fluorescent, LED, Installation Location Fixture, Standards CA Title 24 Compliant, RoHS Compliant, UL and cUL Listed, Overall Diameter Not Applicable
