  11. Motion Snsr, PIR, 120-277V AC, Wht

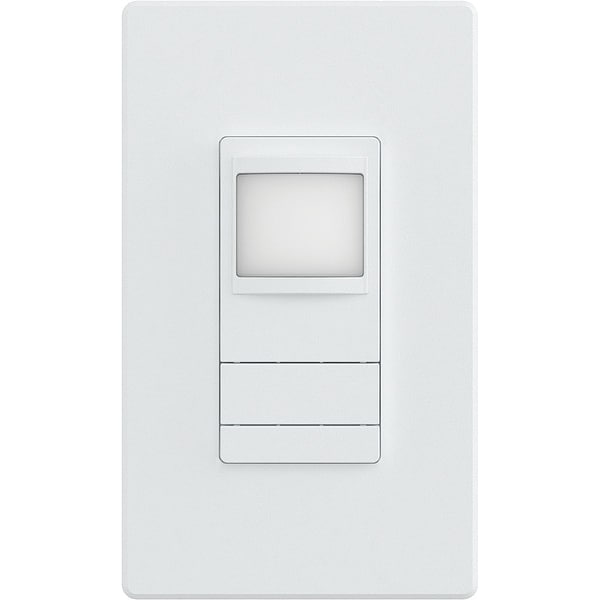

Sensorswitch Motion Snsr, PIR, 120-277V AC, Wht WSXA WH - main

Motion Snsr, PIR, 120-277V AC, Wht

  • Mfr # WSXA WH

  • Zoro # G108389820

product price: $42.89
/ea

Key Features

Color
White
Standards
BAA, CA Title 24 Compliant, cUL Listed, cULus Listed, RoHS Compliant
Operating Voltage - Motion Sensing and Dimming
120 to 277V AC
Coverage at Suggested Mounting Height
2,025 sq ft
Sensing Technology
Passive Infrared (PIR)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WSXA WH
Zoro #
G108389820
UPC #
00194994625902
Country of Origin
Mexico

Dimensions

Coverage at Suggested Mounting Height
2,025 sq ft
Suggested Mounting Height - Motion Sensor
36 ft
Overall Height
2.74 in
Overall Depth
1.63 in
Overall Width
1.63 in

Details

Item
Motion Sensor
Color
White
Standards
BAA, CA Title 24 Compliant, cUL Listed, cULus Listed, RoHS Compliant
Operating Voltage - Motion Sensing and Dimming
120 to 277V AC
Sensing Technology
Passive Infrared (PIR)
Communication Method - Motion Sensing and Dimming
Wired
Time Delay Adjustment Method - Motion Sensor
Adjustable
Item - Motion Sensing and Dimming
Occupancy Sensor
Communication Method
Hard Wired
Max. Capacity @ 120VAC
4.4A (Tungsten, Standard Ballast, Electronic Ballast), 800W (Tungsten, Standard Ballast, Electronic Ballast)
Max. Capacity @ 277VAC
1200W (Tungsten, Standard Ballast, Electronic Ballast), 4.3A (Tungsten, Standard Ballast, Electronic Ballast)
Use With - Motion Sensing and Dimming
0 to 10V DC Control
Voltage
120 to 277V AC
Color - Motion Sensing and Dimming
White
Description/Special Features
Commercial Indoor Spaces with Multiple Entryways that Require Small Motion Detection upto 20 ft, Cost-Effective Multi-Way (Mwo) Solution Allows you to Control Fixtures from upto 9 Different Locations in a Room, Protect the Device from Liquid Intrusion
Lighting Technology
Fluorescent, Incandescent, LED
Installation Location - Motion Sensor
Wall Switch Box
Time Delay - Motion Sensor
30 sec to 30 min
Coverage Type
Small Motion
Nightlight
No
Compatible with Series
0 to 10VDC Control
Horsepower Rating
1/4 hp
Rated Frequency
50/60 Hz
Sensor Operation
Occupancy
Maximum Operating Temperature
140 Degrees F
Minimum Time Delay
30 sec
Dimming Type
No Dimming
Fan Rated
Yes
Maximum Coverage Area
2,025 sq ft
Series
Sensor Switch
Dimming Method
0-10V
Manufacturer Warranty
5 yr
Number of Buttons
1
Maximum Time Delay
30 min
Maximum Detection Distance
36 ft
Installation Location
Wall
Includes Motion Sensor
Yes
Compatible with Brand
Acuity Brands Lighting
Number of Gangs
1
Neutral Required
Yes
Minimum Operating Temperature
32 Degrees F
Includes Dimming Switch
Dimming Switch Not Included
Load Rating @ 277V AC
1200W, 4.3A (Tungsten, Standard Ballast, Electronic Ballast)
Includes Wall Plate
Wall Plate Included
Load Rating @ 120V AC
800W, 6.7A (Tungsten, Standard Ballast, Electronic Ballast)
Operating Voltage
120 to 277V AC

Description

Motion Sensor, Number of Buttons 1, Sensor Operation Occupancy, Compatible with Series 0 to 10VDC Control, Lighting Technology Fluorescent, Incandescent, LED, Operating Voltage 120 to 277V AC, Sensing Technology Passive Infrared (PIR), Load Rating @ 120V AC 800W, 6.7A (Tungsten, Standard Ballast, Electronic Ballast), Communication Method Hard Wired, Maximum Coverage Area 2,025 sq ft, Neutral Required Yes, Color White, Nightlight No, Dimming Method 0-10V, Dimming Type No Dimming
