  11. Timer Switch, 60 Min, Ivory

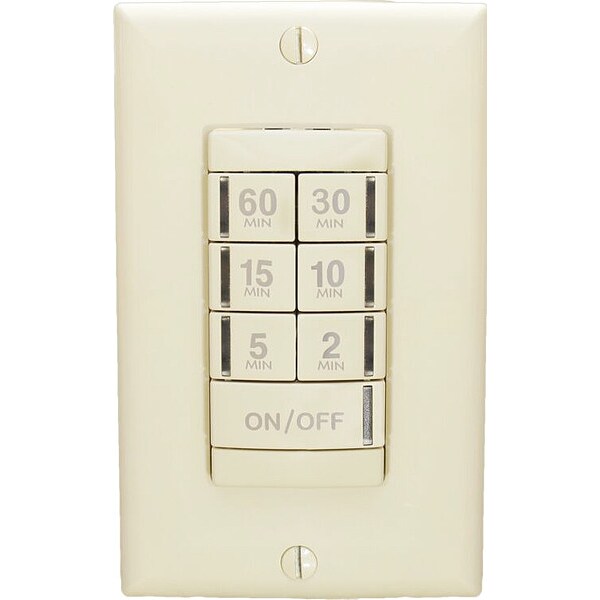

Sensorswitch Timer Switch, 60 Min, Ivory PTS 60 IV - main

Timer Switch, 60 Min, Ivory

  • Mfr # PTS 60 IV

  • Zoro # G5915131

product price: $75.69
/ea
Free Shipping & Returns

Key Features

Voltage
120/277V AC
Max. Time Setting
60 min
Min. Time Setting
2 min
Color
Ivory
Watts
800/1200
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PTS 60 IV
Zoro #
G5915131
UPC #
784231531563
Country of Origin
Mexico

Dimensions

Width
1 13/16 in
Depth
1 1/2 in
Overall Height
4 3/16 in
Overall Width
1 13/16 in
Overall Depth
1 3/8 in

Details

Item
Wall Switch Timer
Voltage
120/277V AC
Max. Time Setting
60 min
Min. Time Setting
2 min
Color
Ivory
Watts
800/1200
Amps
5
Number of Poles
1
Switch Type
1-Pole
HP @ 120V
1/4 hp
HP @ 240V
1/4 hp
Standards
cUL, UL Listed
Product Type
Wall Switch Timers
Features
Fixed or Adjustable Preset Times, LED Indicator, Interchangeable Hot and Load Wires, No Minimum Load Requirements, No Neutral Required, Push-Button Programmable, Self-Contained Relay, Self-Grounding Mounting Strap
Number of Gangs
1
Series
PTS
Contact Form
SPST-NO
Application
Lighting
Control Device Type
On/Off Switch
Environmental Listing
High Humidity
Voltage Rating
120, 277
Application Type
Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Retail, Sports and Recreation, Warehouses
Regulatory Listing
cUL, UL
Finish
Gloss
Mounting Type
Surface
Wattage - Maximum
1,200 W
Body Color
Ivory
Compatible Lighting
LED
Horsepower @ 240V - Maximum
1/4 hp
Mounting Style
Surface
Includes Hold
No Hold Included
Time Setting - Minimum
2 min
Display Type
Digital
Time Setting - Maximum
1 hr
Includes Wall Plate
Wall Plate Included
Current Rating - Maximum
4.3 A
Horsepower @ 120V - Maximum
1/4 hp
AC Voltage Rating
120/277V AC
Switch Style
1-Pole

Description

Wall Switch Timer, Min. Time Setting 2 min, Max. Time Setting 60 min, Voltage 120/277V AC, Watts 800/1200, Amps 5, 1-Pole, HP @ 120V 1/4 hp, HP @ 240V 1/4 hp, Color Ivory, Width 1 13/16 in, Depth 1 1/2 in, Number of Gangs 1, Features Fixed or Adjustable Preset Times, LED Indicator, Interchangeable Hot and Load Wires, No Minimum Load Requirements, No Neutral Required, Push-Button Programmable, Self-Contained Relay, Self-Grounding Mounting Strap, Standards cUL, UL Listed
