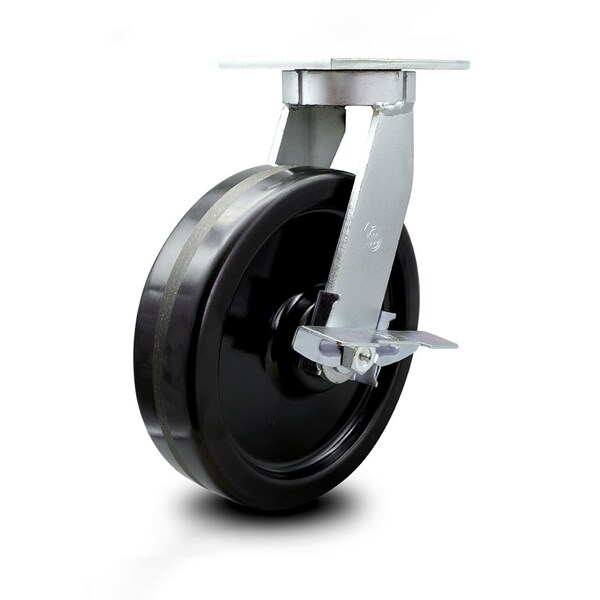

12 Inch Extra Heavy Duty Phenolic Wheel Swivel Caster with Brake and Swivel Lock
Mfr # SCC-KP92S1230-PHR-SLB-BSL
Zoro # G505437346
product price: $416.99
/ea
Free Shipping & Returns
Key Features
Finish
Bright Zinc Plated Finish
Mounting Height
15-1/2"
Series
Series #92
Material
Phenolic
Durometer
90D
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
SCC-KP92S1230-PHR-SLB-BSL
Zoro #
G505437346
UPC #
670533886091
Country of Origin
United States
Dimensions
Mounting Height
15-1/2"
Wheel Dia.
12
Plate Size
5-1/4" x 7-1/4"
Wheel Width
3
Size
12" x 3"
Bolt Size
1/2" (hardware not included)
Details
Finish
Bright Zinc Plated Finish
Series
Series #92
Material
Phenolic
Durometer
90D
Capacity (Lb.)
3500
Caster Mounting Type
Top Plate
Type
Swivel caster w/side lock brake & bolt on swivel lock
Caster Swivel Lock Type
Side lock brake & Bolt on swivel lock
Caster Temp. Range
-50 degrees F to 250 degrees F
Plate Caster Bolt Hole Pattern
3-3/8" x 5-1/4" to 4-1/8" x 6-1/8"
Features
Side lock brake & Bolt on swivel lock
Bearing Type
Roller Bearing
Description
Listing is for one (1) Service Caster Series #92 swivel caster with a side lock brake, a bolt on swivel lock, and a 12" diameter, 3" wide black phenolic wheel. Supports 3500 pounds (lbs) per caster.When searching for a reliable and durable solution for extra heavy duty projects, consider Service Caster’s Series 92 top plate phenolic casters. The Service Caster Series #92 is ideal for material handling, carts, equipment, and shop projects. The phenolic wheels roll easier and quieter than comparable steel wheels, and are highly resistant to impact damage, providing protection for floors in commercial and industrial settings. Additionally, they are resistant to water, oil, grease, and are non-metallic, providing spark proof protection. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series 92 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 1⁄2” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series #92 top plate casters are finely crafted with zinc plating, grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 92, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
