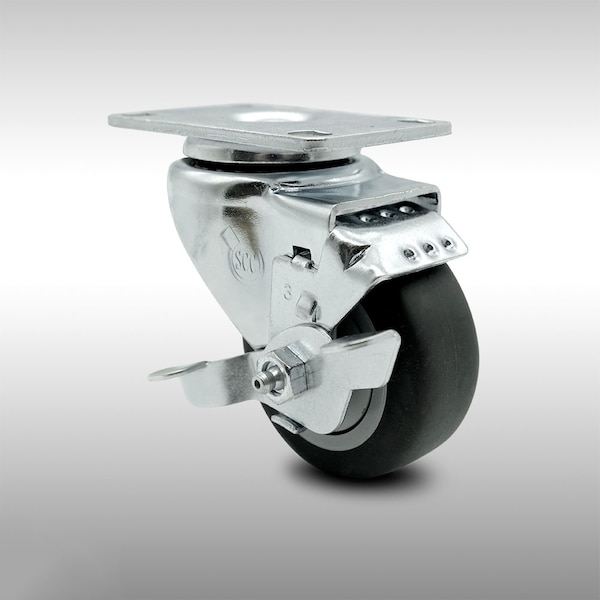

3.5 Inch SS Thermoplastic Rubber Swivel Top Plate Caster with Brake SCC

  • Mfr # SCC-SS20S3514-TPRB-TLB

  • Zoro # G605431022


product price:  $59.39
/ea

Key Features

Mounting Height
4-5/8"
Plate Caster Bolt Hole Pattern
1-3/4" x 2-7/8" to 3"
Wheel Width
1.25
Caster Mounting Type
Top Plate
Series
Series #20
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SCC-SS20S3514-TPRB-TLB
Zoro #
G605431022
UPC #
670533928913
Country of Origin
United States

Dimensions

Mounting Height
4-5/8"
Wheel Width
1.25
Wheel Dia.
3.5
Plate Size
2-1/2" x 3-5/8"
Bolt Size
5/16" (hardware not included)
Size
3-1/2" x 1-1/4"

Details

Type
Swivel caster w/top lock brake
Plate Caster Bolt Hole Pattern
1-3/4" x 2-7/8" to 3"
Caster Mounting Type
Top Plate
Series
Series #20
Material
Thermoplastic Rubber
Features
Top lock brake
Capacity (Lb.)
230
Caster Temp. Range
-20 degrees F to 180 degrees F
Finish
Polished stainless steel
Caster Swivel Lock Type
Top lock brake
Durometer
75A
Bearing Type
Precision Ball Bearing

Description

Listing is for one (1) Service Caster Series #20 stainless steel swivel caster with a 3-1/2" diameter by 1-1/4" wide thermoplastic rubber wheel and a top locking brake capable of supporting 230 lbs./caster.When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 stainless steel thermoplastic rubber casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The soft, quiet and non-marking thermoplastic rubber wheels perform especially well on hard surfaces such as concrete, tile, and wood. They are resistant to water, oil, and grease and will keep you safely moving forward. In contrast to the zinc plated caster, the luxuriously polished stainless steel finish resists rust and corrosion in indoor or outdoor applications where moisture is a factor. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
