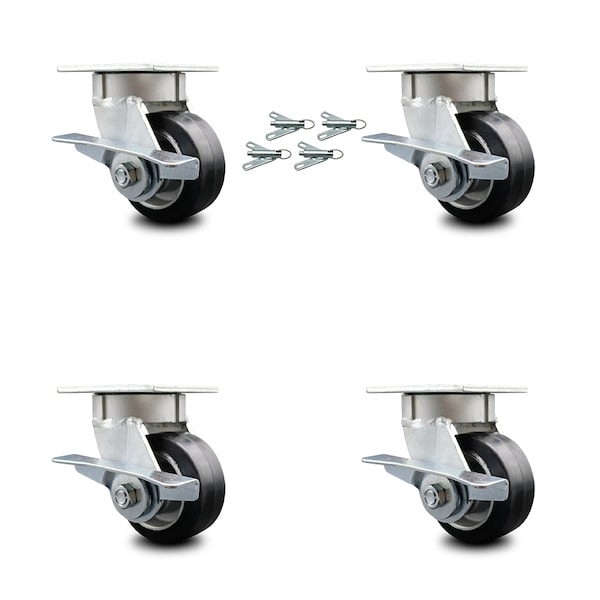

4 Inch Kingpinless Rubber on Aluminum Wheel Caster Set Brake and Swivel Lock SCC
Mfr # SCC-KP30S420-RAR-SLB-BSL-4
Zoro # G005437846
product price: $582.99
/ea
Free Shipping & Returns
Key Features
Durometer
80A
Caster Mounting Type
Top Plate
Caster Temp. Range
-40 degrees F to 160 degrees F
Mounting Height
5-5/8"
Caster Swivel Lock Type
4 Top Lock Brakes & Bolt on Swivel Locks
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
SCC-KP30S420-RAR-SLB-BSL-4
Zoro #
G005437846
UPC #
011586555259
Country of Origin
United States
Dimensions
Mounting Height
5-5/8"
Wheel Dia.
4
Plate Size
4" x 4-1/2"
Wheel Width
2
Bolt Size
3/8" (hardware not included)
Size
4" x 2"
Details
Durometer
80A
Caster Mounting Type
Top Plate
Caster Temp. Range
-40 degrees F to 160 degrees F
Caster Swivel Lock Type
4 Top Lock Brakes & Bolt on Swivel Locks
Plate Caster Bolt Hole Pattern
2-5/8" x 3-5/8" to 3" x 3"
Finish
Bright Zinc Plated Finish
Capacity (Lb.)
1600
Material
Rubber on Aluminum
Series
Series#KP30
Type
(4) Swivel caster w/side lock brake & bolt on swivel lock
Bearing Type
Roller Bearing
Description
Listing is for a set of four (4) Service Caster Series #KP30 swivel casters with 4" diameter by 2" wide rubber on aluminum wheels with side lock brakes and bolt on swivel locks capable of supporting a total weight of 1,600 lbs. (400 lbs. per caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster Series KP30 rubber on aluminum wheel casters. The Service Caster Series KP30 is ideal for material handling, carts, equipment, and shop projects. The rubber tread performs especially well on hard surfaces such as concrete, tile, and wood, while the aluminum core wheel stands up to heavier loads with a stable and secure roll. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series KP30 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 3/8” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series KP30 casters are finely crafted with grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series KP30, keeping you moving forward.
