5 Inch 316SS High Temp Glass Filled Nylon Top Plate Caster Set Total Lock Brake
Mfr # SCC-SS316TTL20S514-GFNSHT-4
Zoro # G905432521
product price: $280.99
/ea
Free Shipping & Returns
Key Features
Plate Caster Bolt Hole Pattern
1-3/4" x 2-7/8" to 3"
Mounting Height
6-1/8"
Caster Temp. Range
-45 degrees F to 550 degrees F
Caster Swivel Lock Type
Total lock brake
Wheel Width
1.25
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
SCC-SS316TTL20S514-GFNSHT-4
Zoro #
G905432521
UPC #
11586614147
Country of Origin
United States
Dimensions
Mounting Height
6-1/8"
Wheel Width
1.25
Wheel Dia.
5
Plate Size
2-1/2" x 3-5/8"
Size
5" x 1-1/4"
Bolt Size
5/16" (hardware not included)
Details
Plate Caster Bolt Hole Pattern
1-3/4" x 2-7/8" to 3"
Caster Temp. Range
-45 degrees F to 550 degrees F
Caster Swivel Lock Type
Total lock brake
Finish
316 Polished Stainless Steel
Features
Total lock brake
Caster Mounting Type
Top Plate
Durometer
85D
Capacity (Lb.)
1200
Series
Series #20
Material
Glass Filled Nylon
Type
(4) swivel casters w/ total lock brakes
Bearing Type
Plain Bore
Description

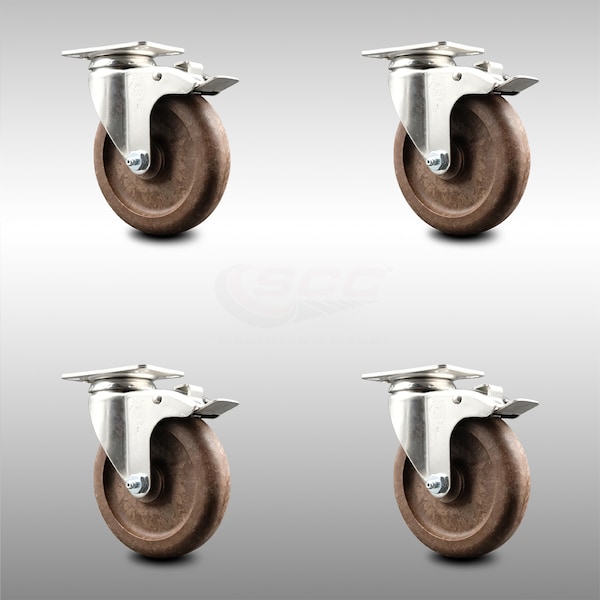

Listing is for a set of four (4) Service Caster Series #20 316 stainless steel swivel casters, four (4) swivel casters with total lock brakes, 5” diameter by 1-1/4” wide brown glass filled nylon wheels. Supports a total weight of 1,200lbs (300lbs/per caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster’s 316 stainless steel glass filled nylon casters. SS316 casters are ideal for light and medium duty material handling, carts, equipment, and shop projects. Built with 316 stainless steel, which contains additional molybdenum and nickel content, making it more corrosion resistant than standard 304 stainless steel. The glass filled nylon wheels provide very low rolling resistance, show a high resistance to many aggressive substances, will not flat spot, and under normal operating conditions are maintenance free. Resistant to most chemical and oils, these glass filled nylon wheels will keep you safely moving forward. Mounting options include top plate, bolt hole, expanding stem and standard and metric threaded stem sizes.
